Scanstrut Roam Series Quick Connect Hot/Cold Water Outlet
DESCRIPTION
DESCRIPTION

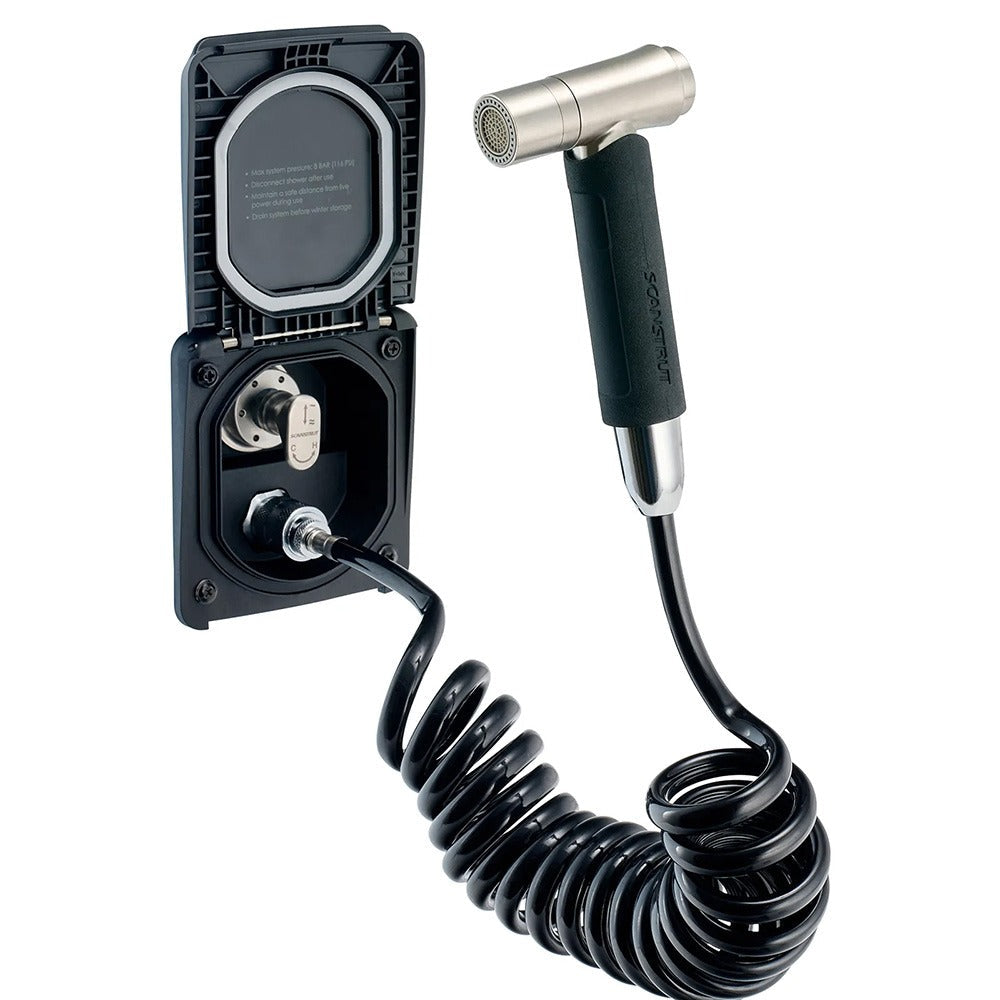

Roam Series Quick Connect Hot/Cold Water Outlet
The Roam Series Quick Connect Hot/Cold Water Outlet is perfect for grabbing a hot shower, rinsing off gear, surfboards, pets, and more! Adding real comfort and convenience to life on the road.
The high-pressure ready outlet delivers powerful water flow wherever you need it. Supplied with a 3m (10ft) coiled hose and a multi-pattern stainless steel shower/sprayer head with a rubber grip to protect your hand while holding.
The satin-brushed 316 stainless steel mixer tap gives you smooth, easy control of both water temperature and flow, so you can dial in the perfect shower or rinse every time.
A cleverly designed stainless steel link pipe allows for a shallow 70mm install depth and flexible placement in tight spaces, making new installations quick and versatile.
Dual inlets handle hot and cold feeds with M10x1.0 hose threads (monobloc connections), while the nickel-plated brass coupling with a self-sealing valve ensures a secure, long-lasting connection.
Engineered with Scanstrut marine-grade innovation, this outlet is marine-tested for UV resistance and fully waterproof (IP68/IP69K) and features 316 stainless steel hardware for unmatched durability in any environment.
The Roam Series ensures a clean, uniform look across all your exterior connections water, gas, power, and more - giving your van or RV a uniform, adventure-ready finish.
Features:
- Waterproof: IP68 / IP69K
- Ultra-shallow design – most compact mixer available
- Satin-brushed 316 stainless steel mixer
- Stainless steel link pipe
- Dual inlets for hot and cold feeds (M10x1.0 hose threads)
- Easy-to-use mixer tap
- Includes 3M (10ft) hose with rubber grip
- Nickel-plated brass coupling with self-sealing valve
- Max pressure: 115 PSI (8 BAR)
- Hose net storage bag included
- Drinking water safe NSF/ANSI 61 and WRAS-approved materials
- Easy to install
- Supplied with 3m (10ft) Coiled Hose - Multi-Pattern Stainless Steel Shower/Sprayer Head.
- Sprayer Type - Full stainless-steel construction, locking flow switch, multi-adjustable spray pattern jet or shower.
- Includes mounting foam gasket
- Fully sprung lid with 90° holding bump feature
- Smallest in class
- Single hole saw size across range – 95mm (3-3/4”)
Mfr. Part # SC-R-W3
FEATURES
FEATURES
- Waterproof: IP68 / IP69K
- Ultra-shallow design – most compact mixer available
- Satin-brushed 316 stainless steel mixer
- Stainless steel link pipe
- Dual inlets for hot and cold feeds (M10x1.0 hose threads)
- Easy-to-use mixer tap
- Includes 3M (10ft) hose with rubber grip
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Specification | Value |
|---|---|
| Manufacturer | Scanstrut |
| Manufacturer part number | SC-R-W3 |
| Waterproof | IP68 / IP69K |
| Max pressure | 115 PSI (8 BAR) |
| Supplier technical detail | Supplied with a 3m (10ft) coiled hose and a multi-pattern stainless steel shower/sprayer head with a rubber grip to protect your hand while holding. |
| Supplier technical detail | The satin-brushed 316 stainless steel mixer tap gives you smooth, easy control of both water temperature and flow, so you can dial in the perfect shower or rinse every time. |
| Supplier technical detail | A cleverly designed stainless steel link pipe allows for a shallow 70mm install depth and flexible placement in tight spaces, making new installations quick and versatile. |
| Supplier technical detail | Engineered with Scanstrut marine-grade innovation, this outlet is marine-tested for UV resistance and fully waterproof (IP68/IP69K) and features 316 stainless steel hardware for unmatched durability in any environment. |
| Supplier material detail | Satin-brushed 316 stainless steel mixer |
| Supplier technical detail | Satin-brushed 316 stainless steel mixer |
| Supplier material detail | Stainless steel link pipe |
| Supplier technical detail | Stainless steel link pipe |
| Supplier application or construction detail | Includes 3M (10ft) hose with rubber grip |
| Supplier technical detail | Includes 3M (10ft) hose with rubber grip |
| Supplier technical detail | Max pressure: 115 PSI (8 BAR) |
| Supplier material detail | Supplied with 3m (10ft) Coiled Hose - Multi-Pattern Stainless Steel Shower/Sprayer Head. |
| Supplier technical detail | Supplied with 3m (10ft) Coiled Hose - Multi-Pattern Stainless Steel Shower/Sprayer Head. |
| Supplier technical detail | Sprayer Type - Full stainless-steel construction, locking flow switch, multi-adjustable spray pattern jet or shower. |
| Supplier application or construction detail | Includes mounting foam gasket |
| Supplier technical detail | Includes mounting foam gasket |
| Supplier technical detail | Single hole saw size across range – 95mm (3-3/4”) |
