Sta-Lok Standing Rigging - Swageless Stud (Right Hand) - For Wire: 6.0 mm & Hole: 7/16 in (11.11 mm) (076-06)
SKU:
STA-076-06
|
Manuf. Code:
076-06
18% off
Unit price
/
Unavailable
Sta-Lok Standing Rigging - Swageless Stud (Right Hand) - For Wire: 6.0 mm & Hole: 7/16 in (11.11 mm) (076-06) is backordered and will ship as soon as it is back in stock.
You Save $21 This Week!
Knowledgeable STAFF
Sta-Lok Standing Rigging - Swageless Stud (Right Hand) - For Wire: ...
Unit price
/
Unavailable
Description
Description

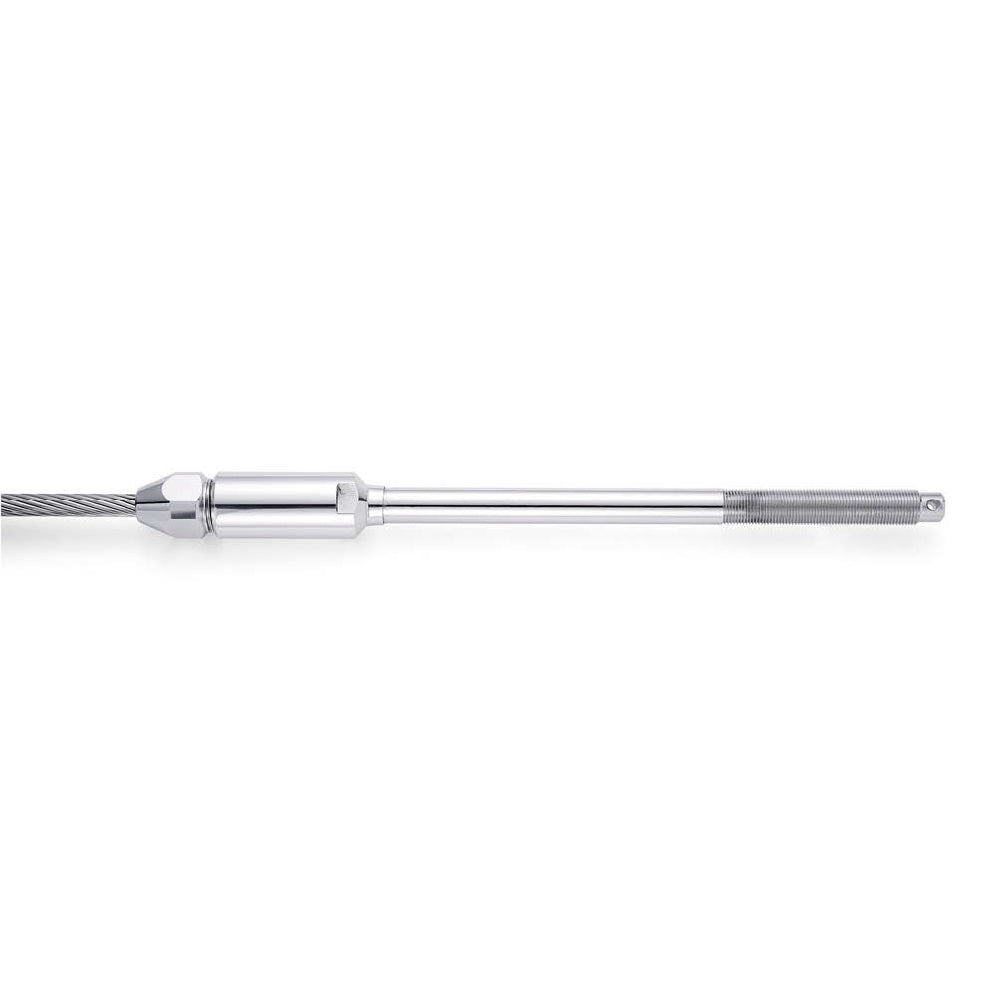

Sta-Lok Self Fit Terminal #076-06 is a reusable, swageless terminal for Ø6 mm wire rope. Made from high-grade stainless steel, it's ideal for repairs or installations without needing a swaging machine. Reliable, secure, and easy to install with basic tools.
Our Part # STA-076-06| Sta-Lok Part # 076-06
Features
Features
Features:
- Enables replacement of swages without having to replace the wire rope.
- Only basic hand tools required.
- Quick and easy to install.
- No pre-measurement needed.
- Guaranteed stronger than wire rope.
- Manufactured from high specification 316 stainless steel.
- For right hand and left hand lay wire rope.
- Packed for 1x19 wire as standard.
- Different wedges are available to terminate 7 strand & compacted wire ropes.
- Supplied with split pin.
- Right hand thread only.

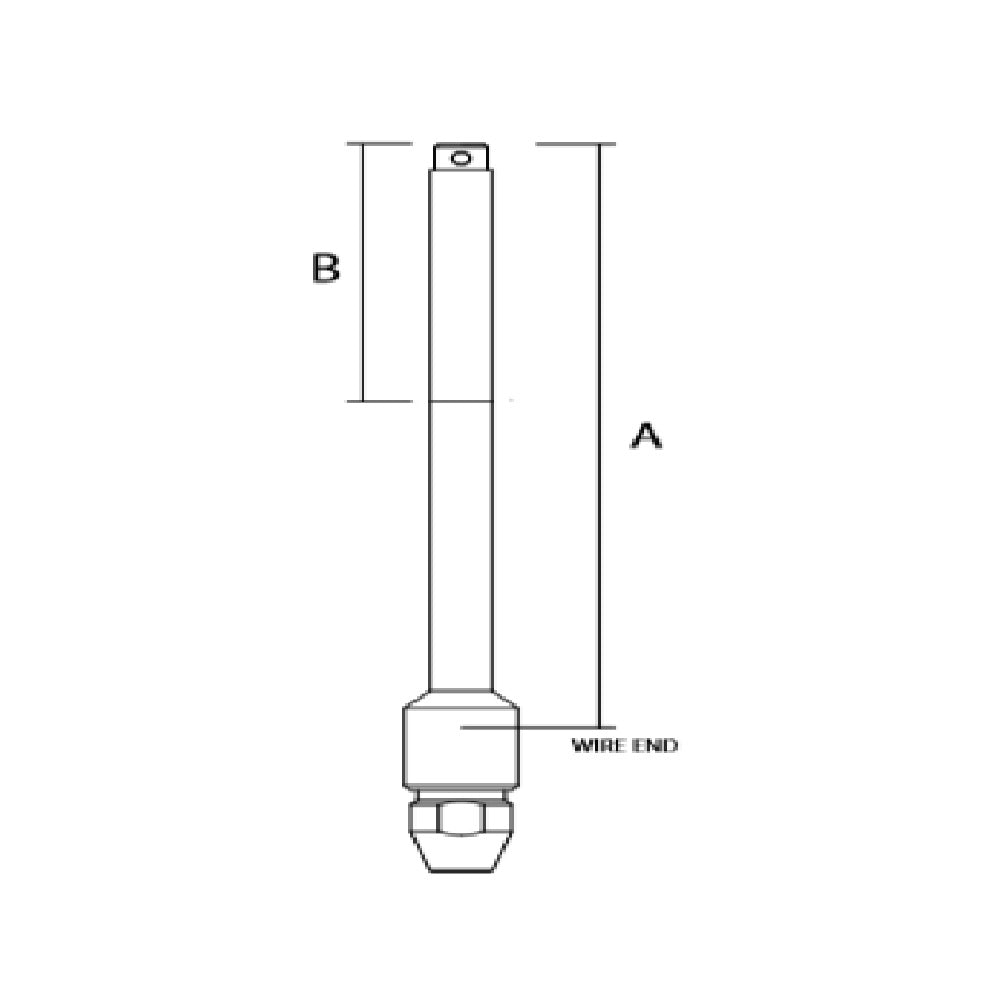

Technical Information
Technical Information
Wire: 6 mm
A: 188.5 mm / 7.422 in
B: 76.2 mm / 3 in
Thread: 7/16
Weight: 0.22 kg / 0.485 lb
