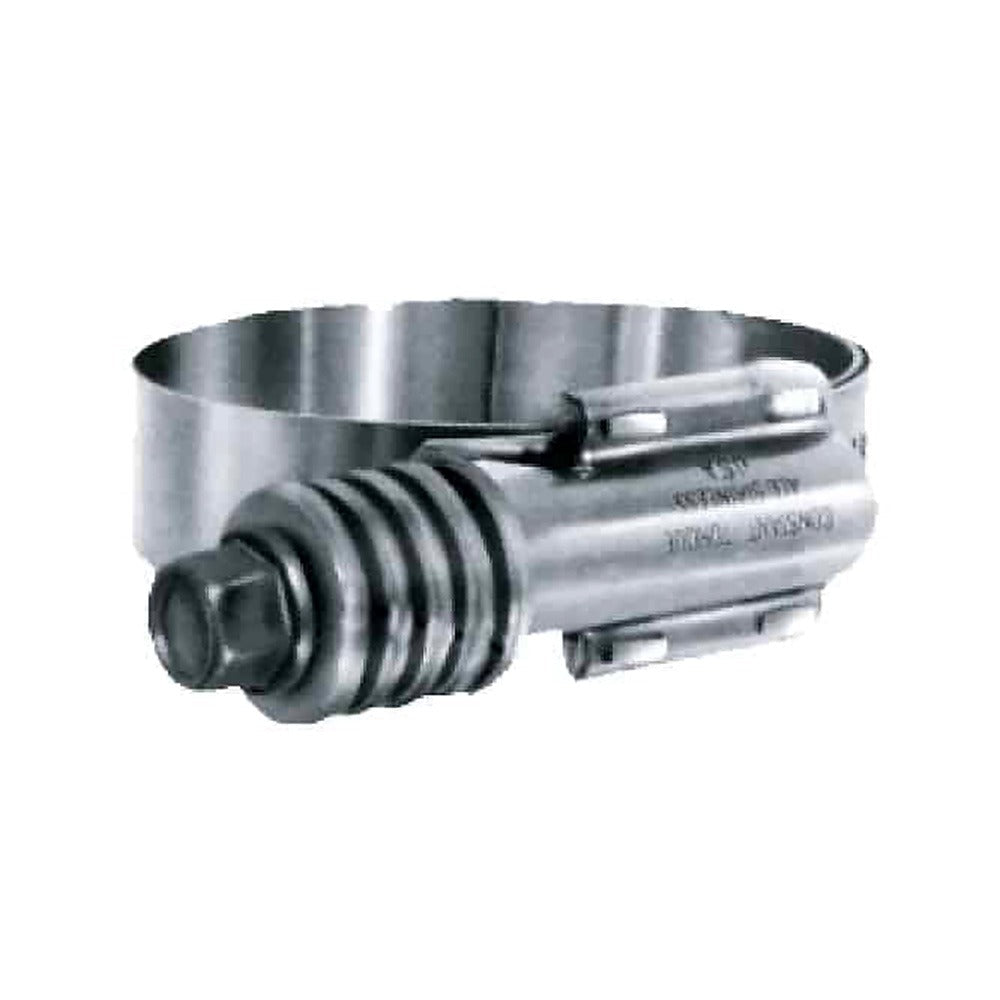

Trident Marine Stainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 2-3/8" to 3", Hose O.D. - 2.75" to 3.625"

SKU: trm-730-2120  |  Manuf. Code: 730-2120
$20.90 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Stainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 2-3/8" to 3", Hose O.D. - 2.75" to 3.625"

Virtually all rubber hose compresses (cold flow) after installation of clamping device, resulting in an almost immediate torque loss that can exceed 80% of installation torque. Similarly, virtually all metal connections expand as a system heats up, and then contracts as the system cools. Conventional worm gear, T-bolt, and other clamps are passive, in that expansion or contraction of components cannot be compensated for with out re-tightening or loosening the clamps. This clamping system is an “active” clamping mechanism, which monitors and then compensates for the changes by actually changing diameter through a unique worm gear Belleville assembly.

Specifications:

  • Hose I.D. - 2-3/8" to 3", Hose O.D. - 2.75" to 3.625"
  • Recommend max. torque - smaller id. sizes up to 730-3000 - 30 to 70 in.-lbs, larger id. sizes above 730-3000 - 50 to 120 in.-lbs

Construction:

  • Band & Housing: 304 Stainless Steel 5/8” Wide Band
  • Bellville Spring Washers & Screw: 401 Stainless Steel

Mfr. Part # 730-2120

FEATURES

  • Hose I.D. - 2-3/8" to 3", Hose O.D. - 2.75" to 3.625"
  • Recommend max. torque - smaller id. sizes up to 730-3000 - 30 to 70 in.-lbs, larger id. sizes above 730-3000 - 50 to 120 in.-lbs
  • Band & Housing: 304 Stainless Steel 5/8” Wide Band
  • Bellville Spring Washers & Screw: 401 Stainless Steel

TECHNICAL INFORMATION

SpecificationValue
ManufacturerTrident Marine
Manufacturer part number730-2120
Band & Housing304 Stainless Steel 5/8” Wide Band
Bellville Spring Washers & Screw401 Stainless Steel
Supplier material detailStainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 2-3/8" to 3", Hose O.D. - 2.75" to 3.625"
Supplier technical detailStainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 2-3/8" to 3", Hose O.D. - 2.75" to 3.625"
Supplier technical detailHose I.D. - 2-3/8" to 3", Hose O.D. - 2.75" to 3.625"
Supplier material detailBand & Housing: 304 Stainless Steel 5/8” Wide Band
Supplier technical detailBand & Housing: 304 Stainless Steel 5/8” Wide Band
Supplier material detailBellville Spring Washers & Screw: 401 Stainless Steel
Supplier technical detailBellville Spring Washers & Screw: 401 Stainless Steel
Material stated in product nameStainless Steel
Size or rating stated in product name5/8"
Size or rating stated in product name2-3/8"
Size or rating stated in product name3"
Size or rating stated in product name2.75"
Size or rating stated in product name3.625"
Product-name configuration2-3/8" to 3", Hose O.D.
Product-name configuration2.75" to 3.625"
