Tylaska Bail Swivel - T5 - Clevis/Clevis (TY1205-CC)
SKU:
TYL-TY1205-CC
|
Manuf. Code:
TY1205-CC
25% off
Unit price
/
Unavailable
Tylaska Bail Swivel - T5 - Clevis/Clevis (TY1205-CC) is backordered and will ship as soon as it is back in stock.
You Save $40 This Week!
Knowledgeable STAFF
Tylaska Bail Swivel - T5 - Clevis/Clevis (TY1205-CC)
Unit price
/
Unavailable
Description
Description
Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.
Our Part # TYL-TY1205-CC | Tylaska Part # TY1205-CC
Technical Information
Technical Information

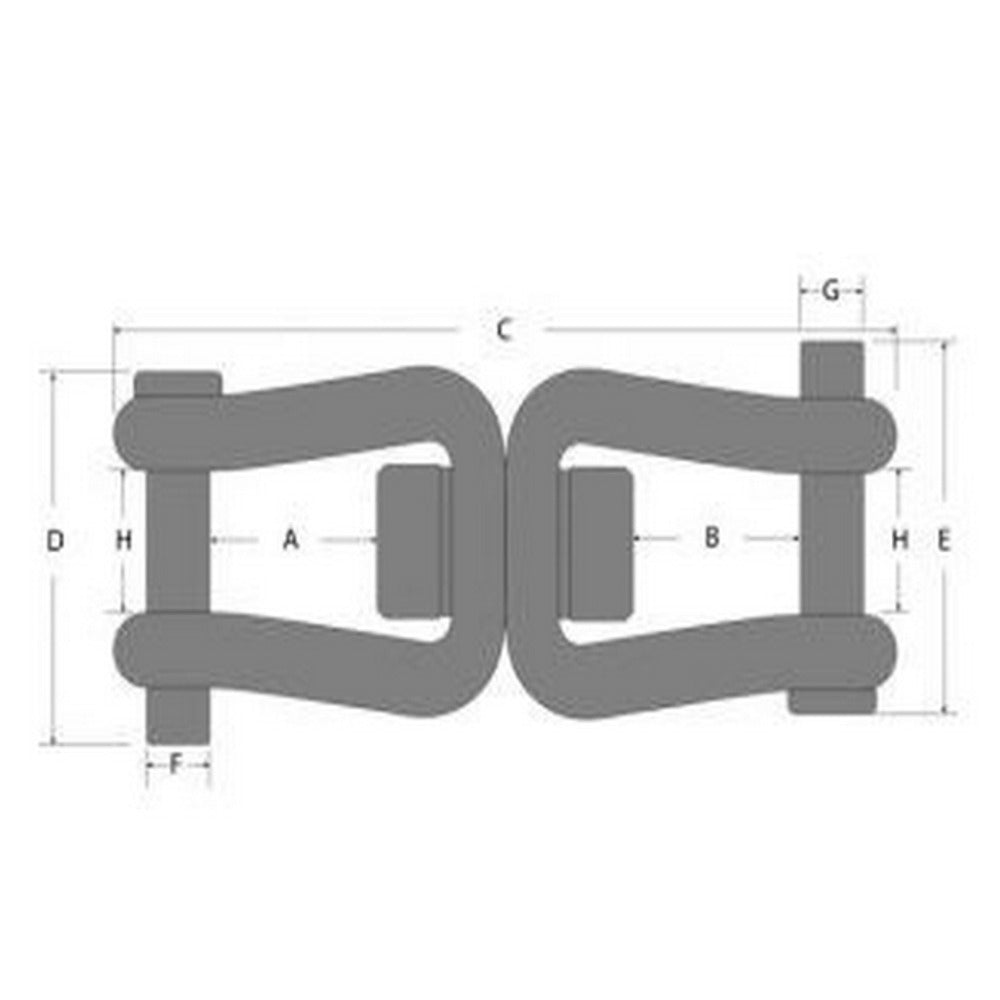

| Description | Imperial | Metric |
|---|---|---|
| A | 5/8 in. | 16.30 mm. |
| B | 5/8 in. | 16.30 mm. |
| C | 2 3/4 in. | 70.40 mm. |
| D | 1 5/16 in. | 33.00 mm. |
| E | 1 5/16 in. | 33.00 mm. |
| F | 1/4 in. | 6.10 mm. |
| G | 1/4 in. | 6.10 mm. |
| H | 9/16 in. | 14.00 mm. |
| Working Load Limit | 2500.00 lb. | 1130.00 kg. |
| Breaking Strength | 5000.00 lb. | 2270.00 kg. |
