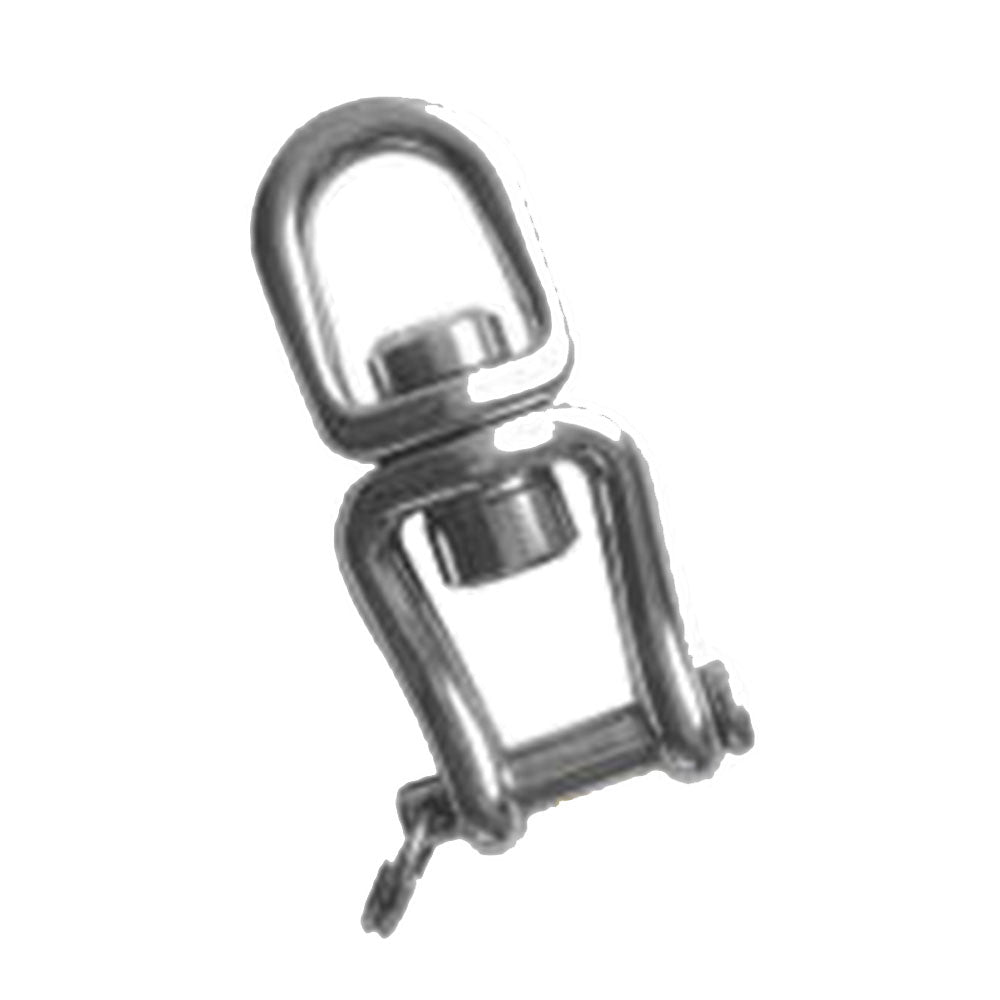

Tylaska Bail Swivel - T8 - Stb/Clevis (TY1208-SC)
SKU:
TYL-TY1208-SC
|
Manuf. Code:
TY1208-SC
25% off
Unit price
/
Unavailable
Tylaska Bail Swivel - T8 - Stb/Clevis (TY1208-SC) is backordered and will ship as soon as it is back in stock.
You Save $42 This Week!
Knowledgeable STAFF
Tylaska Bail Swivel - T8 - Stb/Clevis (TY1208-SC)
Unit price
/
Unavailable
Description
Description
Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.
Our Part # TYL-TY1208-SC | Tylaska Part # TY1208-SC
Technical Information
Technical Information

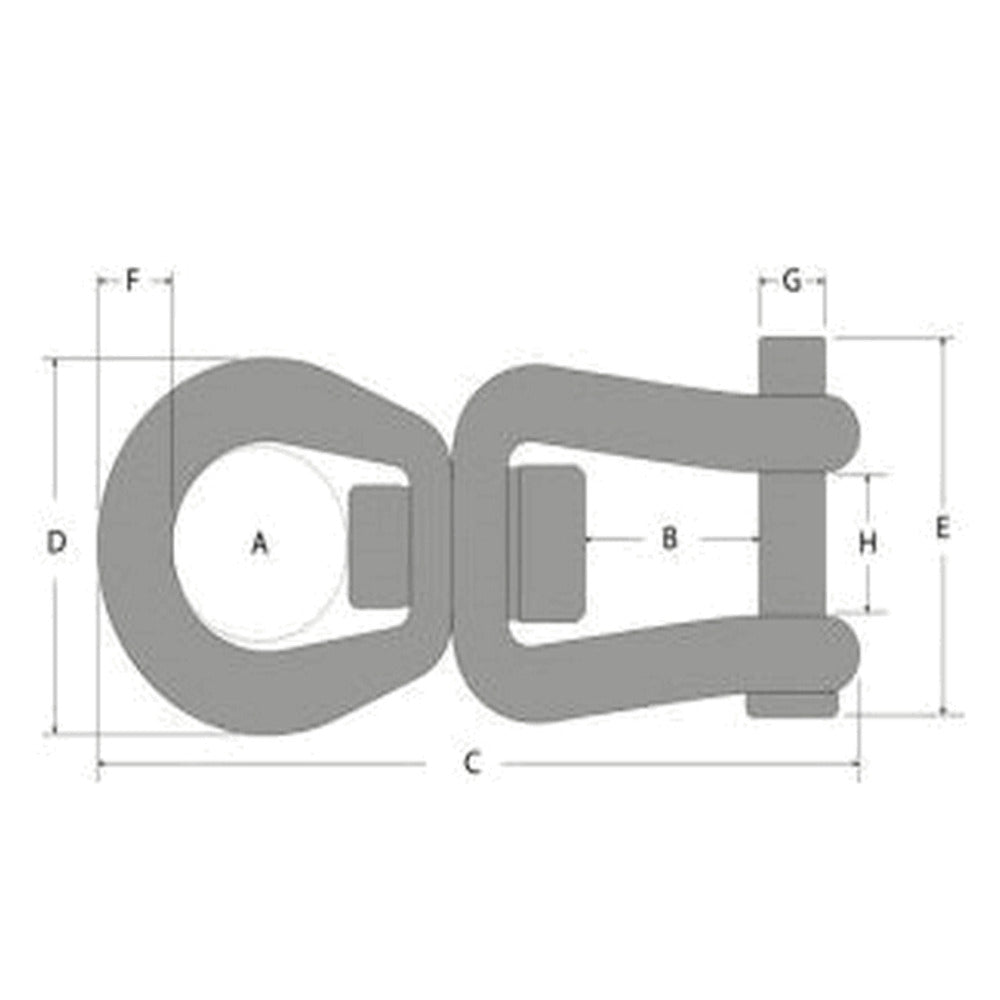

| Description | Imperial | Metric |
|---|---|---|
| A | 9/16 in. | 14.70 mm. |
| B | 11/16 in. | 16.80 mm. |
| C | 3.00 in. | 76.20 mm. |
| D | 1 3/16 in. | 30.20 mm. |
| E | 1 3/8 in. | 34.80 mm. |
| F | 1/4 in. | 7.10 mm. |
| G | 1/4 in. | 6.90 mm. |
| H | 1/2 in. | 13.20 mm. |
| Working Load Limit | 4000.00 lb. | 1810.00 kg. |
| Breaking Strength | 8000.00 lb. | 3630.00 kg. |
