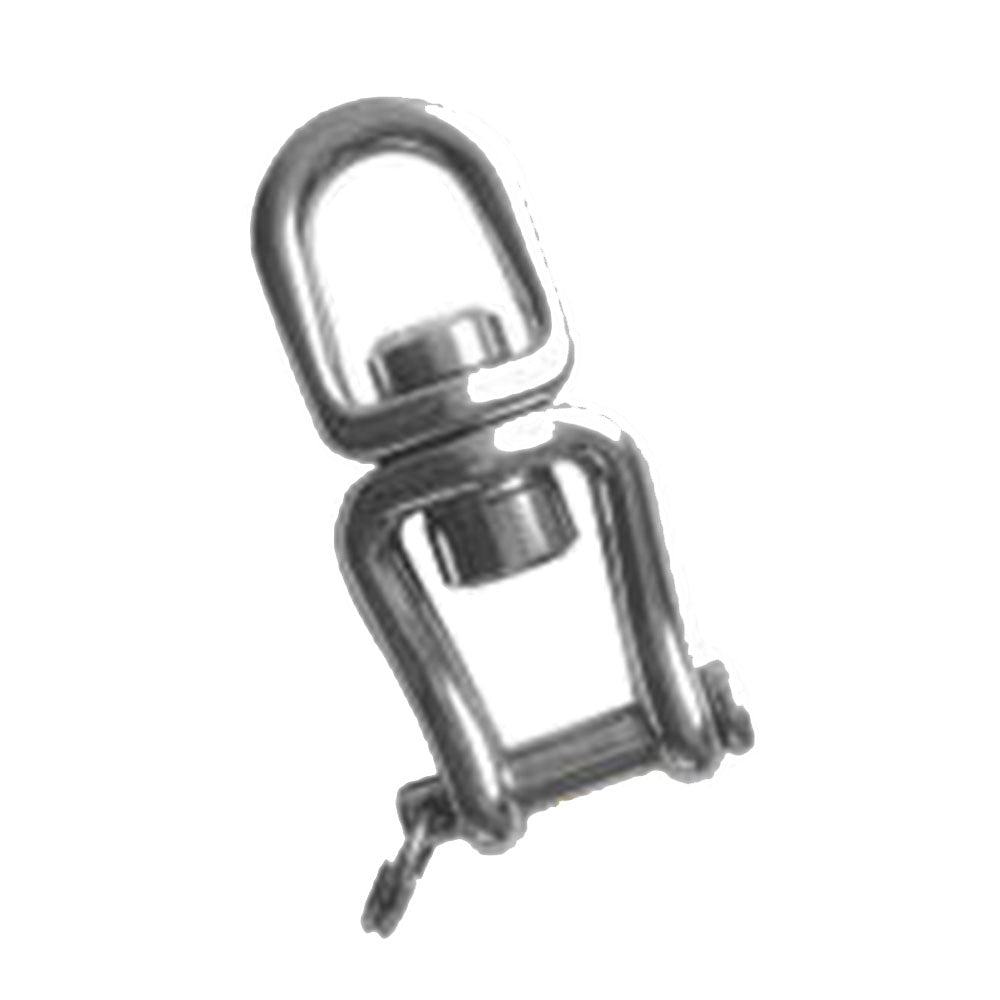

Tylaska Bail Swivel - T12 (TY1212-SC)
SKU:
TYL-TY1212-SC
|
Manuf. Code:
TY1212-SC
25% off
Unit price
/
Unavailable
Tylaska Bail Swivel - T12 (TY1212-SC) is backordered and will ship as soon as it is back in stock.
You Save $48 This Week!
Knowledgeable STAFF
Tylaska Bail Swivel - T12 (TY1212-SC)
Unit price
/
Unavailable
Description
Description
Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.
Our Part # TYL-TY1212-SC | Tylaska Part # TY1212-SC
Technical Information
Technical Information

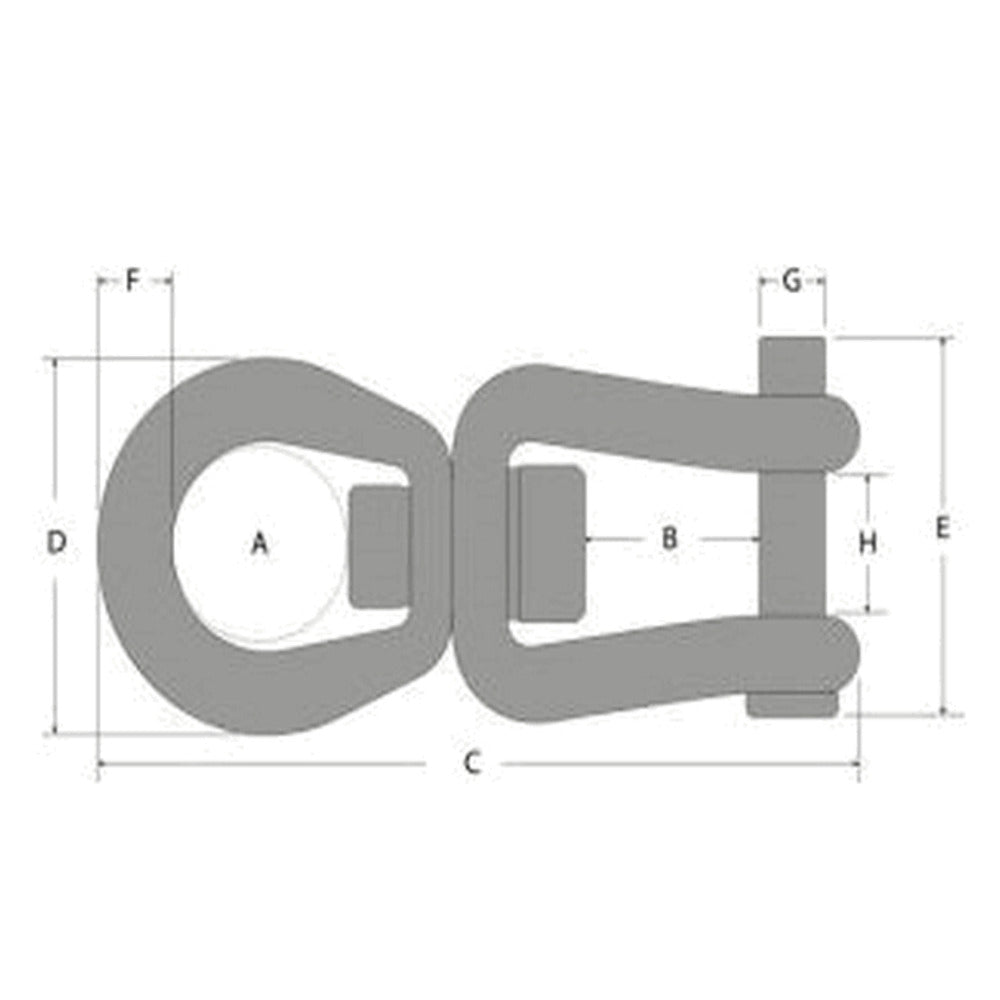

| Description | Imperial | Metric |
|---|---|---|
| A | 5/7 in. | 18.30 mm. |
| B | 8/9 in. | 22.60 mm. |
| C | 3 1/2 in. | 89.70 mm. |
| D | 1 2/5 in. | 35.30 mm. |
| E | 15/8 in. | 41.20 mm. |
| F | 1/3 in. | 8.40 mm. |
| G | 1/3 in. | 7.90 mm. |
| H | 5/8 in. | 15.80 mm. |
| Working Load Limit | 6000.00 lb. | 2720.00 kg. |
| Breaking Load | 12000.00 lb. | 5440.00 kg. |
