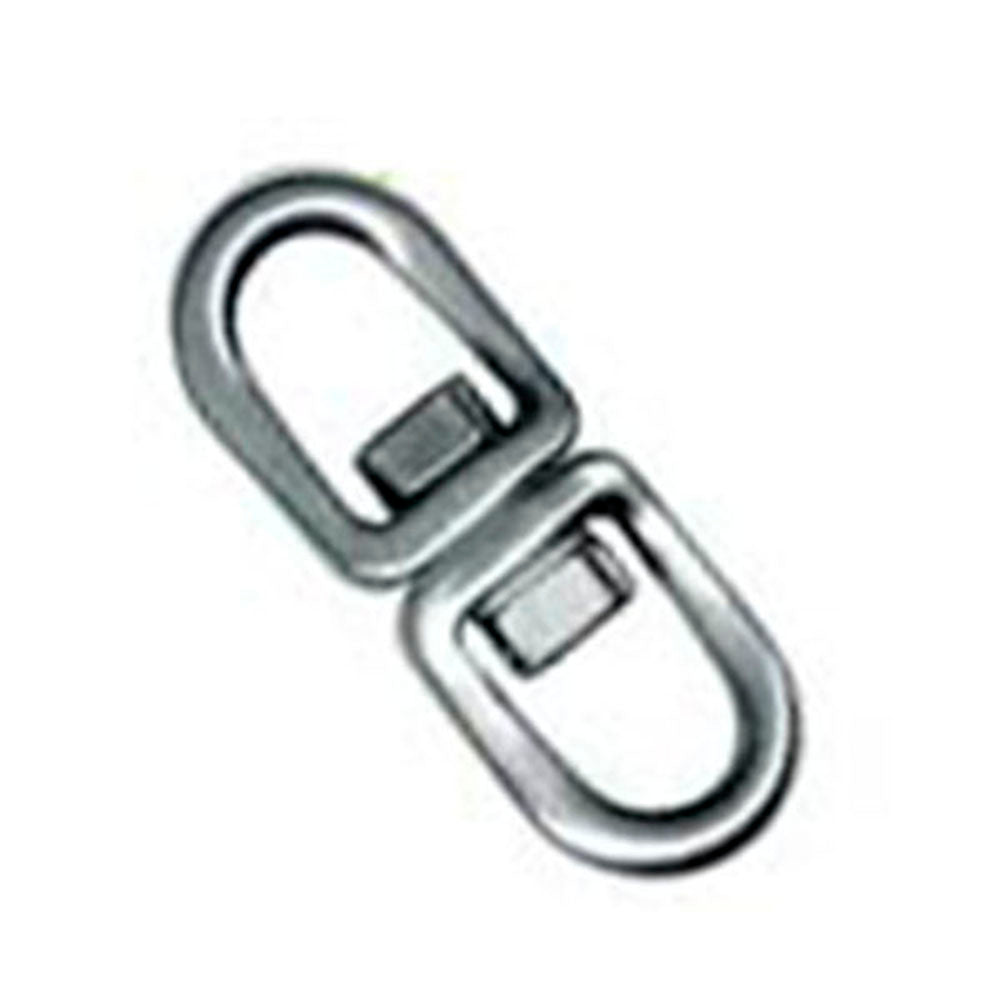

Tylaska Bail Swivel - T20 - Stb/Std (TY1220-SS)
SKU:
TYL-TY1220-SS
|
Manuf. Code:
TY1220-SS
25% off
Unit price
/
Unavailable
Tylaska Bail Swivel - T20 - Stb/Std (TY1220-SS) is backordered and will ship as soon as it is back in stock.
You Save $54 This Week!
Knowledgeable STAFF
Tylaska Bail Swivel - T20 - Stb/Std (TY1220-SS)
Unit price
/
Unavailable
Description
Description
Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.
Our Part # TYL-TY1220-SS | Tylaska Part # TY1220-SS
Technical Information
Technical Information

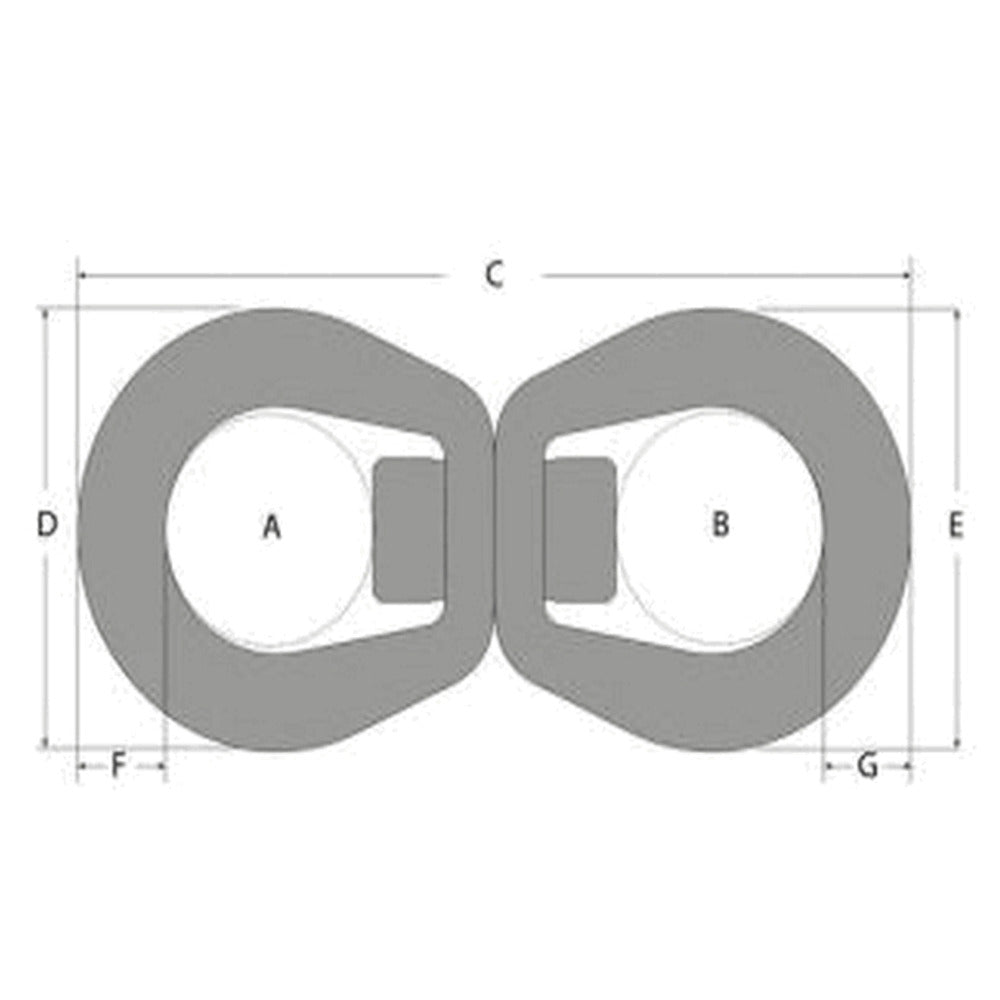

| Description | Imperial | Metric |
|---|---|---|
| A | 1.00 in. | 25.10 mm. |
| B | 1.00 in. | 25.10 mm. |
| C | 4 7/16 in. | 112.80 mm. |
| D | 1 7/8 in. | 47.20 mm. |
| E | 1 7/8 in. | 47.20 mm. |
| F | 7/16 in. | 11.20 mm. |
| G | 7/16 in. | 11.20 mm. |
| Working Load Limit | 10000.00 lb. | 4540.00 kg. |
| Breaking Strength | 20000.00 lb. | 9070.00 kg. |
