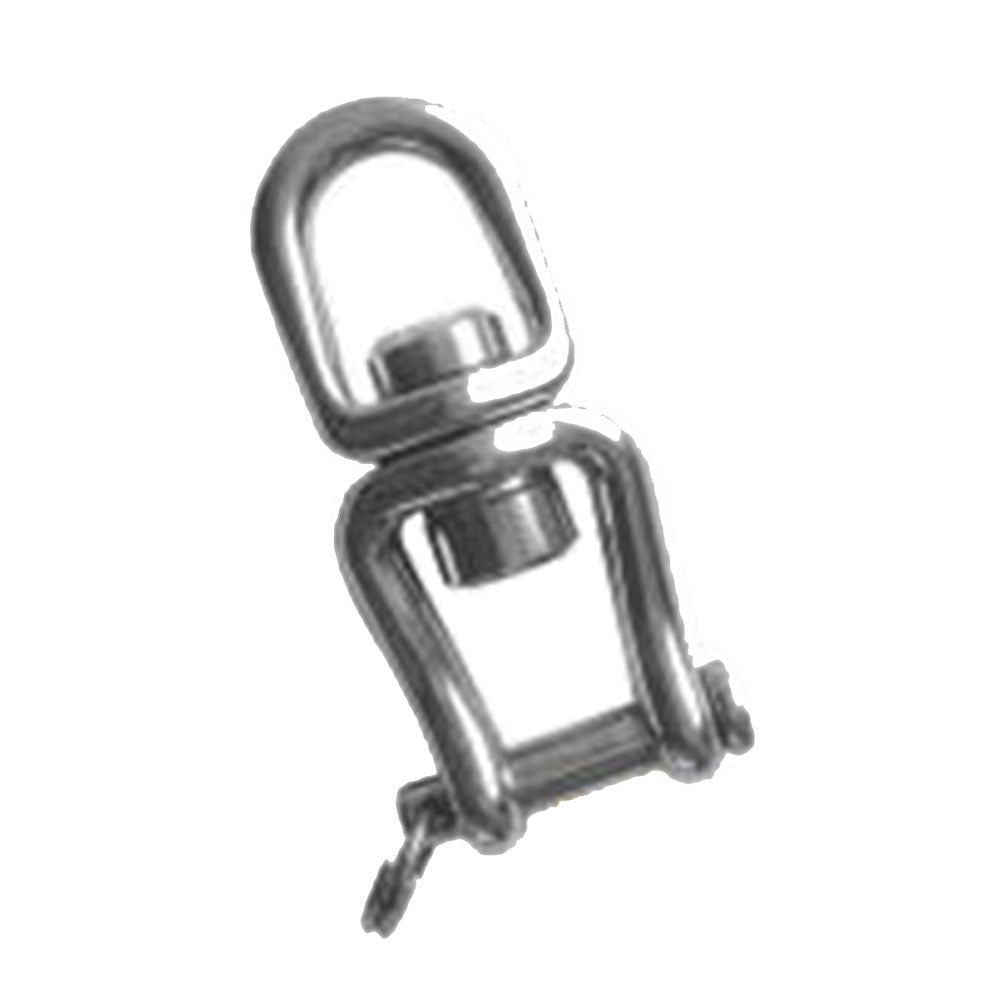

Tylaska Bail Swivel - T50 - Stb/Clevis (TY1250-SC)
SKU:
TYL-TY1250-SC
|
Manuf. Code:
TY1250-SC
10% off
Unit price
/
Unavailable
Tylaska Bail Swivel - T50 - Stb/Clevis (TY1250-SC) is backordered and will ship as soon as it is back in stock.
You Save $80 This Week!
Knowledgeable STAFF
Tylaska Bail Swivel - T50 - Stb/Clevis (TY1250-SC)
Unit price
/
Unavailable
Description
Description
Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.
Our Part # TYL-TY1250-SC | Tylaska Part # TY1250-SC
Technical Information
Technical Information

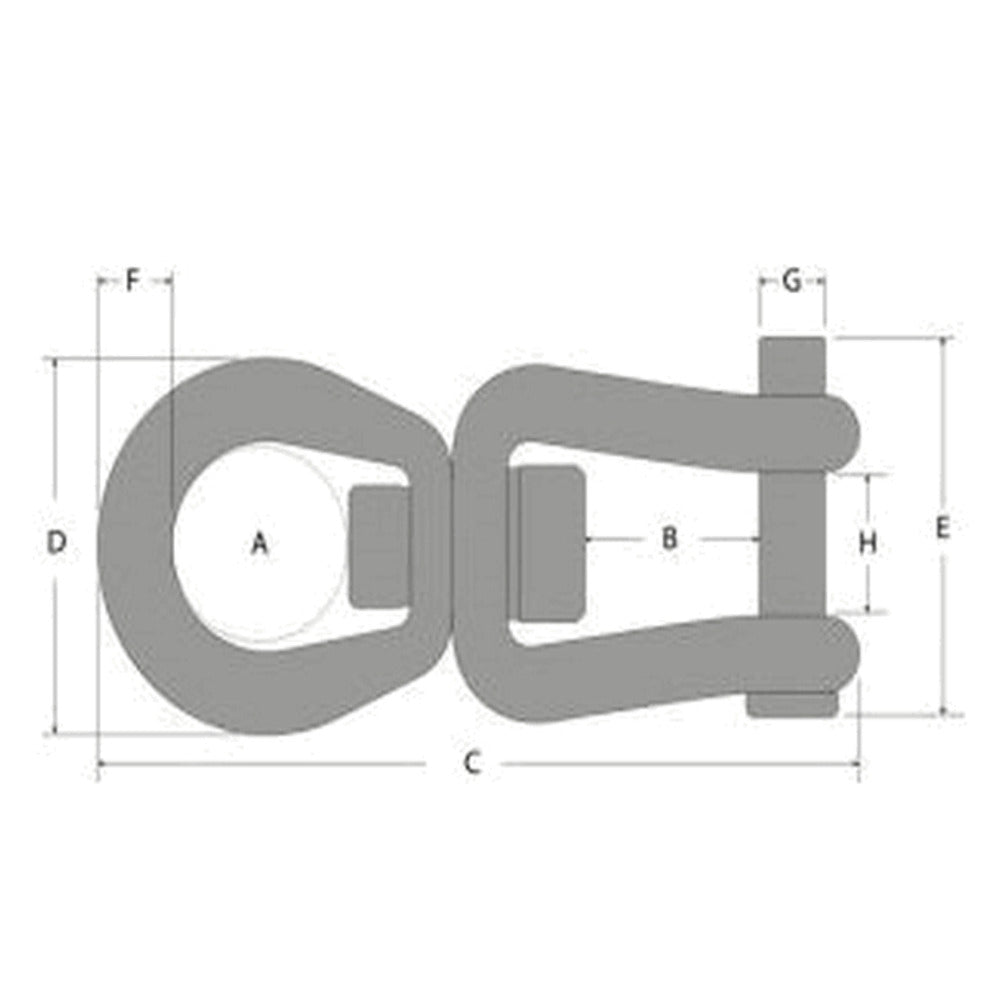

| Description | Imperial | Metric |
|---|---|---|
| A | 2.00 in. | 50.80 mm. |
| B | 2 1/4 in. | 57.40 mm. |
| C | 9 13/16 in. | 249.90 mm. |
| D | 3 5/8 in. | 92.70 mm. |
| E | 3 1/2 in. | 88.10 mm. |
| F | 13/16 in. | 21.10 mm. |
| G | 7/8 in. | 22.20 mm. |
| H | 1 3/4 in. | 44.20 mm. |
| Working Load Limit | 25000.00 lb. | 11340.00 kg. |
| Breaking Strength | 50000.00 lb. | 22680.00 kg. |
