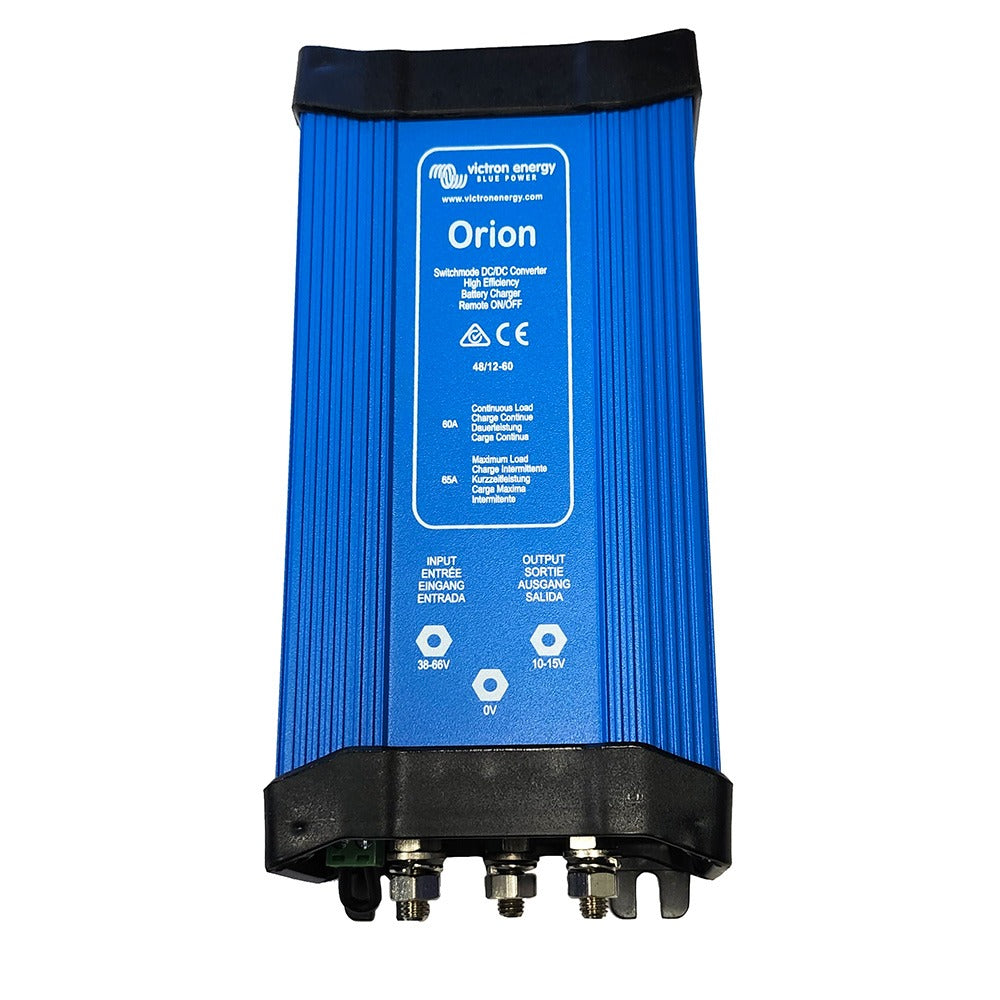

Victron Orion 48/12-60 DC - DC Non-Isolated Converter
DESCRIPTION
DESCRIPTION
Orion 48/12-60 DC-DC Non-Isolated Converter
The Victron Orion 48/12-60A DC-DC Converter IP20 is a high-efficiency, non-isolated DC-DC converter designed to reliably convert 48V DC input to 12V DC output, delivering up to 60A of continuous current. Ideal for applications where a robust 12V supply is required from a 48V system, this converter is commonly used in solar energy setups, telecom systems, industrial DC power distribution, and automotive or marine applications.
Featuring a non-isolated design, the Orion 48/12-60A allows the input and output to share a common ground, providing high efficiency while keeping the installation simple. The IP20-rated enclosure is designed for indoor panel mounting, with passive convection cooling for silent operation. Built-in protections against short-circuits, over-temperature, and low voltage make it a safe and reliable choice for demanding 48V to 12V conversion.
Additional features include adjustable output voltage, remote on/off control, and compatibility with standard 12V batteries, making it ideal for charging or powering sensitive DC loads. With Victron Energy’s reputation for durability and performance, this converter ensures your systems stay powered efficiently and safely.
Features:
- Converts 48v DC to 12V DC
- 60A continuous output current (720W)
- Non-isolated (common negative)
- IP20 rated for indoor/panel mounting
- Adjustable output voltage: 10-15V
- Short-circuit, over-temperature, and low-voltage protection
- Passive convection cooling, silent operation
- Remote on/off capability
- Ideal for solar, telecom, industrial, automotive, and marine systems
- 5 Year Warranty Included
Our Part # VIE-ORI481260020 | Mfr. Part # ORI481260020
FEATURES
FEATURES
- Converts 48v DC to 12V DC
- 60A continuous output current (720W)
- Non-isolated (common negative)
- IP20 rated for indoor/panel mounting
- Adjustable output voltage: 10-15V
- Short-circuit, over-temperature, and low-voltage protection
- Passive convection cooling, silent operation
- Remote on/off capability
- Ideal for solar, telecom, industrial, automotive, and marine systems
- 5 Year Warranty Included
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Specification | Value |
|---|---|
| Manufacturer | Victron Energy |
| Manufacturer part number | ORI481260020 |
| Adjustable output voltage | 10-15V |
| Supplier technical detail | The Victron Orion 48/12-60A DC-DC Converter IP20 is a high-efficiency, non-isolated DC-DC converter designed to reliably convert 48V DC input to 12V DC output, delivering up to 60A of continuous current. |
| Supplier technical detail | Ideal for applications where a robust 12V supply is required from a 48V system, this converter is commonly used in solar energy setups, telecom systems, industrial DC power distribution, and automotive or marine applications. |
| Supplier technical detail | Featuring a non-isolated design, the Orion 48/12-60A allows the input and output to share a common ground, providing high efficiency while keeping the installation simple. |
| Supplier technical detail | Built-in protections against short-circuits, over-temperature, and low voltage make it a safe and reliable choice for demanding 48V to 12V conversion. |
| Supplier application or construction detail | Additional features include adjustable output voltage, remote on/off control, and compatibility with standard 12V batteries, making it ideal for charging or powering sensitive DC loads. With Victron Energy’s reputation for durability and performance, this converter ensures your systems stay powered efficiently and safely. |
| Supplier technical detail | Additional features include adjustable output voltage, remote on/off control, and compatibility with standard 12V batteries, making it ideal for charging or powering sensitive DC loads. |
| Supplier technical detail | Converts 48v DC to 12V DC |
| Supplier technical detail | 60A continuous output current (720W) |
| Product-name configuration | DC Non-Isolated Converter |
