Vetus 5/8" Thru-Hull Fitting (Stainless Steel) - L-Flange (THRH16L)
SKU:
VTSTHRH16L
|
Manuf. Code:
THRH16L
Unit price
/
Unavailable
Vetus 5/8" Thru-Hull Fitting (Stainless Steel) - L-Flange (THRH16L) is backordered and will ship as soon as it is back in stock.
Knowledgeable STAFF
Vetus 5/8" Thru-Hull Fitting (Stainless Steel) - L-Flange (THR...
Unit price
/
Unavailable
Description
Description

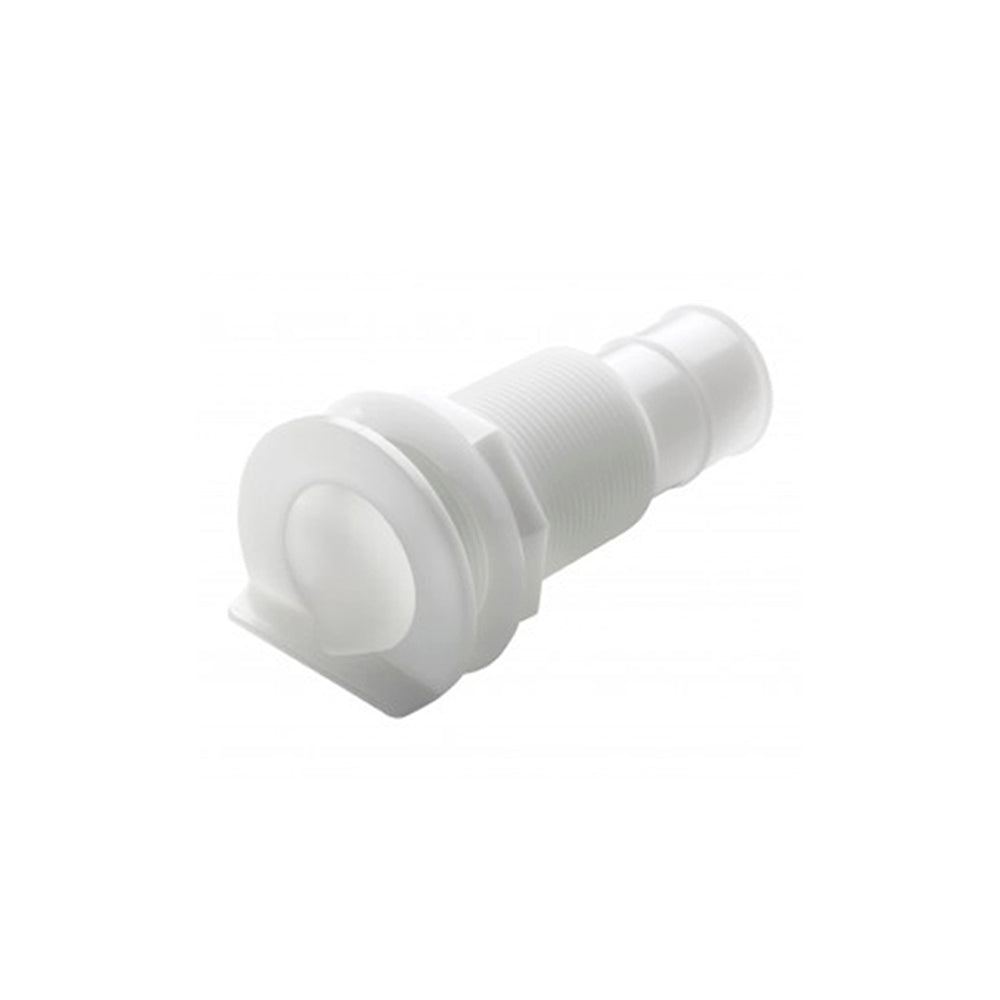

Skin fitting with L-flange for hose, Ø 16 mm (5/8").
Our Part # VTSTHRH16L | Vetus Part # THRH16L
Technical Information
Technical Information

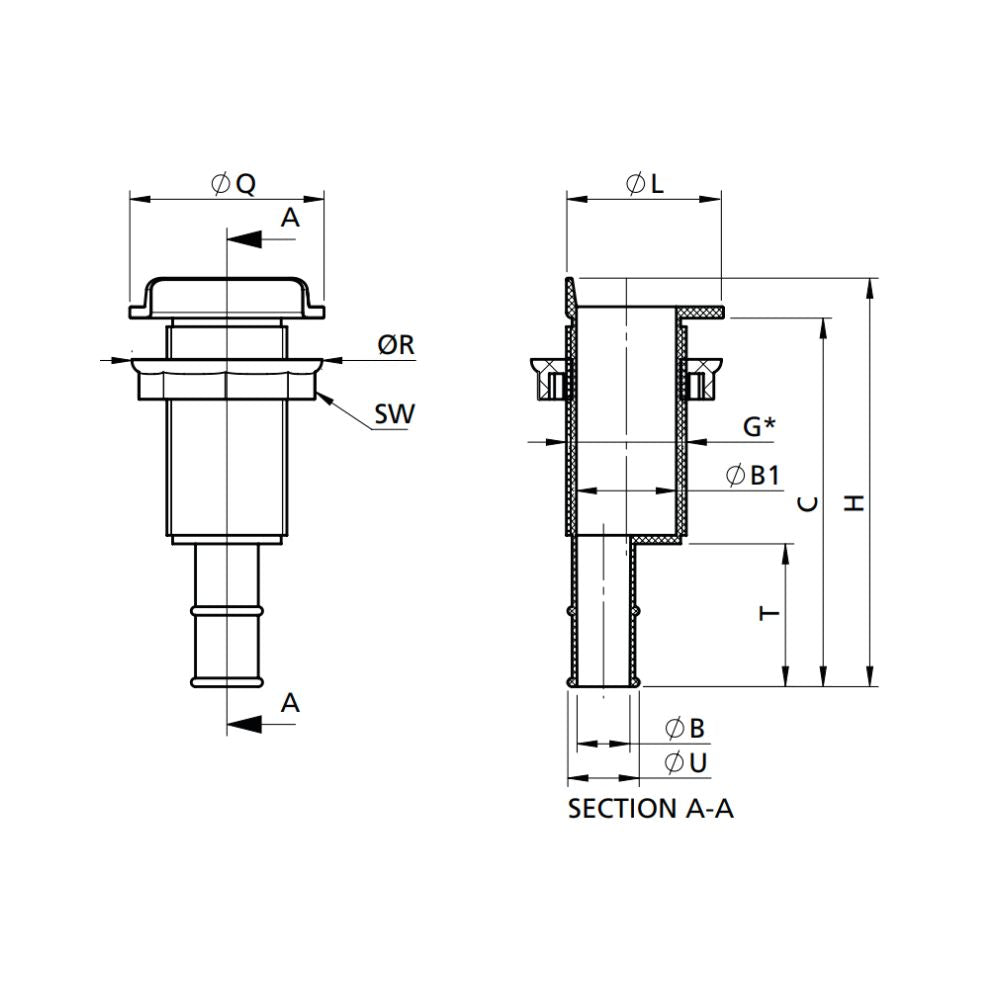

| Description | Imperial | Metric |
|---|---|---|
| Thread (G) | 3/4 in. | 19.05 mm. |
| ØB | 1/3 in. | 8.50 mm. |
| ØB1 | 4/5 in. | 20.00 mm. |
| H | 3 1/3 in. | 85.00 mm. |
| C | 2 5/6 in. | 72.00 mm. |
| ØQ | 2.00 in. | 50.00 mm. |
| L | 1 1/2 in. | 37.00 mm. |
| ØR | - | |
| SW | 1 1/3 in. | 34.00 mm. |
| T | 1 1/7 in. | 29.00 mm. |
| ØU | 5/8 in. | 16.00 mm. |
| Weight | 0.04 lb. | 0.02 kg. |
