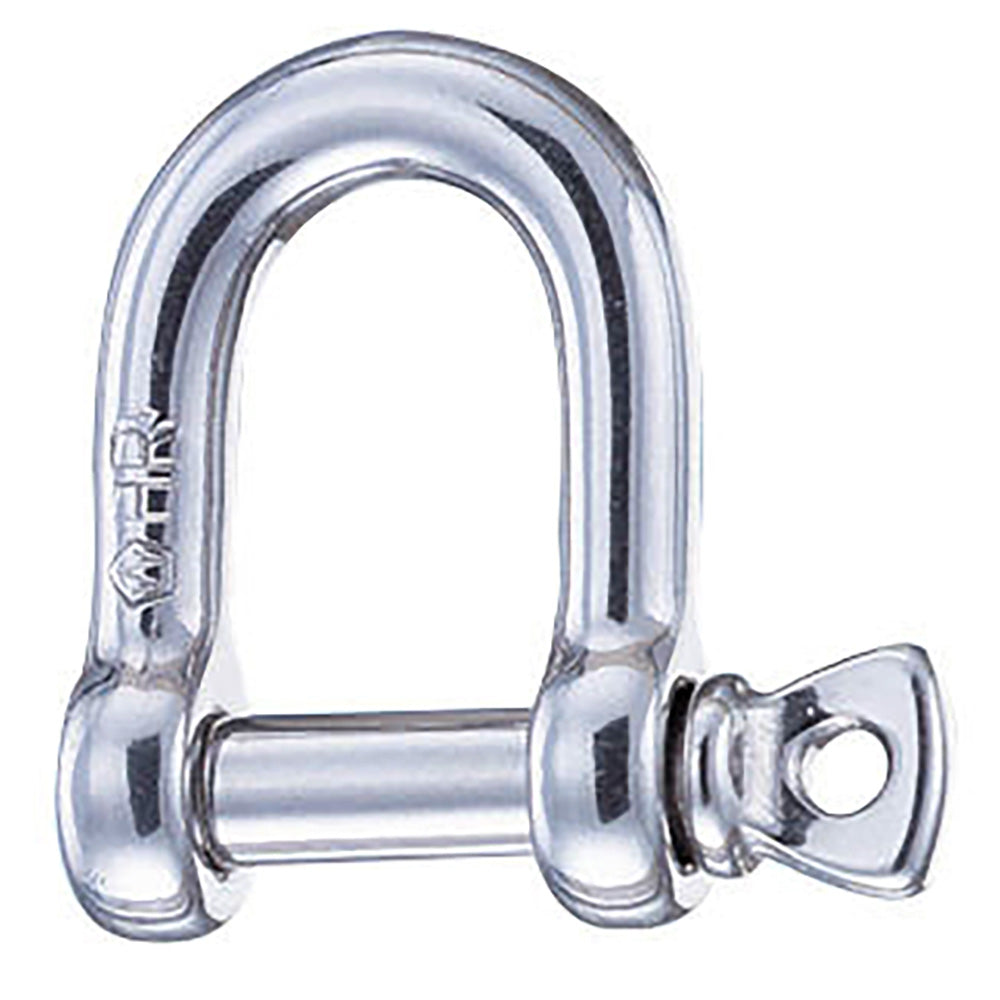

Wichard HR D Shackle - 14mm Diameter - 35/64"

SKU: wic11207w  |  Manuf. Code: 11207W
List Price:  $380.23 USD
$323.20 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

HR D Shackle - 14mm Diameter - 35/64"

Features:

  • Forged D shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Applications requesting high loads
  • Standard applications of the shackle
  • Attachment applications: blocks, head …
  • Do not use it for mooring applications

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 11280 / (kg) 5120
  • WLL: (lb) 5290 / (kg) 2400
  • Breaking load: (lb) 26450 / (kg) 12000
  • Weight: (lb) 0.67 / (g) 304

Dimensions:

  • A: (inch) 1 59/64" / (mm) 49
  • B: (inch) 1 7/64" / (mm) 28
  • D diameter: (inch) 35/64" / (mm) 14

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual

Mfr. Part # 11207W

FEATURES

  • Forged D shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

TECHNICAL INFORMATION

SpecificationValue
ManufacturerWichard Marine
Manufacturer part number11207W
WLLonly for industrial applications (lifting i.e…)
Attachment applicationsblocks, head …
MaterialsHR 17.4 PH stainless steel grade
Working load(lb) 11280 / (kg) 5120
WLL(lb) 5290 / (kg) 2400
Breaking load(lb) 26450 / (kg) 12000
Weight(lb) 0.67 / (g) 304
A(inch) 1 59/64" / (mm) 49
B(inch) 1 7/64" / (mm) 28
D diameter(inch) 35/64" / (mm) 14
Working Load (WL)For nautical applications
Working Load Limit (WLL)For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
Supplier technical detailHR D Shackle - 14mm Diameter - 35/64"
Supplier material detailForged D shackle in HR stainless steel grade (17,4 PH)
Supplier technical detailForged D shackle in HR stainless steel grade (17,4 PH)
Supplier material detailAn HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
Supplier technical detailAn HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
Supplier material detailMaterials: HR 17.4 PH stainless steel grade
Supplier technical detailMaterials: HR 17.4 PH stainless steel grade
Supplier technical detailA: (inch) 1 59/64" / (mm) 49
Supplier technical detailB: (inch) 1 7/64" / (mm) 28
Supplier technical detailD diameter: (inch) 35/64" / (mm) 14
ApplicationsApplications requesting high loads Standard applications of the shackle Attachment applications: blocks, head … Do not use it for mooring applications
Size or rating stated in product name14mm
Size or rating stated in product name35/64"
Product-name configuration14mm Diameter
Product-name configuration35/64"
