Wichard HR Long D Shackle - 10mm Diameter - 25/64"

SKU: wic11215w  |  Manuf. Code: 11215W
$153.85 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

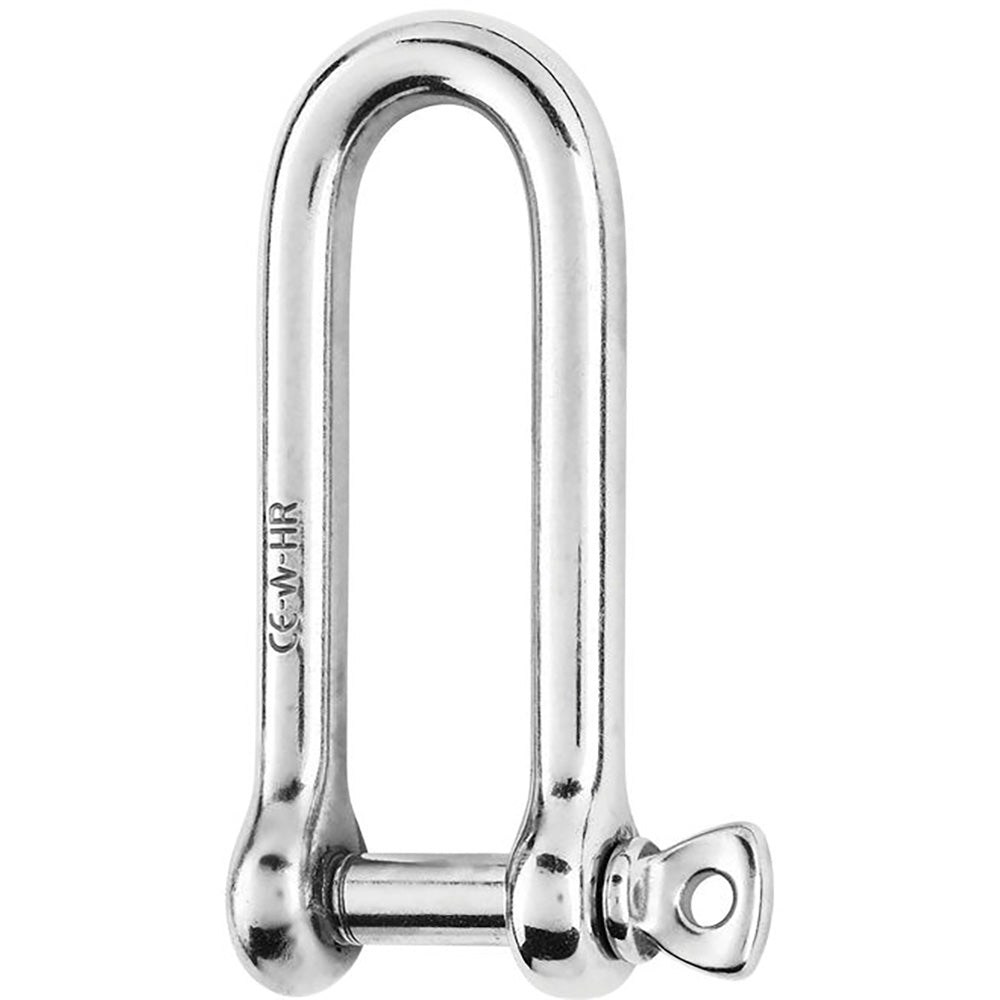

HR Long D Shackle - 10mm Diameter - 25/64"

Features:

  • Forged long shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Applications requesting high loads
  • Standard applications of the shackle
  • Attachment applications: blocks, head …
  • Do not use it for mooring applications

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 5820 / (kg) 2640
  • WLL: (lb) 2640 / (kg) 1200
  • Breaking load: (lb) 13220 / (kg) 6000
  • Weight: (lb) 0.362 / (g) 164

Dimensions:

  • A: (inch) 3 5/64" / (mm) 78
  • B: (inch) 25/32" / (mm) 20
  • D diameter: (inch) 25/64" / (mm) 10

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual

Mfr. Part # 11215W

FEATURES

  • Forged long shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

TECHNICAL INFORMATION

SpecificationValue
ManufacturerWichard Marine
Manufacturer part number11215W
WLLonly for industrial applications (lifting i.e…)
Attachment applicationsblocks, head …
MaterialsHR 17.4 PH stainless steel grade
Working load(lb) 5820 / (kg) 2640
WLL(lb) 2640 / (kg) 1200
Breaking load(lb) 13220 / (kg) 6000
Weight(lb) 0.362 / (g) 164
A(inch) 3 5/64" / (mm) 78
B(inch) 25/32" / (mm) 20
D diameter(inch) 25/64" / (mm) 10
Working Load (WL)For nautical applications
Working Load Limit (WLL)For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
Supplier technical detailHR Long D Shackle - 10mm Diameter - 25/64"
Supplier material detailForged long shackle in HR stainless steel grade (17,4 PH)
Supplier technical detailForged long shackle in HR stainless steel grade (17,4 PH)
Supplier material detailAn HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
Supplier technical detailAn HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
Supplier material detailMaterials: HR 17.4 PH stainless steel grade
Supplier technical detailMaterials: HR 17.4 PH stainless steel grade
Supplier technical detailA: (inch) 3 5/64" / (mm) 78
Supplier technical detailB: (inch) 25/32" / (mm) 20
Supplier technical detailD diameter: (inch) 25/64" / (mm) 10
ApplicationsApplications requesting high loads Standard applications of the shackle Attachment applications: blocks, head … Do not use it for mooring applications
Size or rating stated in product name10mm
Size or rating stated in product name25/64"
Product-name configuration10mm Diameter
Product-name configuration25/64"
