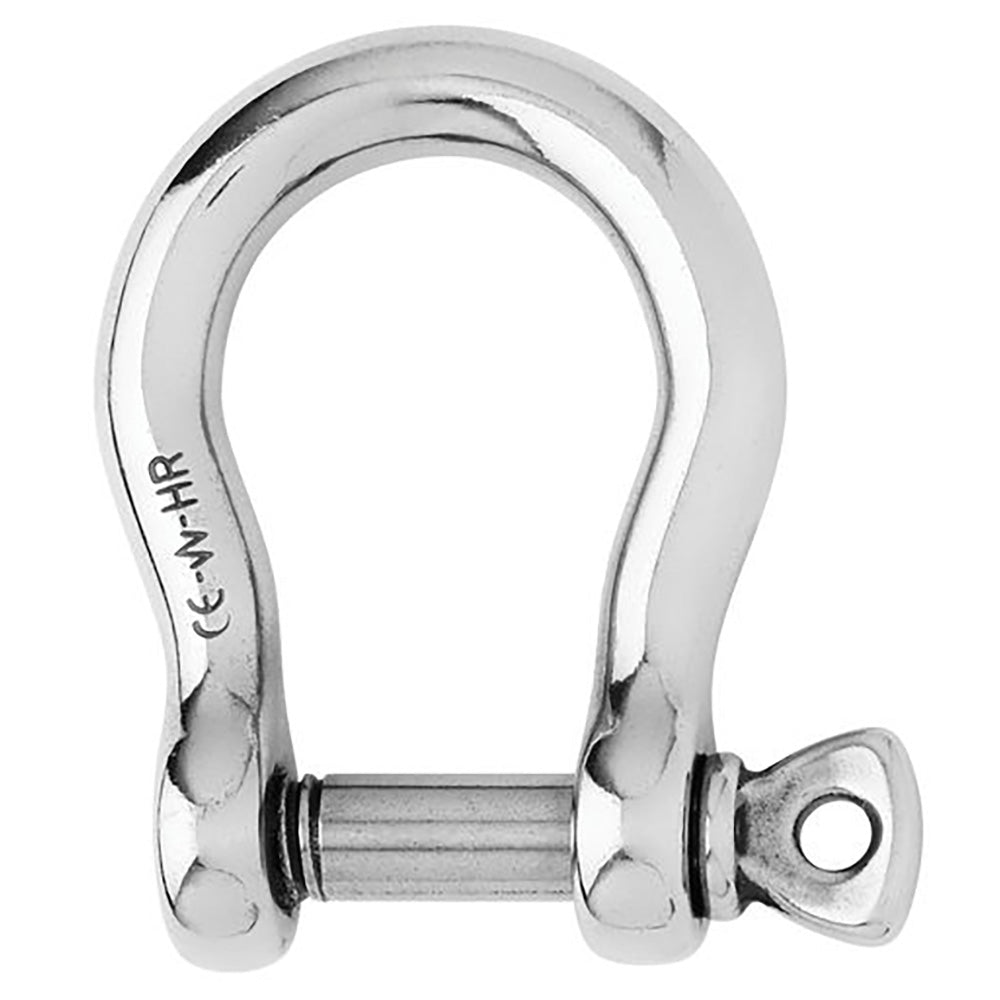

Wichard HR Bow Shackle - 12mm Pin Diameter

SKU: wic11246w  |  Manuf. Code: 11246W
List Price:  $247.10 USD
$210.04 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

HR Bow Shackle - 12mm Pin Diameter

Features:

  • Forged bow shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Applications requesting high loads
  • To be used when ample room is required
  • Possibility to attach several lines or cables
  • Do not use for mooring applications

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 7930 / (kg) 3600
  • WLL: (lb) 4400 / (kg) 2000
  • Breaking load: (lb) 22040 / (kg) 10000
  • Weight: (lb) 0.494 / (g) 224

Dimensions:

  • A: (inch) 2 11/64" / (mm) 55
  • B: (inch) 15/16" / (mm) 24
  • C: (inch) 15/32" / (mm) 12
  • D: (inch) 15/16" / (mm) 24
  • D diameter: (inch) 35/64" / (mm) 14
  • E: (inch) 25/64" / (mm) 10
  • M: (inch) 2 31/64" / (mm) 63

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

Mfr. Part # 11246W

FEATURES

  • Forged bow shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

TECHNICAL INFORMATION

SpecificationValue
ManufacturerWichard Marine
Manufacturer part number11246W
WLLonly for industrial applications (lifting i.e…)
MaterialsHR 17.4 PH stainless steel grade
Working load(lb) 7930 / (kg) 3600
WLL(lb) 4400 / (kg) 2000
Breaking load(lb) 22040 / (kg) 10000
Weight(lb) 0.494 / (g) 224
A(inch) 2 11/64" / (mm) 55
B(inch) 15/16" / (mm) 24
C(inch) 15/32" / (mm) 12
D(inch) 15/16" / (mm) 24
D diameter(inch) 35/64" / (mm) 14
E(inch) 25/64" / (mm) 10
M(inch) 2 31/64" / (mm) 63
Working Load (WL)For nautical applications
Working Load Limit (WLL)For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
Supplier technical detailHR Bow Shackle - 12mm Pin Diameter
Supplier material detailForged bow shackle in HR stainless steel grade (17,4 PH)
Supplier technical detailForged bow shackle in HR stainless steel grade (17,4 PH)
Supplier material detailA HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
Supplier technical detailA HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
Supplier material detailMaterials: HR 17.4 PH stainless steel grade
Supplier technical detailMaterials: HR 17.4 PH stainless steel grade
Supplier technical detailA: (inch) 2 11/64" / (mm) 55
Supplier technical detailB: (inch) 15/16" / (mm) 24
Supplier technical detailC: (inch) 15/32" / (mm) 12
Supplier technical detailD: (inch) 15/16" / (mm) 24
Supplier technical detailD diameter: (inch) 35/64" / (mm) 14
Supplier technical detailE: (inch) 25/64" / (mm) 10
Supplier technical detailM: (inch) 2 31/64" / (mm) 63
ApplicationsApplications requesting high loads To be used when ample room is required Possibility to attach several lines or cables Do not use for mooring applications
Size or rating stated in product name12mm
Product-name configuration12mm Pin Diameter
