Wichard Self-Locking D Shackle - Diameter 8mm - 5/16"

SKU: wic1204w  |  Manuf. Code: 1204W
$33.65 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

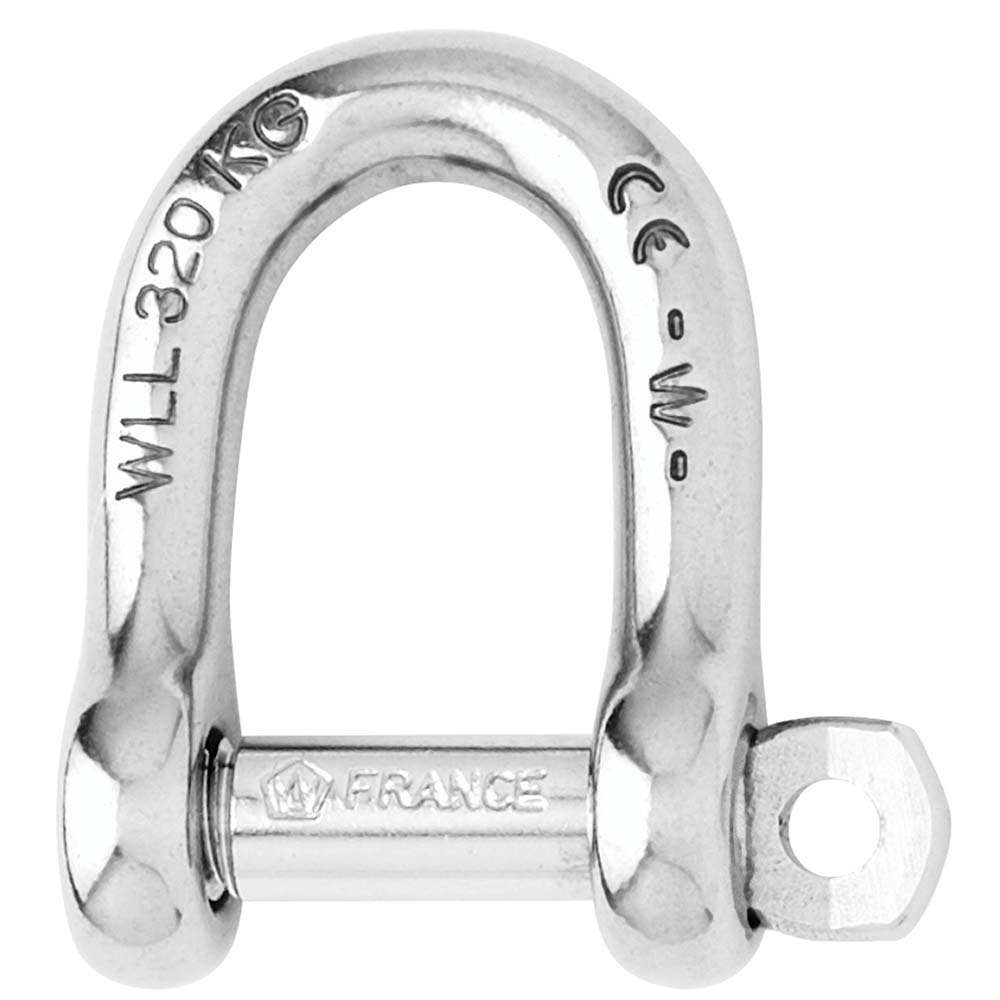

Self-Locking D Shackle - Diameter 8mm - 5/16"

Features:

  • Self-locking D shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications:

  • Standard applications of the shackle
  • Attachment applications: blocks, head…

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 2200
  • WLL (lb) 1190
  • Breaking load (lb) 5950
  • Weight (lb) 0.121

Dimensions (see 2nd image):

  • A (inch) 1-1/32"
  • B (inch) 5/8"
  • C (inch) 5/16"
  • D (inch) 5/8"
  • D diameter (inch) 5/16"
  • E (inch) 9/32"
  • F (inch) 1-49/64"
  • G (inch) 1-39/64"

Mfr. Part # 1204W

FEATURES

  • Self-locking D shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

TECHNICAL INFORMATION

SpecificationValue
ManufacturerWichard Marine
Manufacturer part number1204W
WLLonly for industrial applications (lifting i.e…)
Attachment applicationsblocks, head…
Materials316 stainless steel grade
Working load (lb)2200
WLL (lb)1190
Breaking load (lb)5950
Weight (lb)0.121
Supplier technical detailSelf-Locking D Shackle - Diameter 8mm - 5/16"
Supplier material detailSelf-locking D shackle forged in grade 316L stainless steel
Supplier technical detailSelf-locking D shackle forged in grade 316L stainless steel
Supplier material detailMaterials 316 stainless steel grade
Supplier technical detailMaterials 316 stainless steel grade
Supplier technical detailA (inch) 1-1/32"
Supplier technical detailD diameter (inch) 5/16"
Supplier technical detailF (inch) 1-49/64"
Supplier technical detailG (inch) 1-39/64"
ApplicationsStandard applications of the shackle Attachment applications: blocks, head…
Size or rating stated in product name8mm
Size or rating stated in product name5/16"
Product-name configurationDiameter 8mm
Product-name configuration5/16"
