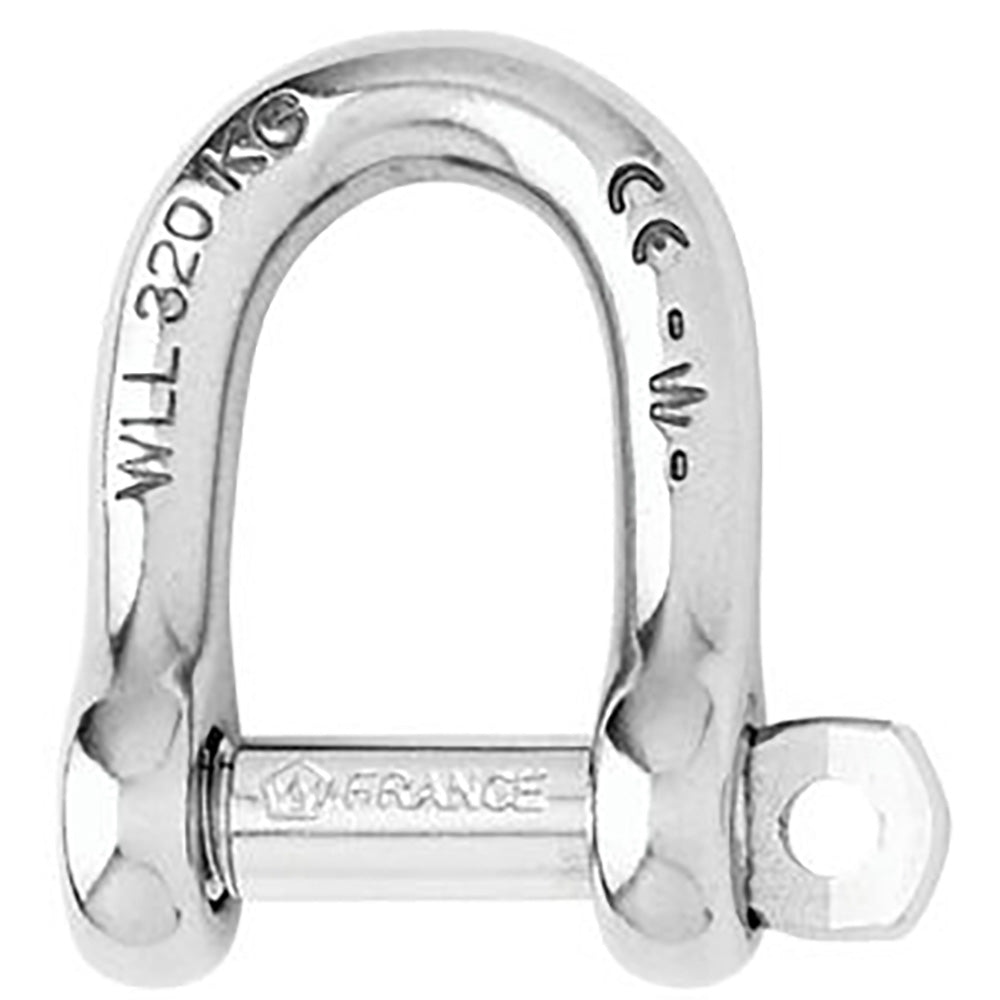

Wichard Not Self-Locking D Shackle - 14mm Diameter - 9/16"

SKU: wic1207w  |  Manuf. Code: 1207W
List Price:  $225.34 USD
$191.54 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Not Self-Locking D Shackle - 14mm Diameter - 9/16"

Features:

  • D shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking
  • Part #01207 is not a self-locking D shackle

Applications:

  • Standard applications of the shackle
  • Attachment applications: blocks, head

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 5290 / (kg) 2400
  • WLL: (lb) 3520 / (kg) 1600
  • Breaking load: (lb) 17630 / (kg) 8000
  • Weight: (lb) 0.688 / (g) 312

Dimensions:

  • A: (inch) 1 27/32" / (mm) 47
  • B: (inch) 1 7/64" / (mm) 28
  • C: (inch) 35/64" / (mm) 14
  • D: (inch) 1 7/64" / (mm) 28
  • D diameter: (inch) 35/64" / (mm) 14
  • E: (inch) 33/64" / (mm) 13
  • F: (inch) 3 15/64" / (mm) 82
  • G: (inch) 3 5/64" / (mm) 78

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
    WLL = Breaking load / 5

*Sold as an Individual

Mfr. Part # 1207W

FEATURES

  • D shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking
  • Part #01207 is not a self-locking D shackle

TECHNICAL INFORMATION

SpecificationValue
ManufacturerWichard Marine
Manufacturer part number1207W
WLLonly for industrial applications (lifting i.e…)
Attachment applicationsblocks, head
Materials316 stainless steel grade
Working load(lb) 5290 / (kg) 2400
WLL(lb) 3520 / (kg) 1600
Breaking load(lb) 17630 / (kg) 8000
Weight(lb) 0.688 / (g) 312
A(inch) 1 27/32" / (mm) 47
B(inch) 1 7/64" / (mm) 28
C(inch) 35/64" / (mm) 14
D(inch) 1 7/64" / (mm) 28
D diameter(inch) 35/64" / (mm) 14
E(inch) 33/64" / (mm) 13
F(inch) 3 15/64" / (mm) 82
G(inch) 3 5/64" / (mm) 78
Working Load (WL)For nautical applications
Working Load Limit (WLL)For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
Supplier technical detailNot Self-Locking D Shackle - 14mm Diameter - 9/16"
Supplier material detailD shackle forged in grade 316L stainless steel
Supplier technical detailD shackle forged in grade 316L stainless steel
Supplier material detailMaterials: 316 stainless steel grade
Supplier technical detailMaterials: 316 stainless steel grade
Supplier technical detailA: (inch) 1 27/32" / (mm) 47
Supplier technical detailB: (inch) 1 7/64" / (mm) 28
Supplier technical detailC: (inch) 35/64" / (mm) 14
Supplier technical detailD: (inch) 1 7/64" / (mm) 28
Supplier technical detailD diameter: (inch) 35/64" / (mm) 14
Supplier technical detailE: (inch) 33/64" / (mm) 13
Supplier technical detailF: (inch) 3 15/64" / (mm) 82
Supplier technical detailG: (inch) 3 5/64" / (mm) 78
Working Load Limit (WLL)For industrial applications only. The safety factor is 5 times the breaking load.
ApplicationsStandard applications of the shackle Attachment applications: blocks, head
Size or rating stated in product name14mm
Size or rating stated in product name9/16"
Product-name configuration14mm Diameter
Product-name configuration9/16"
