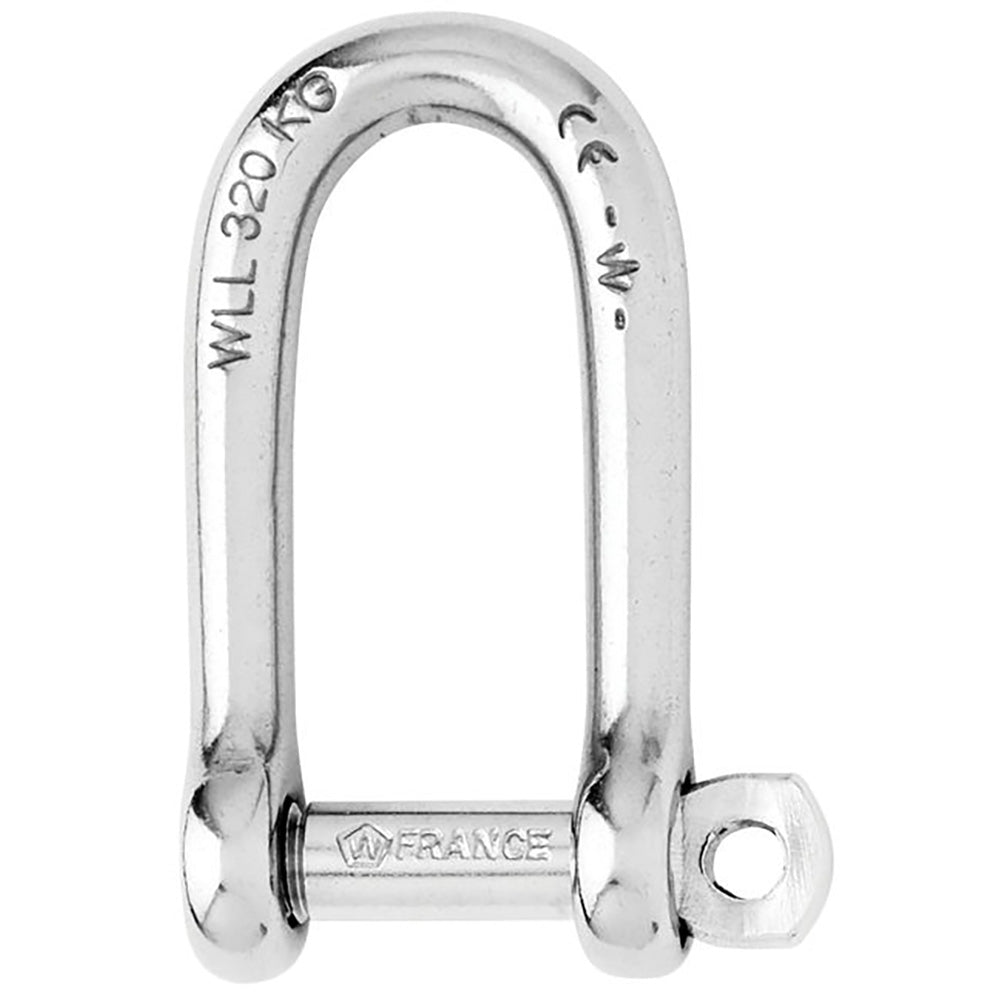

Wichard Self-Locking Long D Shackle - 10mm Diameter - 13/32"
Unit price
/
Unavailable
DESCRIPTION
DESCRIPTION
Self-Locking Long D Shackle - 10mm Diameter - 13/32"
Features:
- Self-locking D shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications
- Standard applications of shackle requiring more length
- Attachment applications: blocks, head
Specifications:
- Materials: 316 stainless steel grade
- Working load: (lb) 3350 / (kg) 1520
- WLL: (lb) 1890 / (kg) 860
- Breaking load: (lb) 9470 / (kg) 4300
- Weight: (lb) 0.282 / (kg) 4300
Dimensions:
- A: (inch) 2 11/64" / (mm) 55
- B: (inch) 25/32" / (mm) 20
- C: (inch) 25/64" / (mm) 10
- D: (inch) 3/4" / (mm) 19
- D diameter: (inch) 25/64" / (mm) 10
- E: (inch) 23/64" / (mm) 9
- G: (inch) 3 7/64" / (mm) 79
- H: (inch) 2 3/64" / (mm) 52
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
WLL = Breaking load / 5
*Sold as an Individual
Mfr. Part # 1215W
FEATURES
FEATURES
- Self-locking D shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Specification | Value |
|---|---|
| Manufacturer | Wichard Marine |
| Manufacturer part number | 1215W |
| WLL | only for industrial applications (lifting i.e…) |
| Attachment applications | blocks, head |
| Materials | 316 stainless steel grade |
| Working load | (lb) 3350 / (kg) 1520 |
| WLL | (lb) 1890 / (kg) 860 |
| Breaking load | (lb) 9470 / (kg) 4300 |
| Weight | (lb) 0.282 / (kg) 4300 |
| A | (inch) 2 11/64" / (mm) 55 |
| B | (inch) 25/32" / (mm) 20 |
| C | (inch) 25/64" / (mm) 10 |
| D | (inch) 3/4" / (mm) 19 |
| D diameter | (inch) 25/64" / (mm) 10 |
| E | (inch) 23/64" / (mm) 9 |
| G | (inch) 3 7/64" / (mm) 79 |
| H | (inch) 2 3/64" / (mm) 52 |
| Working Load (WL) | For nautical applications |
| Working Load Limit (WLL) | For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 |
| Supplier technical detail | Self-Locking Long D Shackle - 10mm Diameter - 13/32" |
| Supplier material detail | Self-locking D shackle forged in grade 316L stainless steel |
| Supplier technical detail | Self-locking D shackle forged in grade 316L stainless steel |
| Supplier material detail | Materials: 316 stainless steel grade |
| Supplier technical detail | Materials: 316 stainless steel grade |
| Supplier technical detail | A: (inch) 2 11/64" / (mm) 55 |
| Supplier technical detail | B: (inch) 25/32" / (mm) 20 |
| Supplier technical detail | C: (inch) 25/64" / (mm) 10 |
| Supplier technical detail | D: (inch) 3/4" / (mm) 19 |
| Supplier technical detail | D diameter: (inch) 25/64" / (mm) 10 |
| Supplier technical detail | E: (inch) 23/64" / (mm) 9 |
| Supplier technical detail | G: (inch) 3 7/64" / (mm) 79 |
| Supplier technical detail | H: (inch) 2 3/64" / (mm) 52 |
| Working Load Limit (WLL) | For industrial applications only. The safety factor is 5 times the breaking load. |
| Applications | Standard applications of shackle requiring more length Attachment applications: blocks, head |
| Size or rating stated in product name | 10mm |
| Size or rating stated in product name | 13/32" |
| Product-name configuration | 10mm Diameter |
| Product-name configuration | 13/32" |
