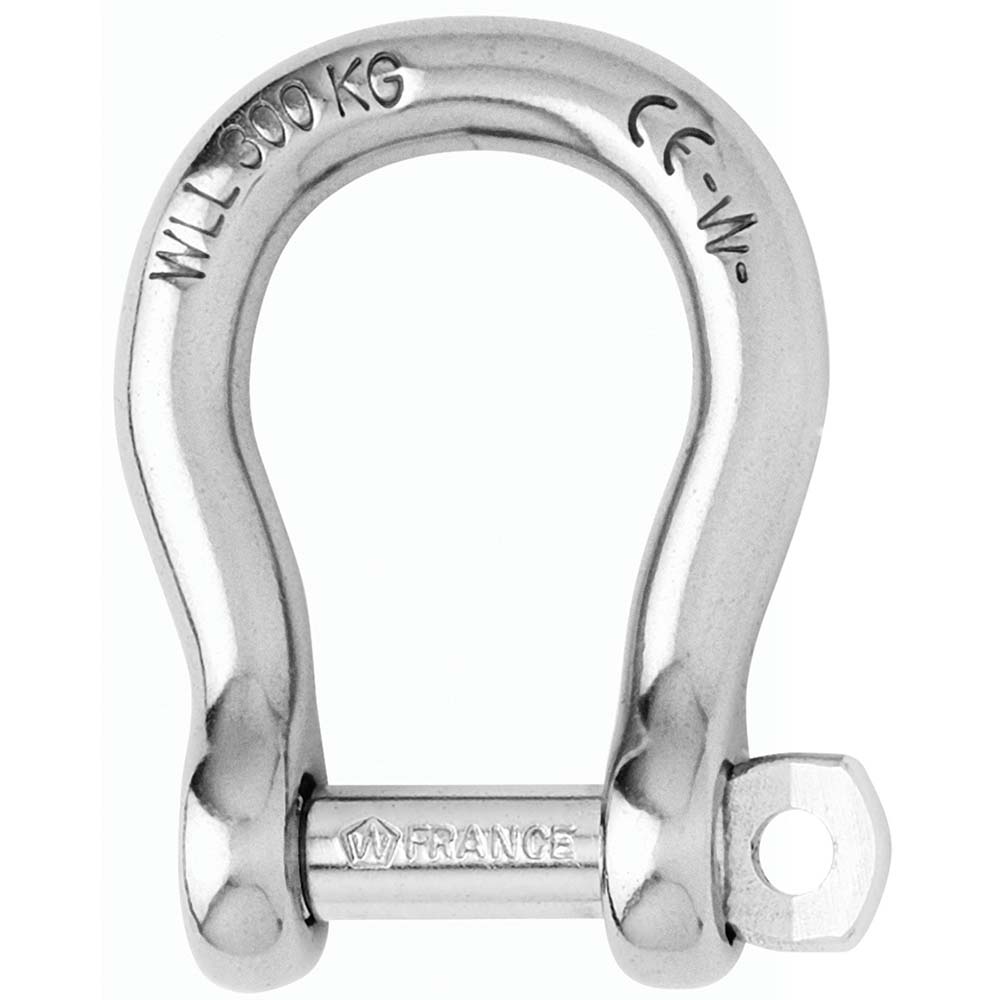

Wichard Self-Locking Bow Shackle - Diameter 4mm - 5/32"

SKU: wic1241w  |  Manuf. Code: 1241W
$17.60 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Self-Locking Bow Shackle - Diameter 4mm - 5/32"

Features:

  • Self-locking bow shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications:

  • To be used when ample room is required
  • Possibility to attach several lines or cables

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 700
  • WLL (lb) 300
  • Breaking load (lb) 1540
  • Weight (lb) 0.02

Dimensions (see 2nd image):

  • A (inch) 45/64"
  • B (inch) 5/16"
  • C (inch) 5/32"
  • D (inch) 5/16"
  • D diameter (inch) 5/32"
  • M (inch) 53/64"

Mfr. Part # 1241W

FEATURES

  • Self-locking bow shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

TECHNICAL INFORMATION

SpecificationValue
ManufacturerWichard Marine
Manufacturer part number1241W
WLLonly for industrial applications (lifting i.e…)
Materials316 stainless steel grade
Working load (lb)700
WLL (lb)300
Breaking load (lb)1540
Weight (lb)0.02
Supplier technical detailSelf-Locking Bow Shackle - Diameter 4mm - 5/32"
Supplier material detailSelf-locking bow shackle forged in grade 316L stainless steel
Supplier technical detailSelf-locking bow shackle forged in grade 316L stainless steel
Supplier material detailMaterials 316 stainless steel grade
Supplier technical detailMaterials 316 stainless steel grade
Supplier technical detailD diameter (inch) 5/32"
ApplicationsTo be used when ample room is required Possibility to attach several lines or cables
Size or rating stated in product name4mm
Size or rating stated in product name5/32"
Product-name configurationDiameter 4mm
Product-name configuration5/32"
