Wichard Self-Locking Bow Shackle - Diameter 5mm - 3/16"

SKU: wic1242w  |  Manuf. Code: 1242W
$19.45 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

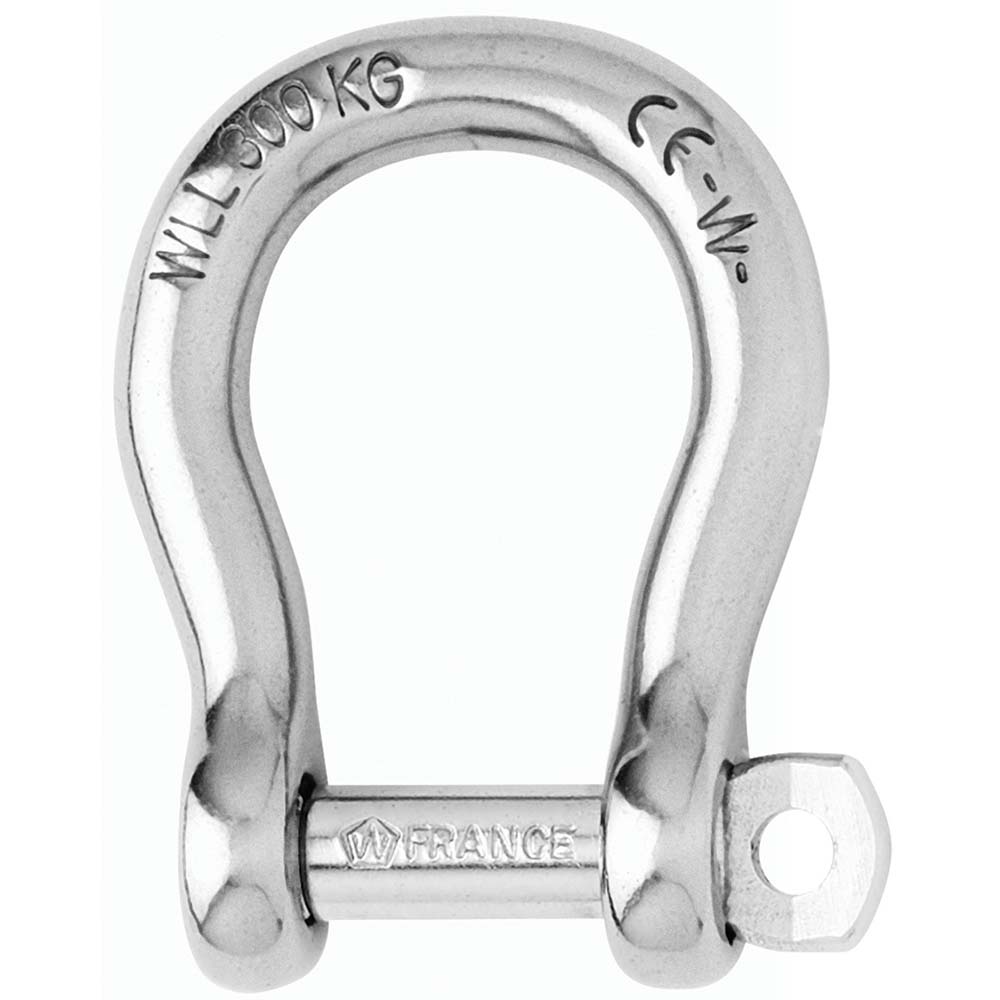

Self-Locking Bow Shackle - Diameter 5mm - 3/16"

Features:

  • Self-locking bow shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications:

  • To be used when ample room is required
  • Possibility to attach several lines or cables

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 880
  • WLL (lb) 440
  • Breaking load (lb) 2200
  • Weight (lb) 0.037

Dimensions (see 2nd image):

  • A (inch) 29/32"
  • B (inch) 25/64"
  • C (inch) 13/64"
  • D (inch) 25/64"
  • D diameter (inch) 13/64"
  • E (inch) 5/32"
  • M (inch) 63/64"

Mfr. Part # 1242W

FEATURES

  • Self-locking bow shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

TECHNICAL INFORMATION

SpecificationValue
ManufacturerWichard Marine
Manufacturer part number1242W
WLLonly for industrial applications (lifting i.e…)
Materials316 stainless steel grade
Working load (lb)880
WLL (lb)440
Breaking load (lb)2200
Weight (lb)0.037
Supplier technical detailSelf-Locking Bow Shackle - Diameter 5mm - 3/16"
Supplier material detailSelf-locking bow shackle forged in grade 316L stainless steel
Supplier technical detailSelf-locking bow shackle forged in grade 316L stainless steel
Supplier material detailMaterials 316 stainless steel grade
Supplier technical detailMaterials 316 stainless steel grade
Supplier technical detailD diameter (inch) 13/64"
ApplicationsTo be used when ample room is required Possibility to attach several lines or cables
Size or rating stated in product name5mm
Size or rating stated in product name3/16"
Product-name configurationDiameter 5mm
Product-name configuration3/16"
