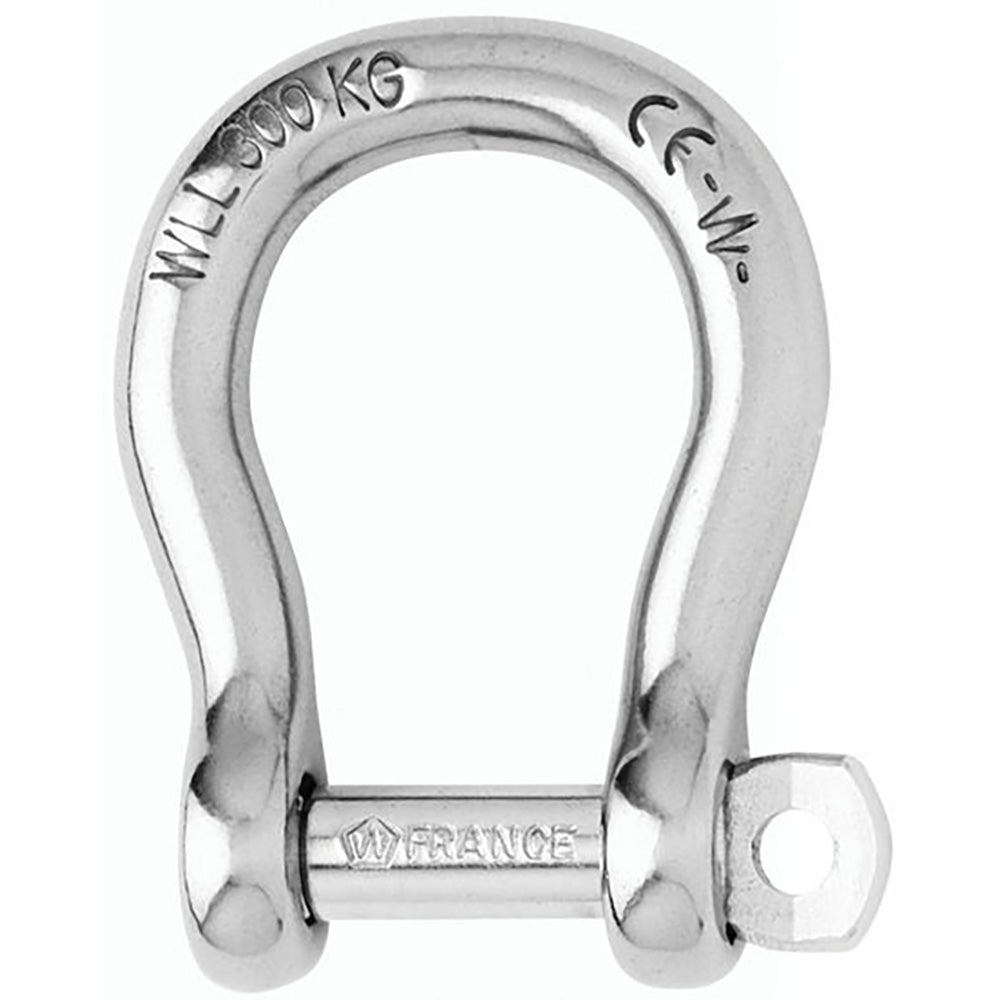

Wichard Not Self-Locking Bow Shackle - 16mm Diameter - 5/8"
Unit price
/
Unavailable
DESCRIPTION
DESCRIPTION
Not Self-Locking Bow Shackle - 16mm Diameter - 5/8"
Features:
- Bow shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking
- Part # 01247 is not self-locking
Applications:
- To be used when ample room is required
- Possibility to attach several lines or cables
Specifications:
- Materials: 316 stainless steel grade
- Working load: (lb) 7050 / (kg) 3200
- WLL: (lb) 4400 / (kg) 2000
- Breaking load: (lb) 22040 / (kg) 10000
- Weight: (lb) 1.19 / (g) 540
Dimensions:
- A: (inch) 2 3/4" / (mm) 70
- B: (inch) 1 17/64" / (mm) 32
- C: (inch) 35/64" / (mm) 14
- D: (inch) 1 17/64" / (mm) 14
- D diameter: (inch) 5/8" / (mm) 16
- E: (inch) 19/32" / (mm) 15
- M: (inch) 3 11/32" / (mm) 85
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
WLL = Breaking load / 5
*Sold as an Individual
Mfr. Part # 1247W
FEATURES
FEATURES
- Bow shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking
- Part # 01247 is not self-locking
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Specification | Value |
|---|---|
| Manufacturer | Wichard Marine |
| Manufacturer part number | 1247W |
| WLL | only for industrial applications (lifting i.e…) |
| Materials | 316 stainless steel grade |
| Working load | (lb) 7050 / (kg) 3200 |
| WLL | (lb) 4400 / (kg) 2000 |
| Breaking load | (lb) 22040 / (kg) 10000 |
| Weight | (lb) 1.19 / (g) 540 |
| A | (inch) 2 3/4" / (mm) 70 |
| B | (inch) 1 17/64" / (mm) 32 |
| C | (inch) 35/64" / (mm) 14 |
| D | (inch) 1 17/64" / (mm) 14 |
| D diameter | (inch) 5/8" / (mm) 16 |
| E | (inch) 19/32" / (mm) 15 |
| M | (inch) 3 11/32" / (mm) 85 |
| Working Load (WL) | For nautical applications |
| Working Load Limit (WLL) | For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 |
| Supplier technical detail | Not Self-Locking Bow Shackle - 16mm Diameter - 5/8" |
| Supplier material detail | Bow shackle forged in grade 316L stainless steel |
| Supplier technical detail | Bow shackle forged in grade 316L stainless steel |
| Supplier material detail | Materials: 316 stainless steel grade |
| Supplier technical detail | Materials: 316 stainless steel grade |
| Supplier technical detail | A: (inch) 2 3/4" / (mm) 70 |
| Supplier technical detail | B: (inch) 1 17/64" / (mm) 32 |
| Supplier technical detail | C: (inch) 35/64" / (mm) 14 |
| Supplier technical detail | D: (inch) 1 17/64" / (mm) 14 |
| Supplier technical detail | D diameter: (inch) 5/8" / (mm) 16 |
| Supplier technical detail | E: (inch) 19/32" / (mm) 15 |
| Supplier technical detail | M: (inch) 3 11/32" / (mm) 85 |
| Working Load Limit (WLL) | For industrial applications only. The safety factor is 5 times the breaking load. |
| Applications | To be used when ample room is required Possibility to attach several lines or cables |
| Size or rating stated in product name | 16mm |
| Size or rating stated in product name | 5/8" |
| Product-name configuration | 16mm Diameter |
| Product-name configuration | 5/8" |
