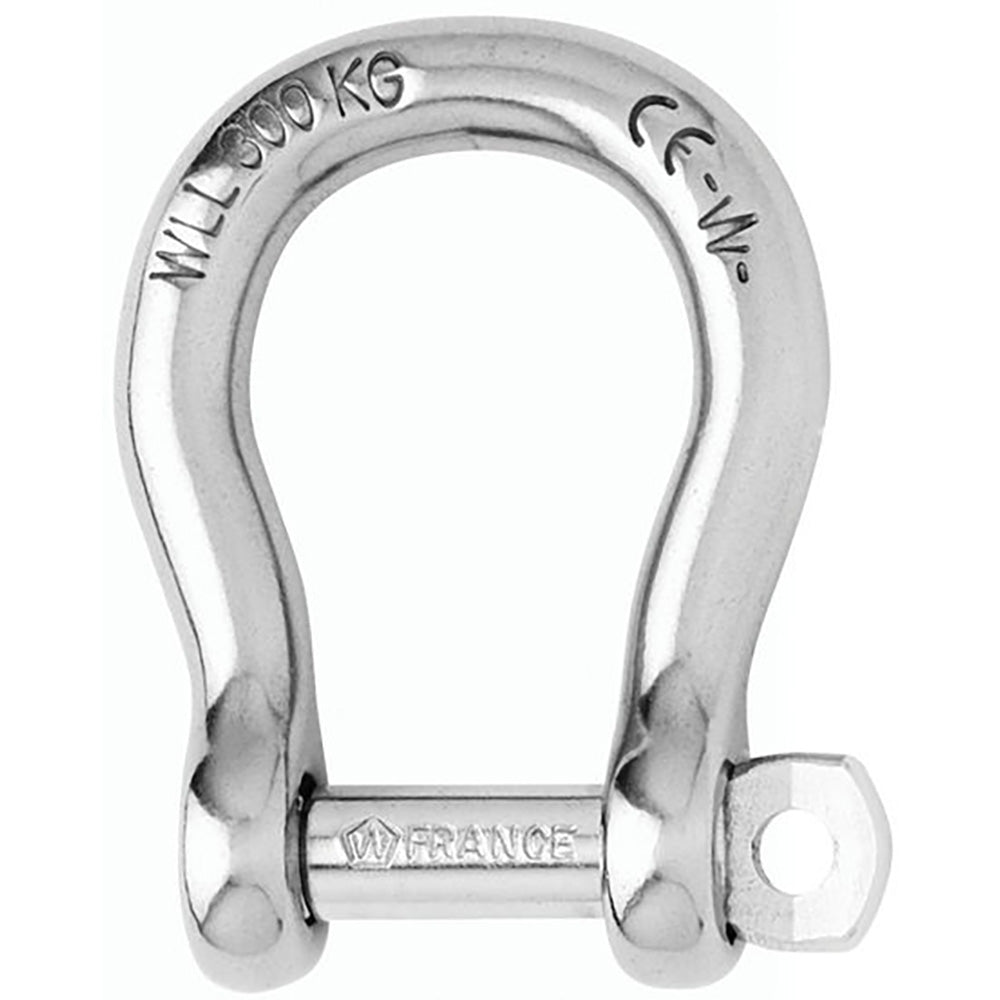

Wichard Not Self-Locking Bow Shackle - 20mm Diameter - 25/32"

SKU: wic1248w  |  Manuf. Code: 1248W
List Price:  $511.13 USD
$434.46 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Not Self-Locking Bow Shackle - 20mm Diameter - 25/32"

Features:

  • Bow shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking
  • Part # 01248 is not self-locking

Applications:

  • To be used when ample room is required
  • Possibility to attach several lines or cables

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 9920 / (kg) 4500
  • WLL: (lb) 6610 / (kg) 3000
  • Breaking load: (lb) 33060 / (kg) 15000
  • Weight: (lb) 2.328 / (kg) 1.056

Dimensions:

  • A: (inch) 3 5/32" / (mm) 80
  • B: (inch) 1 37/64" / (mm) 40
  • C: (inch) 25/32" / (mm) 20
  • D: (inch) 1 37/64" / (mm) 40
  • D diameter: (inch) 25/32" / (mm) 20
  • E: (inch) 45/64" / (mm) 18
  • M: (inch) 3 15/16" / (mm) 100

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
    WLL = Breaking load / 5

*Sold as an Individual

Mfr. Part # 1248W

FEATURES

  • Bow shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking
  • Part # 01248 is not self-locking

TECHNICAL INFORMATION

SpecificationValue
ManufacturerWichard Marine
Manufacturer part number1248W
WLLonly for industrial applications (lifting i.e…)
Materials316 stainless steel grade
Working load(lb) 9920 / (kg) 4500
WLL(lb) 6610 / (kg) 3000
Breaking load(lb) 33060 / (kg) 15000
Weight(lb) 2.328 / (kg) 1.056
A(inch) 3 5/32" / (mm) 80
B(inch) 1 37/64" / (mm) 40
C(inch) 25/32" / (mm) 20
D(inch) 1 37/64" / (mm) 40
D diameter(inch) 25/32" / (mm) 20
E(inch) 45/64" / (mm) 18
M(inch) 3 15/16" / (mm) 100
Working Load (WL)For nautical applications
Working Load Limit (WLL)For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
Supplier technical detailNot Self-Locking Bow Shackle - 20mm Diameter - 25/32"
Supplier material detailBow shackle forged in grade 316L stainless steel
Supplier technical detailBow shackle forged in grade 316L stainless steel
Supplier material detailMaterials: 316 stainless steel grade
Supplier technical detailMaterials: 316 stainless steel grade
Supplier technical detailA: (inch) 3 5/32" / (mm) 80
Supplier technical detailB: (inch) 1 37/64" / (mm) 40
Supplier technical detailC: (inch) 25/32" / (mm) 20
Supplier technical detailD: (inch) 1 37/64" / (mm) 40
Supplier technical detailD diameter: (inch) 25/32" / (mm) 20
Supplier technical detailE: (inch) 45/64" / (mm) 18
Supplier technical detailM: (inch) 3 15/16" / (mm) 100
Working Load Limit (WLL)For industrial applications only. The safety factor is 5 times the breaking load.
ApplicationsTo be used when ample room is required Possibility to attach several lines or cables
Size or rating stated in product name20mm
Size or rating stated in product name25/32"
Product-name configuration20mm Diameter
Product-name configuration25/32"
