Wichard Self-Locking Large Opening Shackle - 10mm Diameter - 13/32"

SKU: wic1265w  |  Manuf. Code: 1265W
$99.16 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

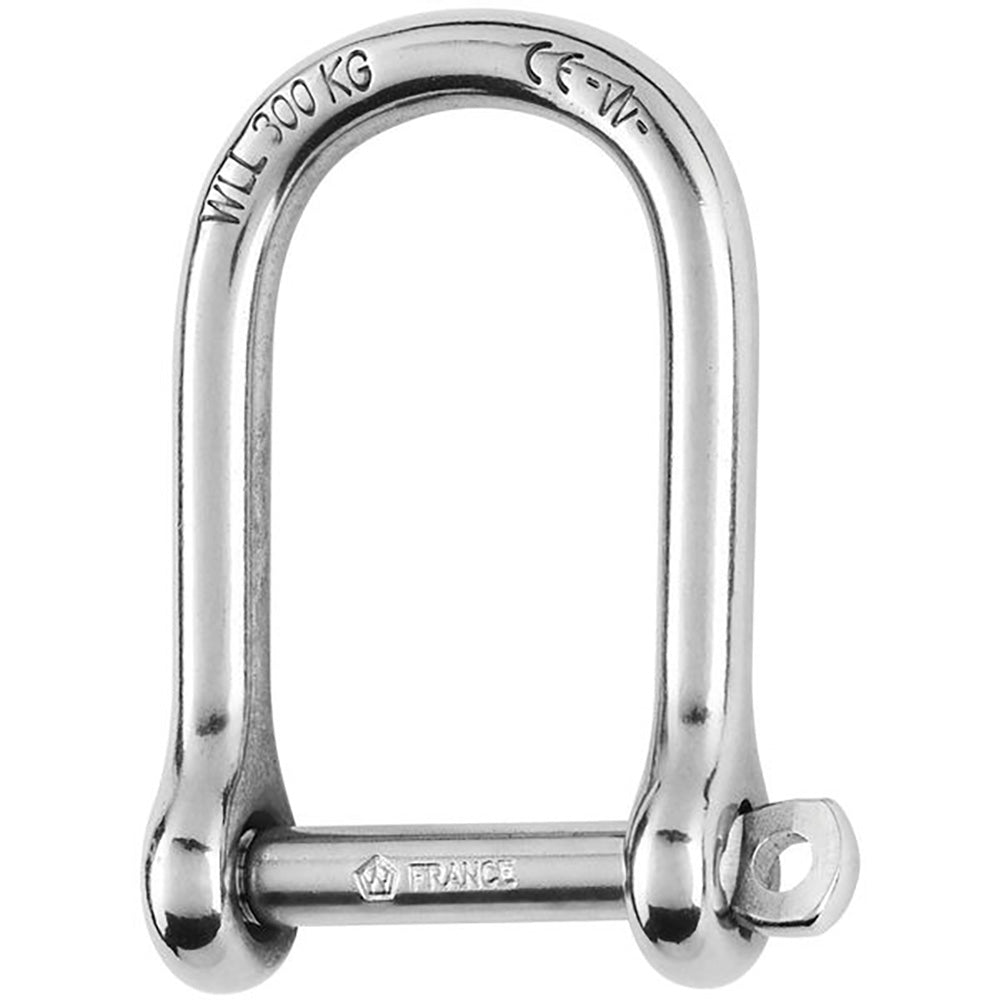

Self-Locking Large Opening Shackle - 10mm Diameter - 13/32"

Features:

  • Self-locking large shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • For applications where a large opening shackle is required

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 2820 / (kg) 1280
  • WLL: (lb) 1760 / (kg) 800
  • Breaking load: (lb) 8810 / (kg) 4000
  • Weight: (lb) 0.28 / (kg) 4000

Dimensions:

  • A: (inch) 2 53/64" / (mm) 72
  • B: (inch) 1 37/64" / (mm) 40
  • C; (inch) 25/64" / (mm) 10
  • D: (inch) 53/64" / (mm) 21
  • D diameter: (inch) 25/64" / (mm) 10
  • E: (inch) 25/64" / (mm) 10
  • G: (inch) 2 51/64" / (mm) 71

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
    WLL = Breaking load / 5

*Sold as an Individual

Mfr. Part # 1265W

FEATURES

  • Self-locking large shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

TECHNICAL INFORMATION

SpecificationValue
ManufacturerWichard Marine
Manufacturer part number1265W
WLLonly for industrial applications (lifting i.e…)
Materials316 stainless steel grade
Working load(lb) 2820 / (kg) 1280
WLL(lb) 1760 / (kg) 800
Breaking load(lb) 8810 / (kg) 4000
Weight(lb) 0.28 / (kg) 4000
A(inch) 2 53/64" / (mm) 72
B(inch) 1 37/64" / (mm) 40
D(inch) 53/64" / (mm) 21
D diameter(inch) 25/64" / (mm) 10
E(inch) 25/64" / (mm) 10
G(inch) 2 51/64" / (mm) 71
Working Load (WL)For nautical applications
Working Load Limit (WLL)For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
Supplier technical detailSelf-Locking Large Opening Shackle - 10mm Diameter - 13/32"
Supplier material detailSelf-locking large shackle forged in grade 316L stainless steel
Supplier technical detailSelf-locking large shackle forged in grade 316L stainless steel
Supplier material detailMaterials: 316 stainless steel grade
Supplier technical detailMaterials: 316 stainless steel grade
Supplier technical detailA: (inch) 2 53/64" / (mm) 72
Supplier technical detailB: (inch) 1 37/64" / (mm) 40
Supplier technical detailC; (inch) 25/64" / (mm) 10
Supplier technical detailD: (inch) 53/64" / (mm) 21
Supplier technical detailD diameter: (inch) 25/64" / (mm) 10
Supplier technical detailE: (inch) 25/64" / (mm) 10
Supplier technical detailG: (inch) 2 51/64" / (mm) 71
Working Load Limit (WLL)For industrial applications only. The safety factor is 5 times the breaking load.
ApplicationsFor applications where a large opening shackle is required
Size or rating stated in product name10mm
Size or rating stated in product name13/32"
Product-name configuration10mm Diameter
Product-name configuration13/32"
