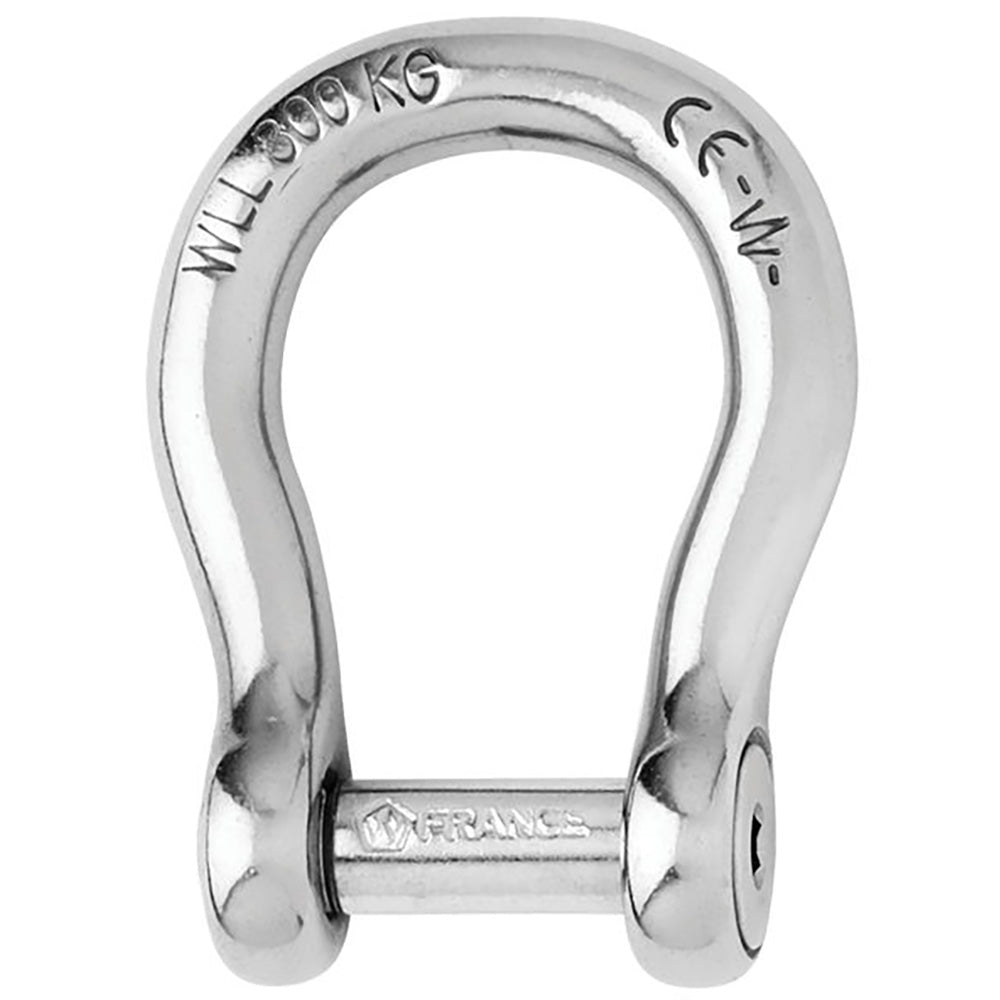

Wichard Self-Locking Allen Head Pin Bow Shackle - 12mm Diameter - 15/32"

SKU: wic1346w  |  Manuf. Code: 1346W
$134.80 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Self-Locking Allen Head Pin Bow Shackle - 12mm Diameter - 15/32"

Features:

  • Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Ideal to link chains and anchor
  • On the halyard, avoids damaging the sails
  • To be used when the clutter is reduced
  • To be used when ample room is required

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 4580 / (kg) 2080
  • WLL: (lb) 2640 / (kg) 1200
  • Breaking load: (lb) 13220 / (kg) 6000
  • Weight: (lb) 0.489 / (g) 222

Dimensions:

  • A: (inch) 2 11/64" / (mm) 55
  • B: (inch) 1 1/16" / (mm) 27
  • C: (inch) 15/32" / (mm) 12
  • D: (inch)15/16" / (mm) 24
  • D diameter: (inch) 15/32" / (mm) 12
  • E: (inch) 25/64" / (mm) 10
  • F: (inch) 1 1/2" / (mm) 38
  • M: (inch) 2 31/64" / (mm) 63

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
    WLL = Breaking load / 5

*Sold as an Individual

Mfr. Part # 1346W

FEATURES

  • Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

TECHNICAL INFORMATION

SpecificationValue
ManufacturerWichard Marine
Manufacturer part number1346W
WLLonly for industrial applications (lifting i.e…)
Materials316 stainless steel grade
Working load(lb) 4580 / (kg) 2080
WLL(lb) 2640 / (kg) 1200
Breaking load(lb) 13220 / (kg) 6000
Weight(lb) 0.489 / (g) 222
A(inch) 2 11/64" / (mm) 55
B(inch) 1 1/16" / (mm) 27
C(inch) 15/32" / (mm) 12
D(inch)15/16" / (mm) 24
D diameter(inch) 15/32" / (mm) 12
E(inch) 25/64" / (mm) 10
F(inch) 1 1/2" / (mm) 38
M(inch) 2 31/64" / (mm) 63
Working Load (WL)For nautical applications
Working Load Limit (WLL)For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
Supplier technical detailSelf-Locking Allen Head Pin Bow Shackle - 12mm Diameter - 15/32"
Supplier material detailSelf-locking twisted shackle with allen head pin forged in grade 316L stainless steel
Supplier technical detailSelf-locking twisted shackle with allen head pin forged in grade 316L stainless steel
Supplier material detailMaterials: 316 stainless steel grade
Supplier technical detailMaterials: 316 stainless steel grade
Supplier technical detailA: (inch) 2 11/64" / (mm) 55
Supplier technical detailB: (inch) 1 1/16" / (mm) 27
Supplier technical detailC: (inch) 15/32" / (mm) 12
Supplier technical detailD: (inch)15/16" / (mm) 24
Supplier technical detailD diameter: (inch) 15/32" / (mm) 12
Supplier technical detailE: (inch) 25/64" / (mm) 10
Supplier technical detailF: (inch) 1 1/2" / (mm) 38
Supplier technical detailM: (inch) 2 31/64" / (mm) 63
Working Load Limit (WLL)For industrial applications only. The safety factor is 5 times the breaking load.
ApplicationsIdeal to link chains and anchor On the halyard, avoids damaging the sails To be used when the clutter is reduced To be used when ample room is required
Size or rating stated in product name12mm
Size or rating stated in product name15/32"
Product-name configuration12mm Diameter
Product-name configuration15/32"
