Wichard Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32"

SKU: wic1395w  |  Manuf. Code: 1395W
$157.84 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

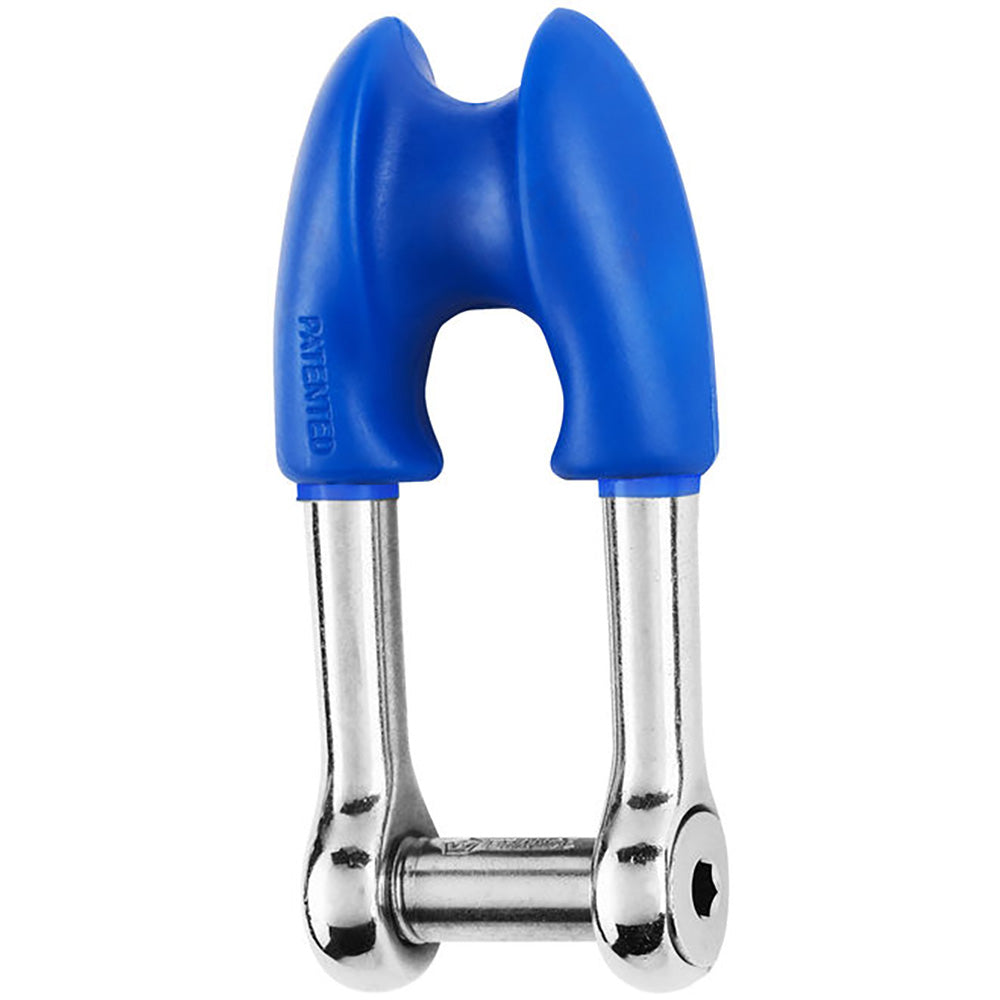

Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32"

Features:

  • Thimble shackle with allen head pin forged in grade 316L stainless steel
  • Allows a rope to be spliced without adding and additional thimble
  • With the captive pin, no risk to lose the pin
  • Outstanding working and breaking loads

Applications:

  • Mainsheet halyards
  • Max rope size: 16 mm

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 3350 / (kg) 1520
  • Breaking load: (lb) 11020 / (kg) 5000
  • Weight: (lb) 0.313 / (g) 142

Dimensions:

  • A: (inch) 2 1/64" / (mm) 51
  • B: (inch) 25/32" / (mm) 20
  • C: (inch) 25/64" / (mm) 10
  • D: (inch) 25/32" / (mm) 20
  • D diameter: (inch) 25/64" / (mm) 10
  • E: (inch) 5/16" / (mm) 8
  • F: (inch) 3 25/32" / (mm) 96
  • G: (inch) 1 39/64" / (mm) 41

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Mfr. Part # 1395W

FEATURES

  • Thimble shackle with allen head pin forged in grade 316L stainless steel
  • Allows a rope to be spliced without adding and additional thimble
  • With the captive pin, no risk to lose the pin
  • Outstanding working and breaking loads

TECHNICAL INFORMATION

SpecificationValue
ManufacturerWichard Marine
Manufacturer part number1395W
Max rope size16 mm
Materials316 stainless steel grade
Working load(lb) 3350 / (kg) 1520
Breaking load(lb) 11020 / (kg) 5000
Weight(lb) 0.313 / (g) 142
A(inch) 2 1/64" / (mm) 51
B(inch) 25/32" / (mm) 20
C(inch) 25/64" / (mm) 10
D(inch) 25/32" / (mm) 20
D diameter(inch) 25/64" / (mm) 10
E(inch) 5/16" / (mm) 8
F(inch) 3 25/32" / (mm) 96
G(inch) 1 39/64" / (mm) 41
Working Load (WL)For nautical applications
Working Load Limit (WLL)For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
Supplier technical detailThimble Shackle Allen Head Pin - 10mm Diameter - 13/32"
Supplier material detailThimble shackle with allen head pin forged in grade 316L stainless steel
Supplier technical detailThimble shackle with allen head pin forged in grade 316L stainless steel
Supplier technical detailMax rope size: 16 mm
Supplier material detailMaterials: 316 stainless steel grade
Supplier technical detailMaterials: 316 stainless steel grade
Supplier technical detailA: (inch) 2 1/64" / (mm) 51
Supplier technical detailB: (inch) 25/32" / (mm) 20
Supplier technical detailC: (inch) 25/64" / (mm) 10
Supplier technical detailD: (inch) 25/32" / (mm) 20
Supplier technical detailD diameter: (inch) 25/64" / (mm) 10
Supplier technical detailE: (inch) 5/16" / (mm) 8
Supplier technical detailF: (inch) 3 25/32" / (mm) 96
Supplier technical detailG: (inch) 1 39/64" / (mm) 41
ApplicationsMainsheet halyards Max rope size: 16 mm
Size or rating stated in product name10mm
Size or rating stated in product name13/32"
Product-name configuration10mm Diameter
Product-name configuration13/32"
