Wichard Captive Pin D Shackle - Diameter 5mm - 3/16"

SKU: wic1402w  |  Manuf. Code: 1402W
$27.02 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

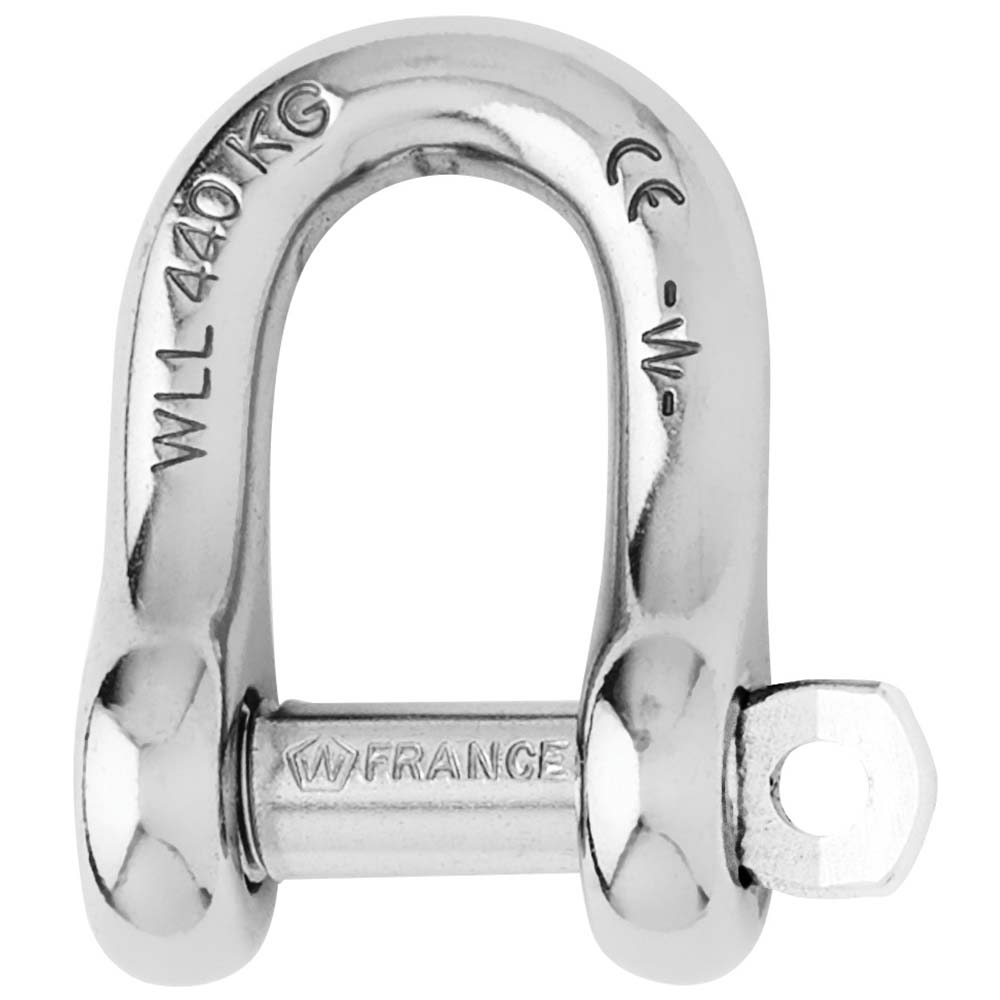

Captive Pin D Shackle - Diameter 5mm - 3/16"

Features:

  • Captive pin "D" shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads

Applications:

  • Standard applications of shackle
  • Attachment applications: blocks, head...

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 1050
  • WLL (lb) 660
  • Breaking load (lb) 3300
  • Weight (lb) 0.035

Dimensions (see 2nd image):

  • A (inch) 5/8"
  • B (inch) 25/64"
  • C (inch) 15/64"
  • D (inch) 7/16"
  • D diameter (inch) 13/64"
  • E (inch) 13/64"
  • F (inch) 7/16"
  • G (inch) 1-3/16"
  • H (inch) 1-1/16"

Mfr. Part # 1402W

FEATURES

  • Captive pin "D" shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads

TECHNICAL INFORMATION

SpecificationValue
ManufacturerWichard Marine
Manufacturer part number1402W
Attachment applicationsblocks, head...
Materials316 stainless steel grade
Working load (lb)1050
WLL (lb)660
Breaking load (lb)3300
Weight (lb)0.035
Supplier technical detailCaptive Pin D Shackle - Diameter 5mm - 3/16"
Supplier material detailCaptive pin "D" shackle forged in grade 316L stainless steel
Supplier technical detailCaptive pin "D" shackle forged in grade 316L stainless steel
Supplier material detailMaterials 316 stainless steel grade
Supplier technical detailMaterials 316 stainless steel grade
Supplier technical detailD diameter (inch) 13/64"
Supplier technical detailG (inch) 1-3/16"
Supplier technical detailH (inch) 1-1/16"
ApplicationsStandard applications of shackle Attachment applications: blocks, head...
Size or rating stated in product name5mm
Size or rating stated in product name3/16"
Product-name configurationDiameter 5mm
Product-name configuration3/16"
