Wichard Captive Pin Long D Shackle - Diameter 8mm - 5/16"

SKU: wic1414w  |  Manuf. Code: 1414W
$66.85 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

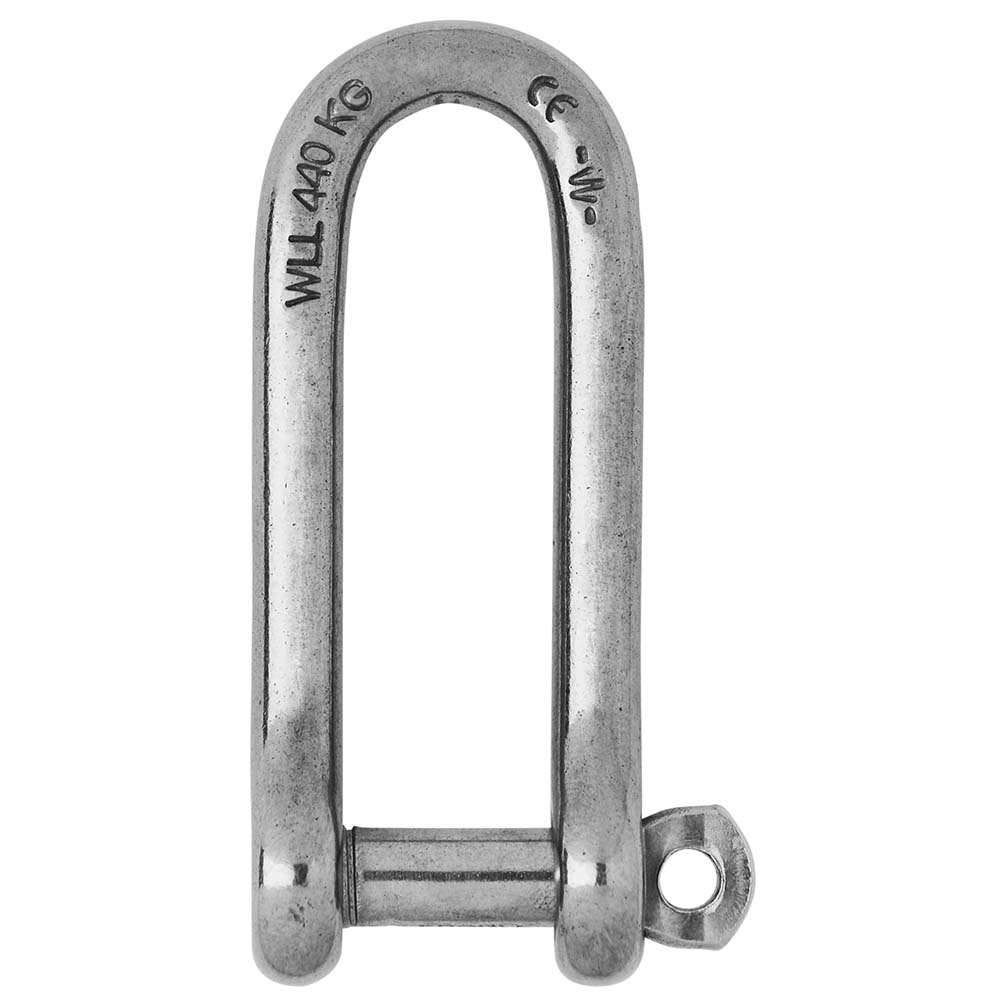

Captive Pin Long D Shackle - Diameter 8mm - 5/16"

Features:

  • Captive pin long "D" shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads

Applications:

  • Standard applications of shackle requiring more length
  • Attachment applications: blocks, head...

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 2200
  • WLL (lb) 1580
  • Breaking load (lb) 7930
  • Weight (lb) 0.203

Dimensions (see 2nd image):

  • A (inch) 2-7/16"
  • B (inch) 5/8"
  • C (inch) 23/64"
  • D (inch) 43/64"
  • D diameter (inch) 5/16"
  • E (inch) 5/16"
  • F (inch) 3-15/64"
  • G (inch) 1-11/16"

Mfr. Part # 1414W

FEATURES

  • Captive pin long "D" shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads

TECHNICAL INFORMATION

SpecificationValue
ManufacturerWichard Marine
Manufacturer part number1414W
Attachment applicationsblocks, head...
Materials316 stainless steel grade
Working load (lb)2200
WLL (lb)1580
Breaking load (lb)7930
Weight (lb)0.203
Supplier technical detailCaptive Pin Long D Shackle - Diameter 8mm - 5/16"
Supplier material detailCaptive pin long "D" shackle forged in grade 316L stainless steel
Supplier technical detailCaptive pin long "D" shackle forged in grade 316L stainless steel
Supplier material detailMaterials 316 stainless steel grade
Supplier technical detailMaterials 316 stainless steel grade
Supplier technical detailA (inch) 2-7/16"
Supplier technical detailD diameter (inch) 5/16"
Supplier technical detailF (inch) 3-15/64"
Supplier technical detailG (inch) 1-11/16"
ApplicationsStandard applications of shackle requiring more length Attachment applications: blocks, head...
Size or rating stated in product name8mm
Size or rating stated in product name5/16"
Product-name configurationDiameter 8mm
Product-name configuration5/16"
