Wichard Captive Pin Twisted Shackle - Diameter 5mm - 3/16"

SKU: wic1422w  |  Manuf. Code: 1422W
$34.65 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

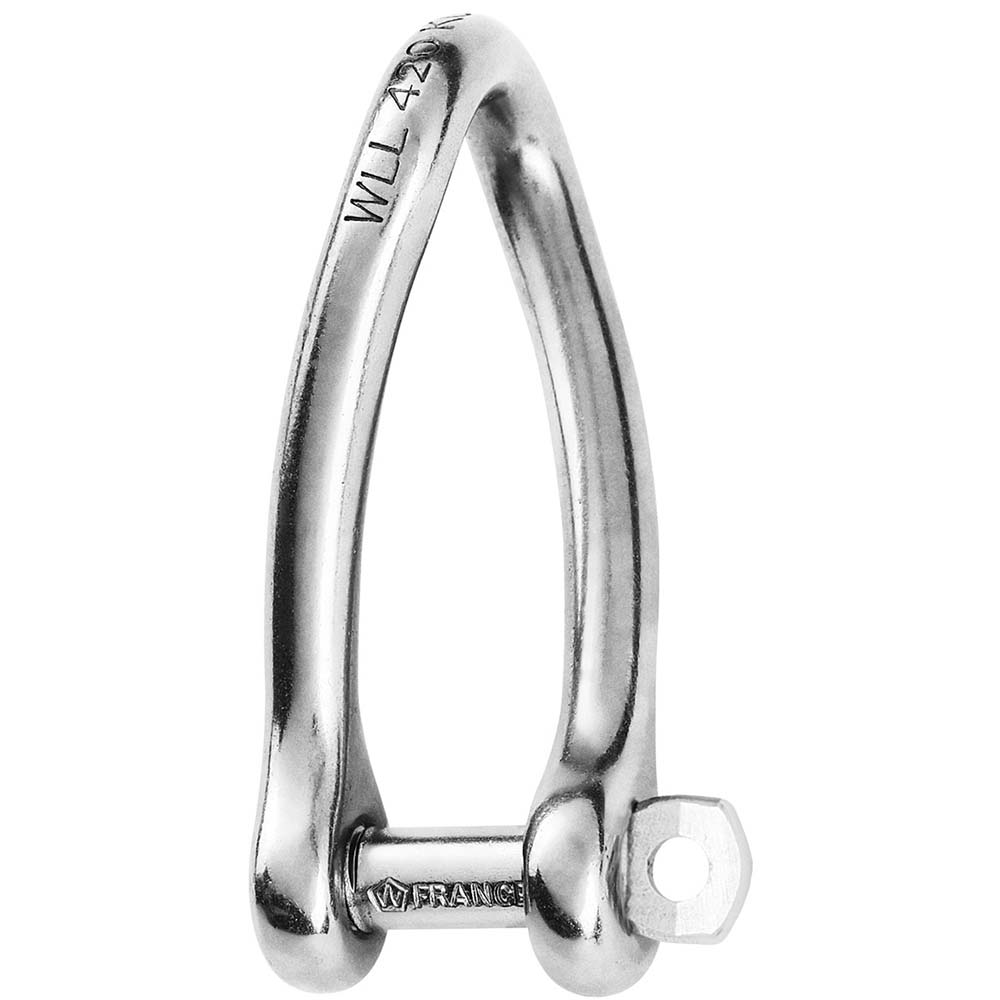

Captive Pin Twisted Shackle - Diameter 5mm - 3/16"

Features:

  • Captive pin twisted shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • Single-handed operation for more safety
  • Part # 1422 is not suitable for lifting applications

Applications:

  • Perfect for application where a 90° angle twist setup is required
  • Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 1050
  • Breaking load (lb) 3300
  • Weight (lb) 0.051

Dimensions (see 2nd image):

  • A (inch) 1-29/64"
  • B (inch) 25/64"
  • C (inch) 15/64"
  • D (inch) 7/16"
  • D diameter (inch) 13/64"
  • E (inch) 13/64"
  • F (inch) 1-31/32"
  • G (inch) 1-1/16"

Mfr. Part # 1422W

FEATURES

  • Captive pin twisted shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • Single-handed operation for more safety
  • Part # 1422 is not suitable for lifting applications

TECHNICAL INFORMATION

SpecificationValue
ManufacturerWichard Marine
Manufacturer part number1422W
Materials316 stainless steel grade
Working load (lb)1050
Breaking load (lb)3300
Weight (lb)0.051
Supplier technical detailCaptive Pin Twisted Shackle - Diameter 5mm - 3/16"
Supplier material detailCaptive pin twisted shackle forged in grade 316L stainless steel
Supplier technical detailCaptive pin twisted shackle forged in grade 316L stainless steel
Supplier application or construction detailPart # 1422 is not suitable for lifting applications
Supplier material detailMaterials 316 stainless steel grade
Supplier technical detailMaterials 316 stainless steel grade
Supplier technical detailA (inch) 1-29/64"
Supplier technical detailD diameter (inch) 13/64"
Supplier technical detailF (inch) 1-31/32"
Supplier technical detailG (inch) 1-1/16"
ApplicationsPerfect for application where a 90° angle twist setup is required Often used to attach an unarticulated part (block on a rail) or on purchases
Size or rating stated in product name5mm
Size or rating stated in product name3/16"
Product-name configurationDiameter 5mm
Product-name configuration3/16"
