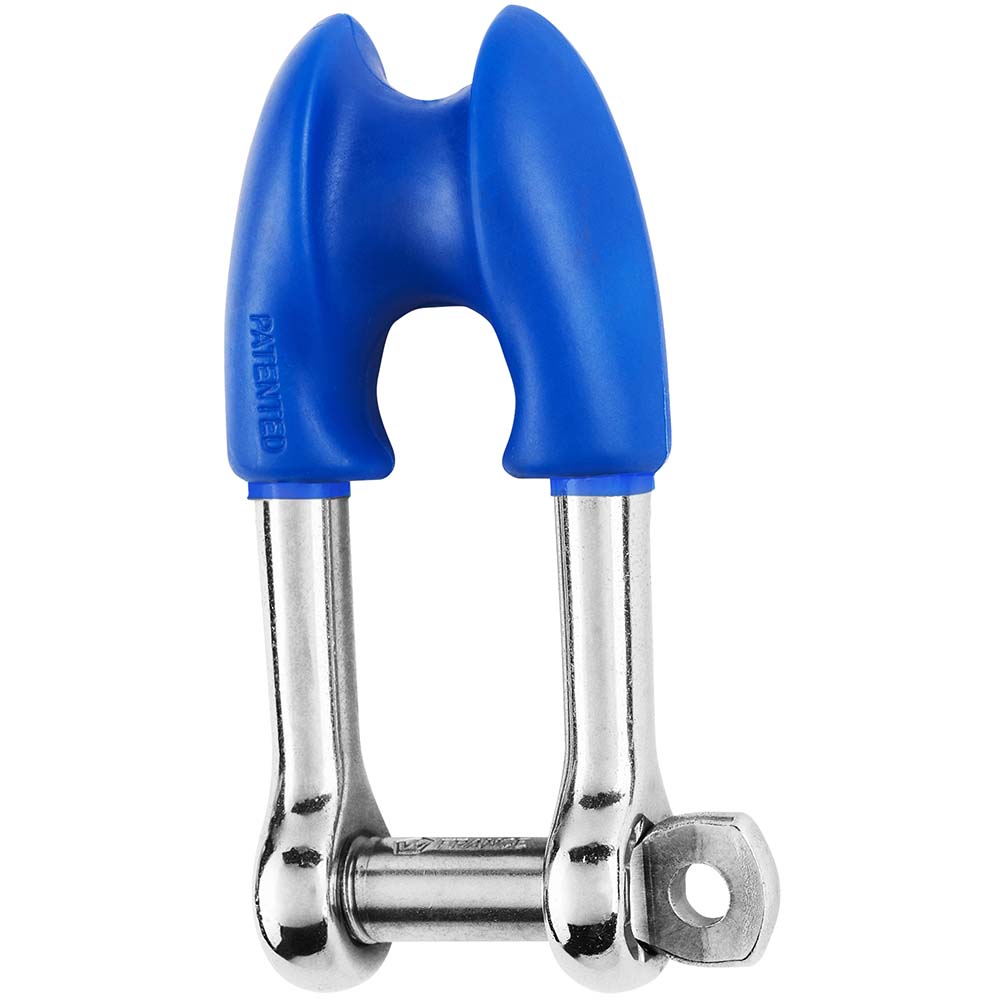

Wichard Thimble Shackle - Captive Pin - Diameter 8mm - 5/16"

SKU: wic1494w  |  Manuf. Code: 1494W
$89.73 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Thimble Shackle - Captive Pin - Diameter 8mm - 5/16"

Features:

  • Thimble shackle with captive pin forged in grade 316L stainless steel
  • Allows to spliced a rope without adding an additional thimble
  • With the captive pin, no risk to lose the pin
  • Outstanding working and breaking loads

Applications:

  • Mainsheet halyards
  • Max rope size: 12mm

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 2200
  • Breaking load (lb) 6610
  • Weight (lb) 0.172

Dimensions (see 2nd image):

  • A (inch) 1-39/64"
  • B (inch) 5/8"
  • C (inch) 5/16"
  • D (inch) 5/8"
  • D diameter (inch) 5/16"
  • E (inch) 9/32"
  • F (inch) 2-63/64"
  • G (inch) 1-21/32"

Mfr. Part # 1494W

FEATURES

  • Thimble shackle with captive pin forged in grade 316L stainless steel
  • Allows to spliced a rope without adding an additional thimble
  • With the captive pin, no risk to lose the pin
  • Outstanding working and breaking loads

TECHNICAL INFORMATION

SpecificationValue
ManufacturerWichard Marine
Manufacturer part number1494W
Max rope size12mm
Materials316 stainless steel grade
Working load (lb)2200
Breaking load (lb)6610
Weight (lb)0.172
Supplier technical detailThimble Shackle - Captive Pin - Diameter 8mm - 5/16"
Supplier material detailThimble shackle with captive pin forged in grade 316L stainless steel
Supplier technical detailThimble shackle with captive pin forged in grade 316L stainless steel
Supplier technical detailMax rope size: 12mm
Supplier material detailMaterials 316 stainless steel grade
Supplier technical detailMaterials 316 stainless steel grade
Supplier technical detailA (inch) 1-39/64"
Supplier technical detailD diameter (inch) 5/16"
Supplier technical detailF (inch) 2-63/64"
Supplier technical detailG (inch) 1-21/32"
ApplicationsMainsheet halyards Max rope size: 12mm
Size or rating stated in product name8mm
Size or rating stated in product name5/16"
Product-name configurationCaptive Pin
Product-name configurationDiameter 8mm
Product-name configuration5/16"
