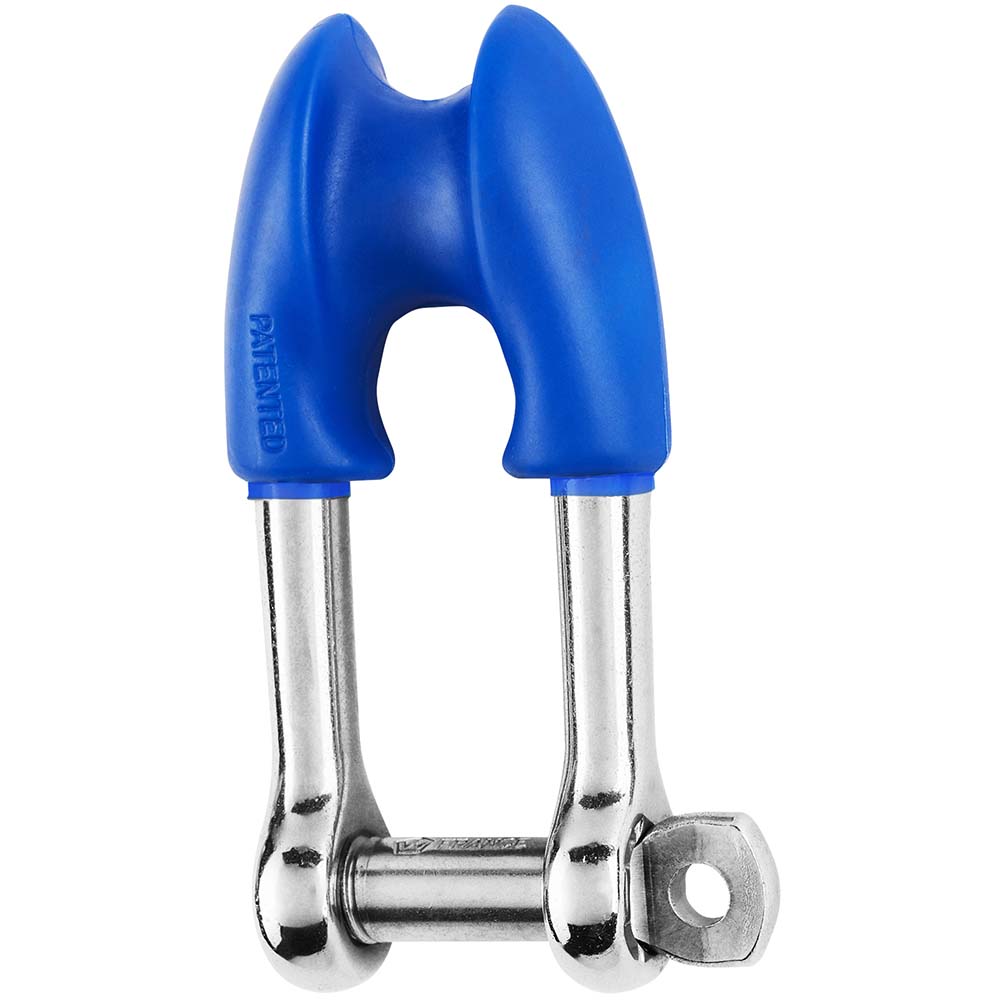

Wichard Thimble Shackle - Captive Pin - Diameter 10mm - 13/32"

SKU: wic1495w  |  Manuf. Code: 1495W
$139.14 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Thimble Shackle - Captive Pin - Diameter 10mm - 13/32"

Features:

  • Thimble shackle with captive pin forged in grade 316L stainless steel
  • Allows to spliced a rope without adding an additional thimble
  • With the captive pin, no risk to lose the pin
  • Outstanding working and breaking loads

Applications:

  • Mainsheet halyards
  • Max rope size: 16 mm

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 3350
  • Breaking load (lb) 11020
  • Weight (lb) 0.322

Dimensions (see 2nd image):

  • A (inch) 2-1/64"
  • B (inch) 25/32"
  • C (inch) 25/64"
  • D (inch) 25/32"
  • D diameter (inch) 25/64"
  • E (inch) 23/64"
  • F (inch) 3-47/64"
  • G (inch) 2-1/8"

Mfr. Part # 1495W

FEATURES

  • Thimble shackle with captive pin forged in grade 316L stainless steel
  • Allows to spliced a rope without adding an additional thimble
  • With the captive pin, no risk to lose the pin
  • Outstanding working and breaking loads

TECHNICAL INFORMATION

SpecificationValue
ManufacturerWichard Marine
Manufacturer part number1495W
Max rope size16 mm
Materials316 stainless steel grade
Working load (lb)3350
Breaking load (lb)11020
Weight (lb)0.322
Supplier technical detailThimble Shackle - Captive Pin - Diameter 10mm - 13/32"
Supplier material detailThimble shackle with captive pin forged in grade 316L stainless steel
Supplier technical detailThimble shackle with captive pin forged in grade 316L stainless steel
Supplier technical detailMax rope size: 16 mm
Supplier material detailMaterials 316 stainless steel grade
Supplier technical detailMaterials 316 stainless steel grade
Supplier technical detailA (inch) 2-1/64"
Supplier technical detailD diameter (inch) 25/64"
Supplier technical detailF (inch) 3-47/64"
ApplicationsMainsheet halyards Max rope size: 16 mm
Size or rating stated in product name10mm
Size or rating stated in product name13/32"
Product-name configurationCaptive Pin
Product-name configurationDiameter 10mm
Product-name configuration13/32"
