Wichard HR Snap Shackle With Thimble Eye - 110mm Length - 4-21/64"

SKU: wic2495w  |  Manuf. Code: 2495W
$135.45 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

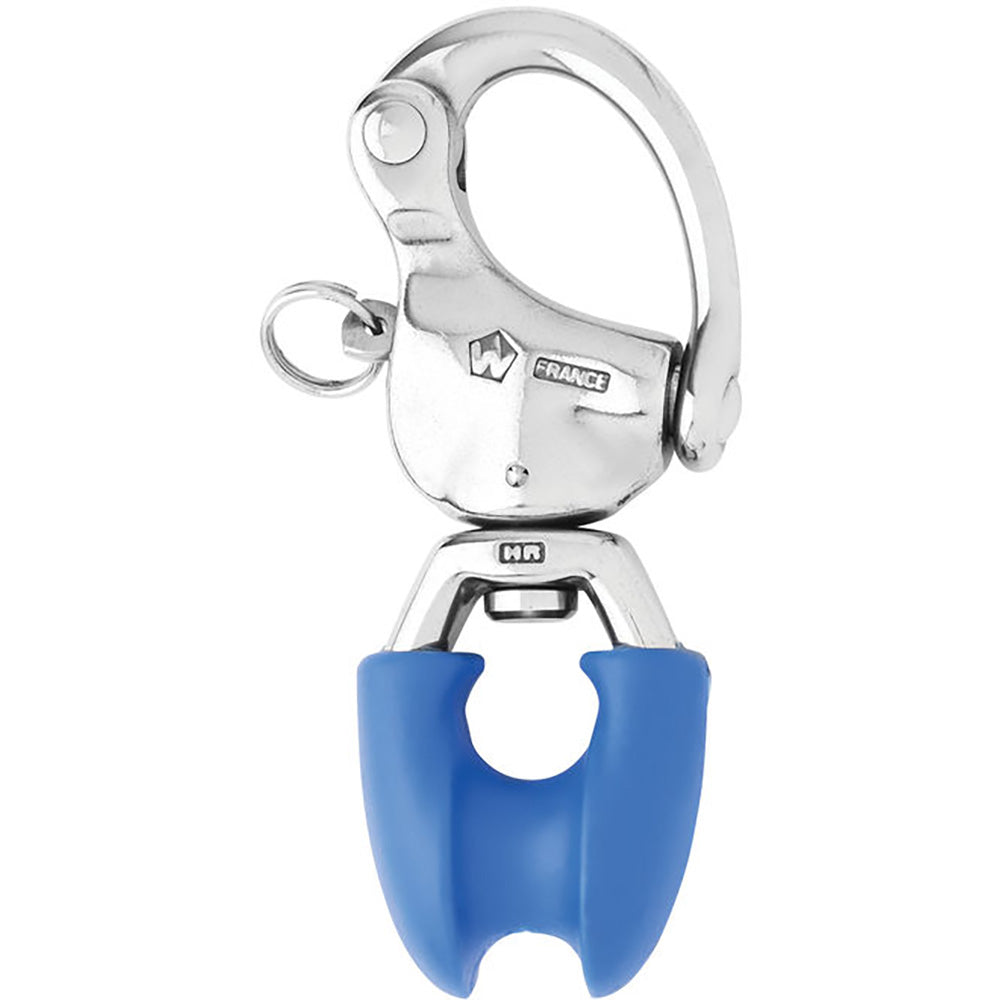

HR Snap Shackle With Thimble Eye - 110mm Length - 4-21/64"

Features:

  • HR Forged snap shackle (Grade 17.4 PH stainless steel) with thimble eye
  • Allows to splice the halyard directly onto the snap shackle (without using a thimble)
  • Avoids the wear of the ropes
  • Free rotation of the snap shackle thanks to the swivel eye
  • The plunger pin is set captive into the hook and cannot become detached
  • Excellent working and breaking loads > Easy to open by pulling the plunger pin (possible to attach a lanyard)

Applications:

  • Snap shackle applications
  • Allows to splice the halyard
  • Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 2820 / (kg) 1280
  • Breaking load: (lb) 5290 / (kg) 2400

Dimensions:

  • A: (inch) 53/64" / (mm) 110
  • B: (inch) 35/64" / (mm) 21
  • Length: (inch) 4 21/64" / (mm) 14

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual

Mfr. Part # 2495W

FEATURES

  • HR Forged snap shackle (Grade 17.4 PH stainless steel) with thimble eye
  • Allows to splice the halyard directly onto the snap shackle (without using a thimble)
  • Avoids the wear of the ropes
  • Free rotation of the snap shackle thanks to the swivel eye
  • The plunger pin is set captive into the hook and cannot become detached
  • Excellent working and breaking loads > Easy to open by pulling the plunger pin (possible to attach a lanyard)

TECHNICAL INFORMATION

SpecificationValue
ManufacturerWichard Marine
Manufacturer part number2495W
MaterialsHR 17.4 PH stainless steel grade
Working load(lb) 2820 / (kg) 1280
Breaking load(lb) 5290 / (kg) 2400
A(inch) 53/64" / (mm) 110
B(inch) 35/64" / (mm) 21
Length(inch) 4 21/64" / (mm) 14
Working Load (WL)For nautical applications
Working Load Limit (WLL)For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
Supplier technical detailHR Snap Shackle With Thimble Eye - 110mm Length - 4-21/64"
Supplier material detailHR Forged snap shackle (Grade 17.4 PH stainless steel) with thimble eye
Supplier technical detailHR Forged snap shackle (Grade 17.4 PH stainless steel) with thimble eye
Supplier material detailMaterials: HR 17.4 PH stainless steel grade
Supplier technical detailMaterials: HR 17.4 PH stainless steel grade
Supplier technical detailA: (inch) 53/64" / (mm) 110
Supplier technical detailB: (inch) 35/64" / (mm) 21
Supplier technical detailLength: (inch) 4 21/64" / (mm) 14
ApplicationsSnap shackle applications Allows to splice the halyard Applications requiring a free rotation of the snap shackle (for a better sail orientation)
Size or rating stated in product name110mm
Size or rating stated in product name4-21/64"
Product-name configuration110mm Length
Product-name configuration4-21/64"
