Wichard HR Quick Release Snap Shackle With Swivel Eye - 130mm Length - 5-1/8"

SKU: wic2677w  |  Manuf. Code: 2677W
List Price:  $476.65 USD
$405.15 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

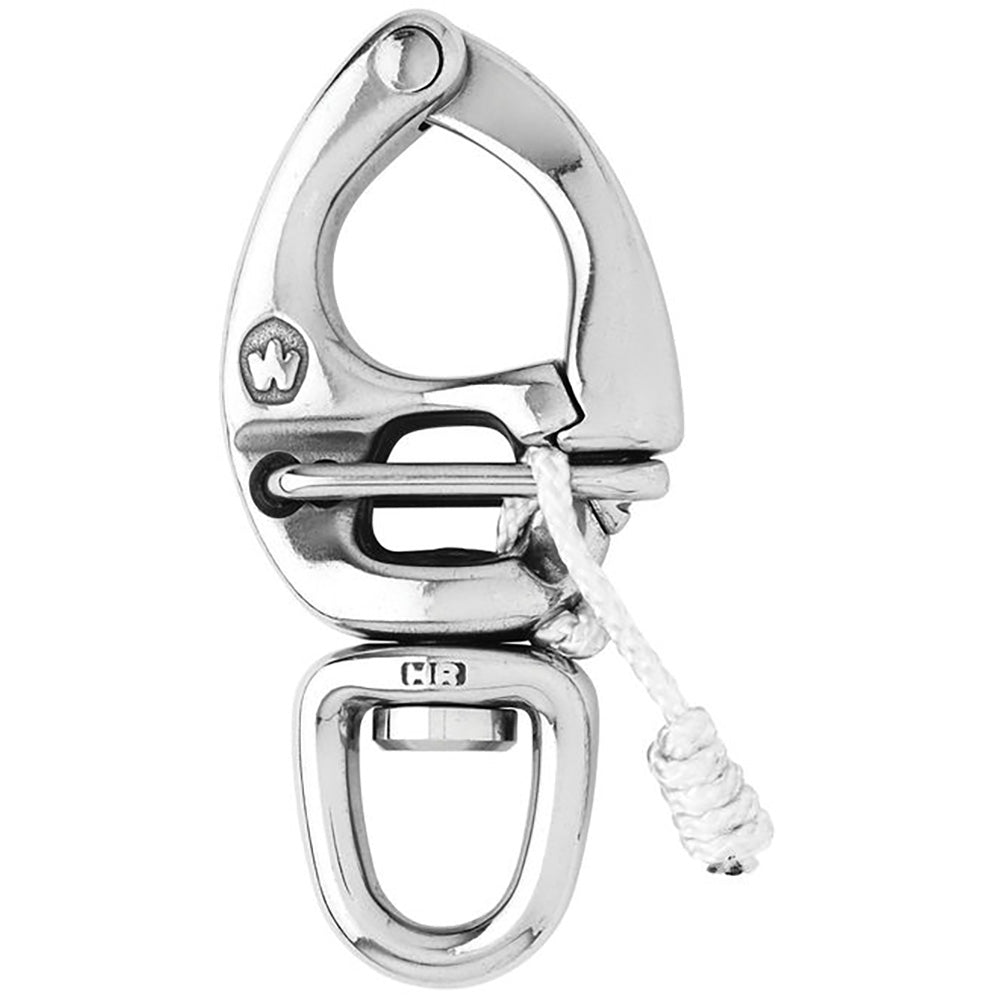

HR Quick Release Snap Shackle With Swivel Eye - 130mm Length - 5-1/8"

Features:

  • HR forged (17.4 PH) quick-release snap shackle with swivel eye
  • The opening is made by pulling the lanyard
  • Perfect to attach one sheet or halyard
  • Outstanding working and breaking loads
  • Free rotation of the snap shackle thanks to the swivel

Applications:

  • For spinnaker operations
  • Perfect for spinnaker sheets and halyards

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 7050 / (kg) 3200
  • Breaking load: (lb) 13880 / (kg) 6300
  • Weight: (lb) 0.818 / (g) 371

Dimensions:

  • A: (inch) 1 3/16" / (mm) 30
  • B: (inch) 25/32" / (mm) 20
  • Length: (inch) 5 1/8" / (mm) 130

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual

Mfr. Part # 2677W

FEATURES

  • HR forged (17.4 PH) quick-release snap shackle with swivel eye
  • The opening is made by pulling the lanyard
  • Perfect to attach one sheet or halyard
  • Outstanding working and breaking loads
  • Free rotation of the snap shackle thanks to the swivel

TECHNICAL INFORMATION

SpecificationValue
ManufacturerWichard Marine
Manufacturer part number2677W
MaterialsHR 17.4 PH stainless steel grade
Working load(lb) 7050 / (kg) 3200
Breaking load(lb) 13880 / (kg) 6300
Weight(lb) 0.818 / (g) 371
A(inch) 1 3/16" / (mm) 30
B(inch) 25/32" / (mm) 20
Length(inch) 5 1/8" / (mm) 130
Working Load (WL)For nautical applications
Working Load Limit (WLL)For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
Supplier technical detailHR Quick Release Snap Shackle With Swivel Eye - 130mm Length - 5-1/8"
Supplier material detailMaterials: HR 17.4 PH stainless steel grade
Supplier technical detailMaterials: HR 17.4 PH stainless steel grade
Supplier technical detailA: (inch) 1 3/16" / (mm) 30
Supplier technical detailB: (inch) 25/32" / (mm) 20
Supplier technical detailLength: (inch) 5 1/8" / (mm) 130
ApplicationsFor spinnaker operations Perfect for spinnaker sheets and halyards
Size or rating stated in product name130mm
Size or rating stated in product name5-1/8"
Product-name configuration130mm Length
Product-name configuration5-1/8"
