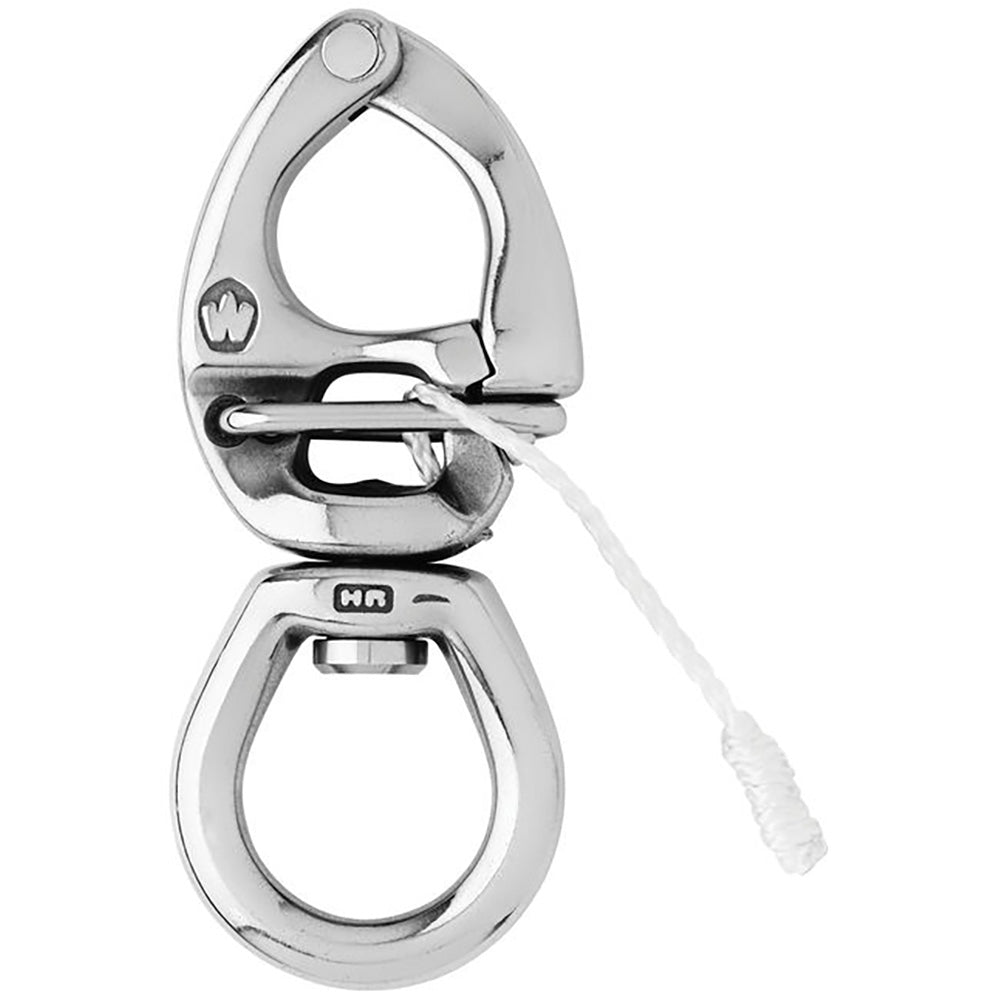

Wichard HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64"

SKU: wic2777w  |  Manuf. Code: 2777W
List Price:  $507.27 USD
$431.18 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64"

Features:

  • HR forged (17.4 PH) quick-release snap shackle with large bail
  • The opening is made by pulling the lanyard
  • Perfect to attach several lines (spinnaker sheets...)
  • Outstanding working and breaking loads
  • Free rotation of the snap shackle thanks to the swivel

Applications:

  • For spinnaker operations
  • Perfect to attach several lines: spinnaker sheets...

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 6170 / (kg) 2800
  • Breaking load: (lb) 13880 / (kg) 6300
  • Weight: (lb) 0.873 / (g) 396

Dimensions:

  • A: (inch) 1 3/16" / (mm) 30
  • B: (inch) 1 25/64" / (mm) 35.5
  • Length: (inch) 5 45/64" / (mm) 145

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual

Mfr. Part # 2777W

FEATURES

  • HR forged (17.4 PH) quick-release snap shackle with large bail
  • The opening is made by pulling the lanyard
  • Perfect to attach several lines (spinnaker sheets...)
  • Outstanding working and breaking loads
  • Free rotation of the snap shackle thanks to the swivel

TECHNICAL INFORMATION

SpecificationValue
ManufacturerWichard Marine
Manufacturer part number2777W
Perfect to attach several linesspinnaker sheets...
MaterialsHR 17.4 PH stainless steel grade
Working load(lb) 6170 / (kg) 2800
Breaking load(lb) 13880 / (kg) 6300
Weight(lb) 0.873 / (g) 396
A(inch) 1 3/16" / (mm) 30
B(inch) 1 25/64" / (mm) 35.5
Length(inch) 5 45/64" / (mm) 145
Working Load (WL)For nautical applications
Working Load Limit (WLL)For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
Supplier technical detailHR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64"
Supplier material detailMaterials: HR 17.4 PH stainless steel grade
Supplier technical detailMaterials: HR 17.4 PH stainless steel grade
Supplier technical detailA: (inch) 1 3/16" / (mm) 30
Supplier technical detailB: (inch) 1 25/64" / (mm) 35.5
Supplier technical detailLength: (inch) 5 45/64" / (mm) 145
ApplicationsFor spinnaker operations Perfect to attach several lines: spinnaker sheets...
Size or rating stated in product name5-45/64"
Product-name configuration5-45/64"
