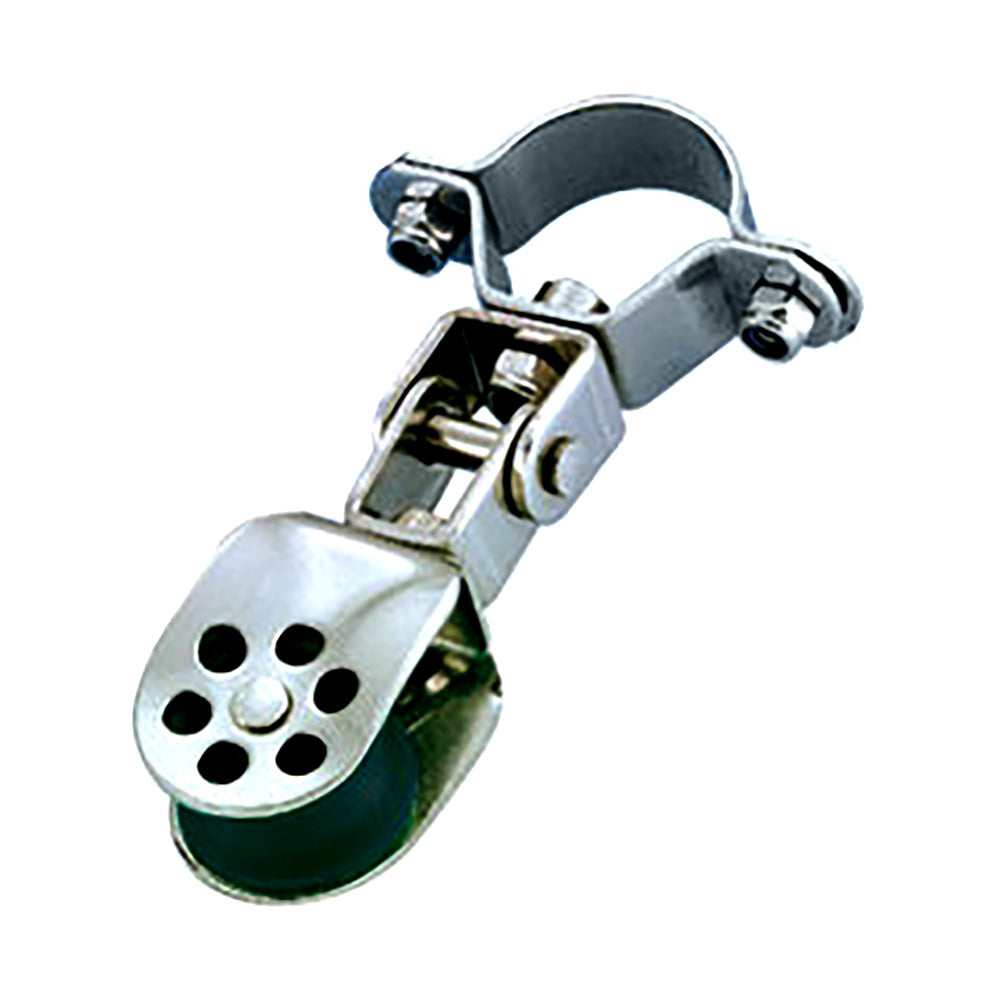

Wichard Stainless Steel Single Block - 25mm Sheave Diameter f/25mm Stanchion Pivoting

SKU: wic30125w  |  Manuf. Code: 30125W
$59.36 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Stainless Steel Single Block - 25mm Sheave Diameter for 25mm Stanchion Pivoting

  • A single block intended for use on a dinghy. The block is light, reliable, and has good performance.

Applications:

  • For stanchion applications - furling system line

Specifications:

  • Materials Composite sheave and 316L stainless steel grade cheeks
  • Rope size: (inch) 5/16"-25/64" / (mm) 8-10
  • Length: (inch) 3 47/64" / (mm) 95
  • Width: (inch) 2 3/32" / (mm) 53
  • Thickness: (inch) 53/64" / (mm) 21
  • Sheave Diameter: (inch) 63/64" / (mm) 25
  • Working load: (lb) 610 / (mm) 280
  • Breaking load: (lb) 880 / (mm) 400
  • Weight: (lb) 0.154 / (g) 70

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Mfr. Part # 30125W

FEATURES

  • A single block intended for use on a dinghy. The block is light, reliable, and has good performance.
  • For stanchion applications - furling system line
  • Materials Composite sheave and 316L stainless steel grade cheeks
  • Rope size: (inch) 5/16"-25/64" / (mm) 8-10
  • Length: (inch) 3 47/64" / (mm) 95
  • Width: (inch) 2 3/32" / (mm) 53
  • Thickness: (inch) 53/64" / (mm) 21

TECHNICAL INFORMATION

SpecificationValue
ManufacturerWichard Marine
Manufacturer part number30125W
MaterialsComposite sheave and 316L stainless steel grade cheeks
Rope size(inch) 5/16"-25/64" / (mm) 8-10
Length(inch) 3 47/64" / (mm) 95
Width(inch) 2 3/32" / (mm) 53
Thickness(inch) 53/64" / (mm) 21
Sheave Diameter(inch) 63/64" / (mm) 25
Working load(lb) 610 / (mm) 280
Breaking load(lb) 880 / (mm) 400
Weight(lb) 0.154 / (g) 70
Working Load (WL)For nautical applications
Working Load Limit (WLL)For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
Supplier material detailStainless Steel Single Block - 25mm Sheave Diameter for 25mm Stanchion Pivoting
Supplier technical detailStainless Steel Single Block - 25mm Sheave Diameter for 25mm Stanchion Pivoting
Supplier application or construction detailA single block intended for use on a dinghy. The block is light, reliable, and has good performance.
Supplier material detailMaterials Composite sheave and 316L stainless steel grade cheeks
Supplier technical detailMaterials Composite sheave and 316L stainless steel grade cheeks
Supplier technical detailRope size: (inch) 5/16"-25/64" / (mm) 8-10
Supplier technical detailLength: (inch) 3 47/64" / (mm) 95
Supplier technical detailWidth: (inch) 2 3/32" / (mm) 53
Supplier technical detailThickness: (inch) 53/64" / (mm) 21
Supplier technical detailSheave Diameter: (inch) 63/64" / (mm) 25
ApplicationsFor stanchion applications - furling system line
Material stated in product nameStainless Steel
Size or rating stated in product name25mm
Application stated in product name25mm Stanchion Pivoting
Product-name configuration25mm Sheave Diameter f/25mm Stanchion Pivoting
