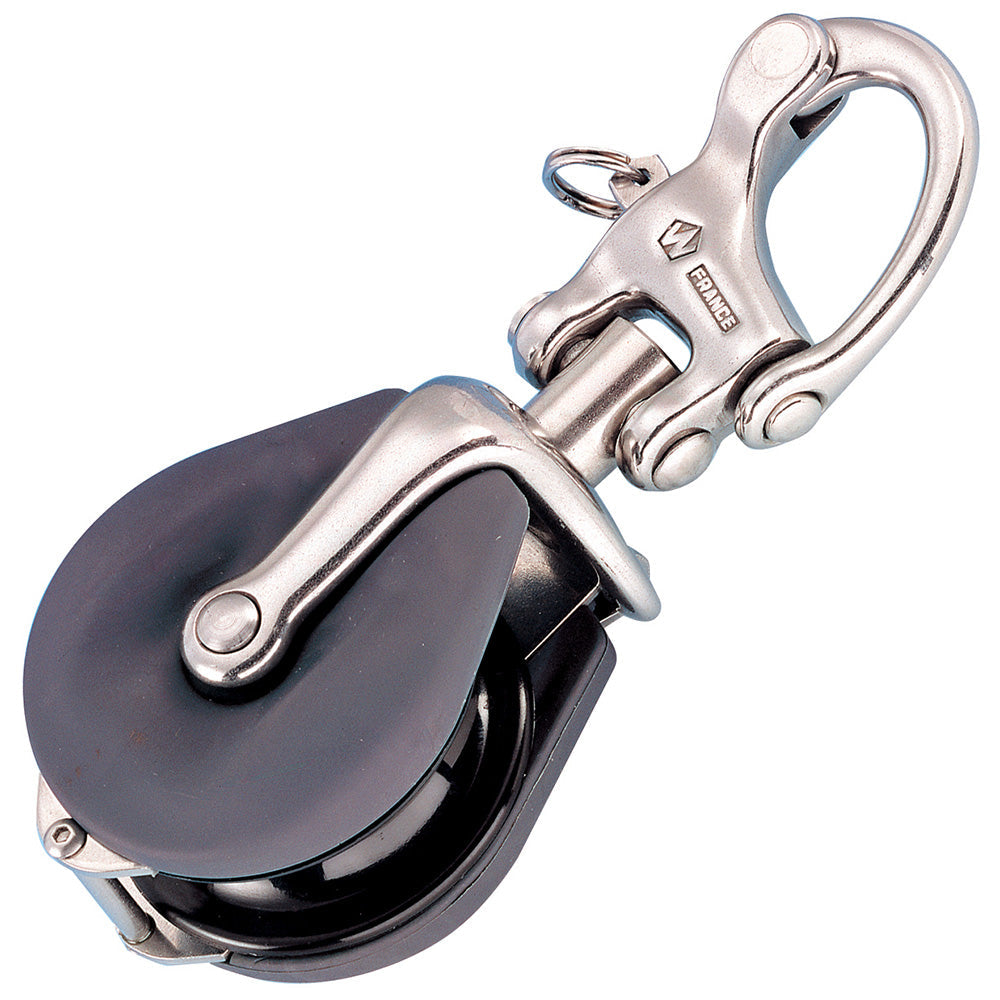

Wichard Snatch Block w/Snap Shackle - Max Rope Size 18mm (23/32")

SKU: wic35500w  |  Manuf. Code: 35500W
List Price:  $537.48 USD
$456.86 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Snatch Block with Snap Shackle - Max Rope Size 18mm (23/32")

Features:

  • Free rotation thanks to snap shackle
  • Very strong closing system
  • Easy opening by simply pulling on the plunger pin
  • Shock and scratch-resistant thanks to the elastomer molded cheeks

Applications:

  • Changing sheets
  • Spinnaker sheet deflector blocks

Materials:

  • HR 17.4 PH forged stainless steel arm
  • Elastomer molded cheeks
  • Composite sheave

Specifications:

  • Rope size: (inch) 23/32" / (mm) 18
  • Length: (inch) 6 7/64" / (mm) 155
  • Width: (inch) 2 21/64" / (mm) 59
  • Thickness: (inch) 1 59/64" / (mm) 49
  • Working Load: (lb) 2640 / (kg) 1200
  • Breaking Load: (lb) 5510 / (kg) 2500
  • Weight: (lb) 0.913 / (g) 414

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Mfr. Part # 35500W

FEATURES

  • Free rotation thanks to snap shackle
  • Very strong closing system
  • Easy opening by simply pulling on the plunger pin
  • Shock and scratch-resistant thanks to the elastomer molded cheeks
  • Changing sheets
  • Spinnaker sheet deflector blocks
  • HR 17.4 PH forged stainless steel arm

TECHNICAL INFORMATION

SpecificationValue
ManufacturerWichard Marine
Manufacturer part number35500W
Rope size(inch) 23/32" / (mm) 18
Length(inch) 6 7/64" / (mm) 155
Width(inch) 2 21/64" / (mm) 59
Thickness(inch) 1 59/64" / (mm) 49
Working Load(lb) 2640 / (kg) 1200
Breaking Load(lb) 5510 / (kg) 2500
Weight(lb) 0.913 / (g) 414
Working Load (WL)For nautical applications
Working Load Limit (WLL)For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
Supplier technical detailSnatch Block with Snap Shackle - Max Rope Size 18mm (23/32")
Supplier material detailHR 17.4 PH forged stainless steel arm
Supplier technical detailHR 17.4 PH forged stainless steel arm
Supplier technical detailRope size: (inch) 23/32" / (mm) 18
Supplier technical detailLength: (inch) 6 7/64" / (mm) 155
Supplier technical detailWidth: (inch) 2 21/64" / (mm) 59
Supplier technical detailThickness: (inch) 1 59/64" / (mm) 49
ApplicationsChanging sheets Spinnaker sheet deflector blocks
MaterialsHR 17.4 PH forged stainless steel arm Elastomer molded cheeks Composite sheave
Size or rating stated in product name18mm
Size or rating stated in product name23/32"
Product-name configurationMax Rope Size 18mm (23/32")
