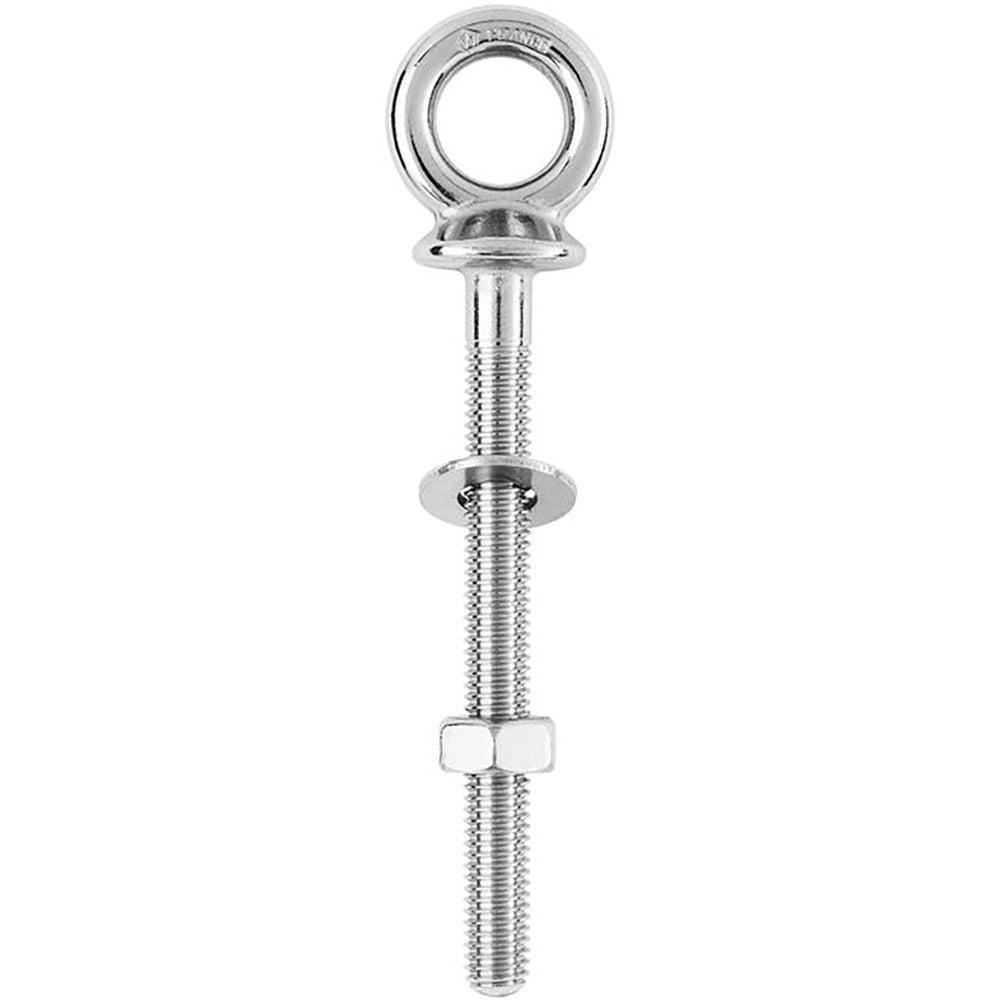

Wichard Eye Bolt - M10 x 150mm - Length 100mm

SKU: wic6495w  |  Manuf. Code: 6495W
$77.67 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Eye Bolt - M10 x 150mm - Length 100mm

Features:

  • A complete range of single piece forged products for fastenings applications
  • Outstanding working and breaking loads
  • Available in different sizes
  • Max tightening torque: 36 Nm

Applications:

  • Various fastening applications
  • Towing application
  • Waterskiing lines attachment

Specifications:

  • Materials: 316L stainless steel grade
  • Working load: (lb) 3520 / (kg) 1600
  • Breaking load: (lb) 5950 / (kg) 2700
  • Weight: (lb) 0.216 / (g) 98

Dimensions:

  • A: (mm) M10 x 150
  • B: (inch) 5/8" / (mm) 16
  • C: (inch) 1 27/64" / (mm) 36
  • D: (inch) 9/32" / (mm) 7
  • E: (inch) 63/64" / (mm) 25
  • F: (inch) 3 15/16" / (mm) 100
  • G: (inch) 3 15/32" / (mm) 88

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Mfr. Part # 6495W

FEATURES

  • A complete range of single piece forged products for fastenings applications
  • Outstanding working and breaking loads
  • Available in different sizes
  • Max tightening torque: 36 Nm
  • Various fastening applications
  • Towing application
  • Waterskiing lines attachment

TECHNICAL INFORMATION

SpecificationValue
ManufacturerWichard Marine
Manufacturer part number6495W
Max tightening torque36 Nm
Materials316L stainless steel grade
Working load(lb) 3520 / (kg) 1600
Breaking load(lb) 5950 / (kg) 2700
Weight(lb) 0.216 / (g) 98
A(mm) M10 x 150
B(inch) 5/8" / (mm) 16
C(inch) 1 27/64" / (mm) 36
D(inch) 9/32" / (mm) 7
E(inch) 63/64" / (mm) 25
F(inch) 3 15/16" / (mm) 100
G(inch) 3 15/32" / (mm) 88
Working Load (WL)For nautical applications
Working Load Limit (WLL)For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
Supplier technical detailEye Bolt - M10 x 150mm - Length 100mm
Supplier material detailMaterials: 316L stainless steel grade
Supplier technical detailMaterials: 316L stainless steel grade
Supplier technical detailB: (inch) 5/8" / (mm) 16
Supplier technical detailC: (inch) 1 27/64" / (mm) 36
Supplier technical detailD: (inch) 9/32" / (mm) 7
Supplier technical detailE: (inch) 63/64" / (mm) 25
Supplier technical detailF: (inch) 3 15/16" / (mm) 100
Supplier technical detailG: (inch) 3 15/32" / (mm) 88
ApplicationsVarious fastening applications Towing application Waterskiing lines attachment
Size or rating stated in product name150mm
Size or rating stated in product name100mm
Product-name configurationM10 x 150mm
Product-name configurationLength 100mm
