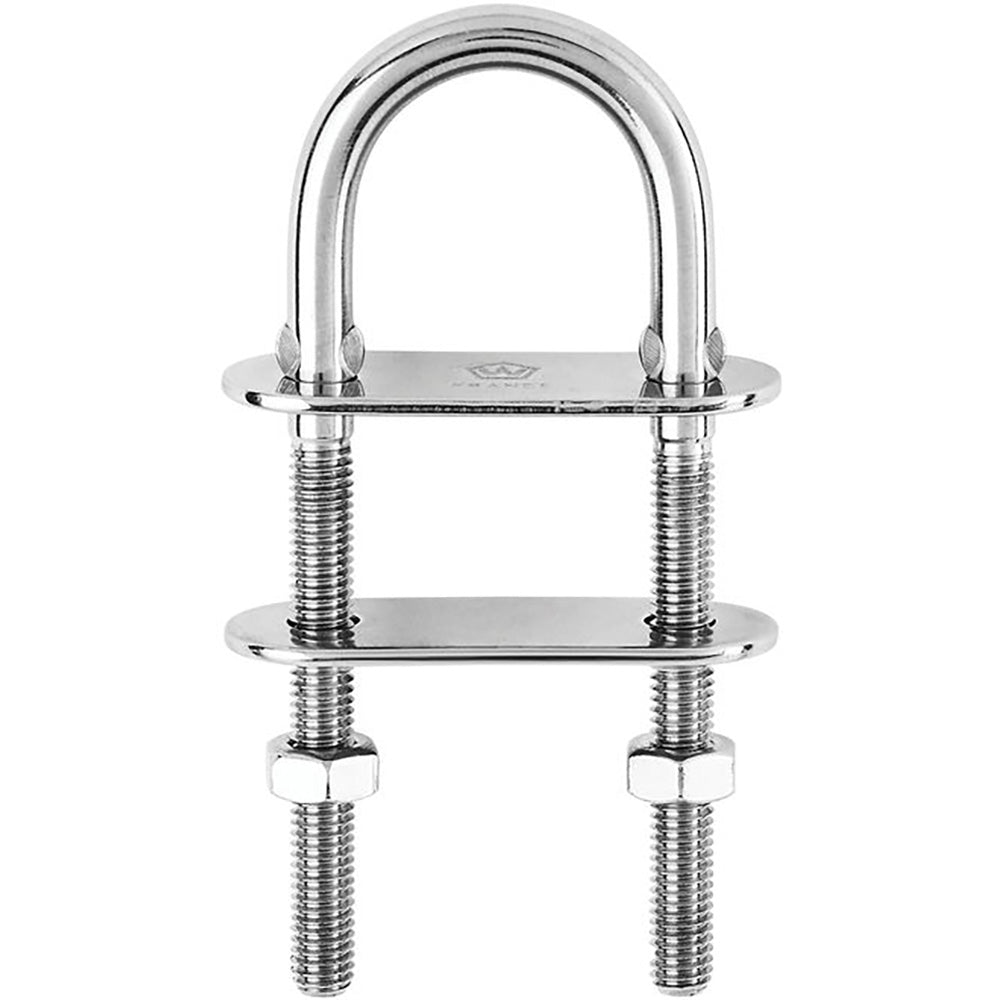

Wichard U-Bolt Pad Eye - 12mm Diameter - 15/32" - 130mm Length - 5-1/8"

SKU: wic6526w  |  Manuf. Code: 6526W
$119.30 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

U-Bolt Pad Eye - 12mm Diameter - 15/32" - 130mm Length - 5-1/8"

Features:

  • Entirely drop forged product with high-quality stainless steel
  • Outstanding working and breaking loads
  • For any fastening applications (shrouds, lifelines, blocks...)
  • Delivered with bolts and counter-plate
  • Max tightening torque: 60 Nm

Applications:

  • Various fastening applications: shrouds, lifelines, blocks…

Specifications:

  • Materials: 316L stainless steel grade
  • Working load: (lb) 14100 / (kg) 6400
  • Breaking load: (lb) 22040 / (kg) 10000
  • Weight: (lb) 0.769 / (g) 349

Dimensions:

  • A: (inch) 1 47/64" / (mm) 44
  • B: (inch) 1 11/32" / (mm) 34
  • C: (inch) 2 3/4" / (mm) 70
  • D diameter: (inch) 15/32" / (mm) 12
  • Length: (inch) 5 1/8" / (mm) 130

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Mfr. Part # 6526W

FEATURES

  • Entirely drop forged product with high-quality stainless steel
  • Outstanding working and breaking loads
  • For any fastening applications (shrouds, lifelines, blocks...)
  • Delivered with bolts and counter-plate
  • Max tightening torque: 60 Nm

TECHNICAL INFORMATION

SpecificationValue
ManufacturerWichard Marine
Manufacturer part number6526W
Max tightening torque60 Nm
Various fastening applicationsshrouds, lifelines, blocks…
Materials316L stainless steel grade
Working load(lb) 14100 / (kg) 6400
Breaking load(lb) 22040 / (kg) 10000
Weight(lb) 0.769 / (g) 349
A(inch) 1 47/64" / (mm) 44
B(inch) 1 11/32" / (mm) 34
C(inch) 2 3/4" / (mm) 70
D diameter(inch) 15/32" / (mm) 12
Length(inch) 5 1/8" / (mm) 130
Working Load (WL)For nautical applications
Working Load Limit (WLL)For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
Supplier technical detailU-Bolt Pad Eye - 12mm Diameter - 15/32" - 130mm Length - 5-1/8"
Supplier material detailEntirely drop forged product with high-quality stainless steel
Supplier technical detailEntirely drop forged product with high-quality stainless steel
Supplier material detailMaterials: 316L stainless steel grade
Supplier technical detailMaterials: 316L stainless steel grade
Supplier technical detailA: (inch) 1 47/64" / (mm) 44
Supplier technical detailB: (inch) 1 11/32" / (mm) 34
Supplier technical detailC: (inch) 2 3/4" / (mm) 70
Supplier technical detailD diameter: (inch) 15/32" / (mm) 12
Supplier technical detailLength: (inch) 5 1/8" / (mm) 130
ApplicationsVarious fastening applications: shrouds, lifelines, blocks…
Size or rating stated in product name12mm
Size or rating stated in product name15/32"
Size or rating stated in product name130mm
Size or rating stated in product name5-1/8"
Product-name configuration12mm Diameter
Product-name configuration15/32"
Product-name configuration130mm Length
Product-name configuration5-1/8"
