Wichard Black Watertight U-bolt - 5mm Diameter - 13/64" - 60mm...
Unit price
/
Unavailable
DESCRIPTION
DESCRIPTION

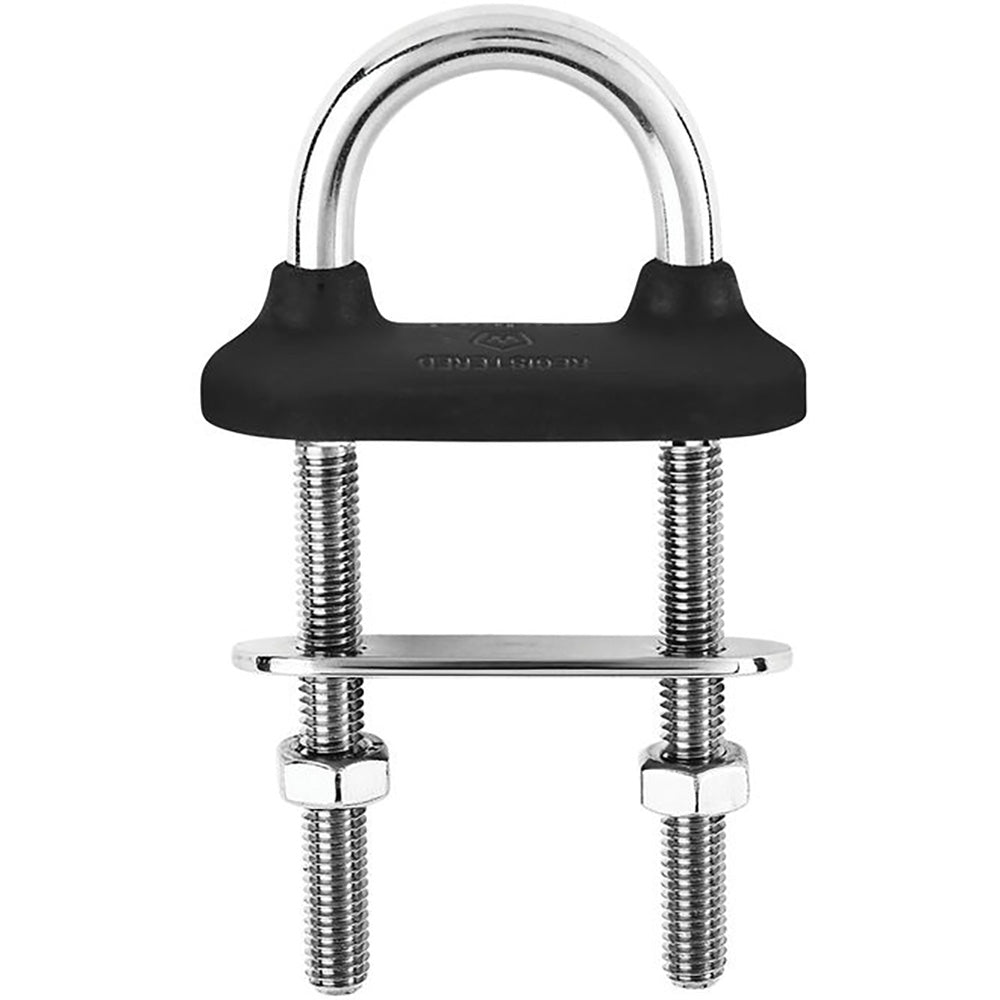

Black Watertight U-bolt - 5mm Diameter - 13/64" - 60mm Length - 2-23/64"
Features:
- Fully drop-forged product with high-quality stainless steel
- Outstanding working and breaking loads
- Complete water-tightness thanks to the resistant rubber collar (black color)
- Easy installation (no need to use a waterproof sealant)
- Delivered with bolts and counter-plate
- Max tightening torque: 4.5 nm
Applications:
- Various fastening applications: shrouds, lifelines, blocks…
Specifications:
- Materials: 316L stainless steel grade
- Color: Black
- Working load: (lb) 1410 / (kg) 640
- Breaking load: (lb) 4400 / (kg) 2000
- Weight: (lb) 0.077 / (g) 35
Dimensions:
- Length: (inch) 2 23/64" / (mm) 60
- A: (inch) 1 7/64" / (mm) 28
- B: (inch) 53/64" / (mm) 21
- C: (inch) 1 3/16" / (mm) 30
- D diameter: (inch) 13/64" / (mm) 5
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Mfr. Part # 65321W
FEATURES
FEATURES
- Fully drop-forged product with high-quality stainless steel
- Outstanding working and breaking loads
- Complete water-tightness thanks to the resistant rubber collar (black color)
- Easy installation (no need to use a waterproof sealant)
- Delivered with bolts and counter-plate
- Max tightening torque: 4.5 nm
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Specification | Value |
|---|---|
| Manufacturer | Wichard Marine |
| Manufacturer part number | 65321W |
| Max tightening torque | 4.5 nm |
| Various fastening applications | shrouds, lifelines, blocks… |
| Materials | 316L stainless steel grade |
| Color | Black |
| Working load | (lb) 1410 / (kg) 640 |
| Breaking load | (lb) 4400 / (kg) 2000 |
| Weight | (lb) 0.077 / (g) 35 |
| Length | (inch) 2 23/64" / (mm) 60 |
| A | (inch) 1 7/64" / (mm) 28 |
| B | (inch) 53/64" / (mm) 21 |
| C | (inch) 1 3/16" / (mm) 30 |
| D diameter | (inch) 13/64" / (mm) 5 |
| Working Load (WL) | For nautical applications |
| Working Load Limit (WLL) | For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 |
| Supplier technical detail | Black Watertight U-bolt - 5mm Diameter - 13/64" - 60mm Length - 2-23/64" |
| Supplier material detail | Fully drop-forged product with high-quality stainless steel |
| Supplier technical detail | Fully drop-forged product with high-quality stainless steel |
| Supplier material detail | Materials: 316L stainless steel grade |
| Supplier technical detail | Materials: 316L stainless steel grade |
| Supplier technical detail | Length: (inch) 2 23/64" / (mm) 60 |
| Supplier technical detail | A: (inch) 1 7/64" / (mm) 28 |
| Supplier technical detail | B: (inch) 53/64" / (mm) 21 |
| Supplier technical detail | C: (inch) 1 3/16" / (mm) 30 |
| Supplier technical detail | D diameter: (inch) 13/64" / (mm) 5 |
| Applications | Various fastening applications: shrouds, lifelines, blocks… |
| Size or rating stated in product name | 5mm |
| Size or rating stated in product name | 13/64" |
| Size or rating stated in product name | 60mm |
| Size or rating stated in product name | 2-23/64" |
| Product-name configuration | 5mm Diameter |
| Product-name configuration | 13/64" |
| Product-name configuration | 60mm Length |
| Product-name configuration | 2-23/64" |
