Wichard Black Watertight U-Bolt - 10mm Diameter - 25/64" - 90m...
Unit price
/
Unavailable
DESCRIPTION
DESCRIPTION

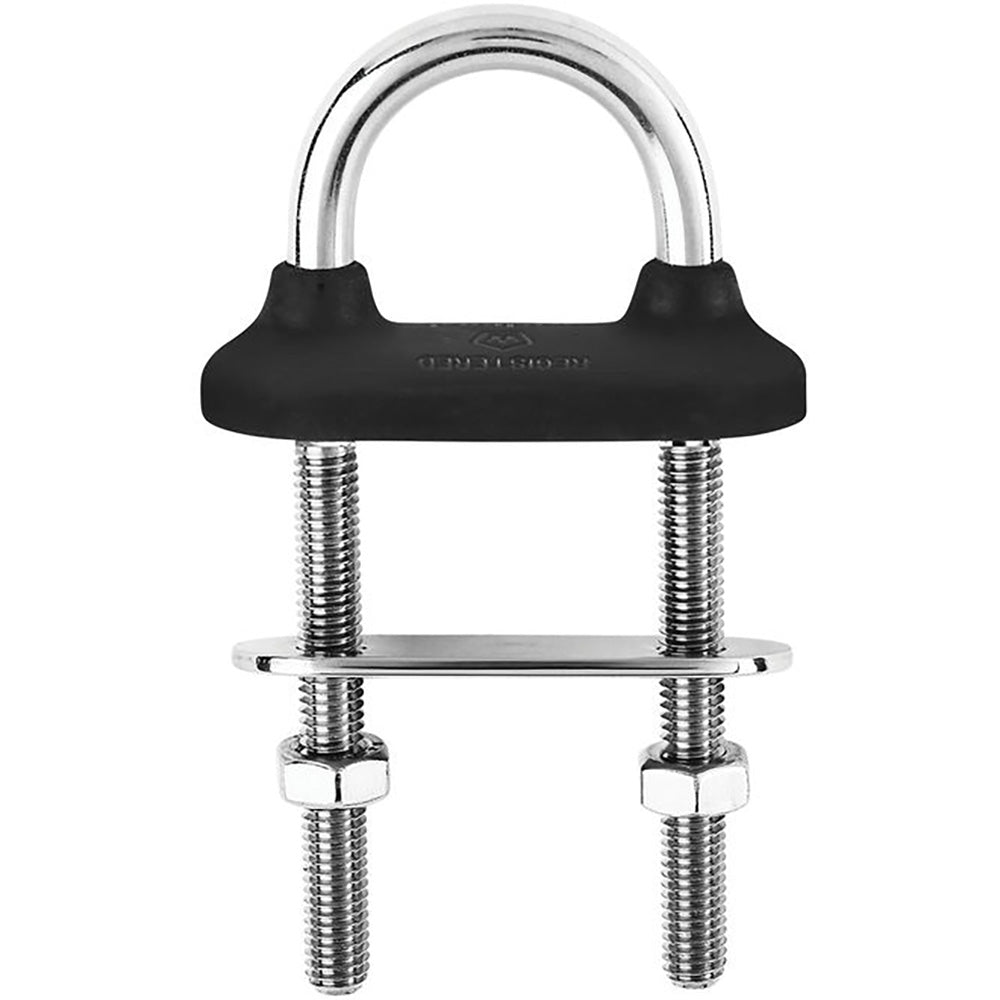

Black Watertight U-Bolt - 10mm Diameter - 25/64" - 90mm Length - 3-35/64"
Features:
- Fully drop-forged product with high-quality stainless steel
- Outstanding working and breaking loads
- Complete water-tightness thanks to the resistant rubber collar (black color)
- Easy installation (no need to use a waterproof sealant)
- Delivered with bolts and counter-plate
- Max tightening torque: 36 nm
Applications:
- Various fastening applications: shrouds, lifelines, blocks…
Specifications:
- Materials: 316L stainless steel grade
- Color: Black
- Working load: (lb) 7930 / (kg) 3600
- Breaking load: (lb) 15430 / (kg) 7000
- Weight: (lb) 0.483 / (g) 219
Dimensions:
- Length: (inch) 3 35/64" / (mm) 90
- A: (inch) 1 37/64" / (mm) 40
- B: (inch) 1 1/32" / (mm) 26
- C: (inch) 1 49/64" / (mm) 45
- D diameter: (inch) 25/64" / (mm) 10
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Mfr. Part # 65351W
FEATURES
FEATURES
- Fully drop-forged product with high-quality stainless steel
- Outstanding working and breaking loads
- Complete water-tightness thanks to the resistant rubber collar (black color)
- Easy installation (no need to use a waterproof sealant)
- Delivered with bolts and counter-plate
- Max tightening torque: 36 nm
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Specification | Value |
|---|---|
| Manufacturer | Wichard Marine |
| Manufacturer part number | 65351W |
| Max tightening torque | 36 nm |
| Various fastening applications | shrouds, lifelines, blocks… |
| Materials | 316L stainless steel grade |
| Color | Black |
| Working load | (lb) 7930 / (kg) 3600 |
| Breaking load | (lb) 15430 / (kg) 7000 |
| Weight | (lb) 0.483 / (g) 219 |
| Length | (inch) 3 35/64" / (mm) 90 |
| A | (inch) 1 37/64" / (mm) 40 |
| B | (inch) 1 1/32" / (mm) 26 |
| C | (inch) 1 49/64" / (mm) 45 |
| D diameter | (inch) 25/64" / (mm) 10 |
| Working Load (WL) | For nautical applications |
| Working Load Limit (WLL) | For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 |
| Supplier technical detail | Black Watertight U-Bolt - 10mm Diameter - 25/64" - 90mm Length - 3-35/64" |
| Supplier material detail | Fully drop-forged product with high-quality stainless steel |
| Supplier technical detail | Fully drop-forged product with high-quality stainless steel |
| Supplier material detail | Materials: 316L stainless steel grade |
| Supplier technical detail | Materials: 316L stainless steel grade |
| Supplier technical detail | Length: (inch) 3 35/64" / (mm) 90 |
| Supplier technical detail | A: (inch) 1 37/64" / (mm) 40 |
| Supplier technical detail | B: (inch) 1 1/32" / (mm) 26 |
| Supplier technical detail | C: (inch) 1 49/64" / (mm) 45 |
| Supplier technical detail | D diameter: (inch) 25/64" / (mm) 10 |
| Applications | Various fastening applications: shrouds, lifelines, blocks… |
| Size or rating stated in product name | 10mm |
| Size or rating stated in product name | 25/64" |
| Size or rating stated in product name | 90mm |
| Size or rating stated in product name | 3-35/64" |
| Product-name configuration | 10mm Diameter |
| Product-name configuration | 25/64" |
| Product-name configuration | 90mm Length |
| Product-name configuration | 3-35/64" |
