Wichard Black Watertight U-Bolt - 12mm Diameter - 15/32" - 110...
Unit price
/
Unavailable
DESCRIPTION
DESCRIPTION

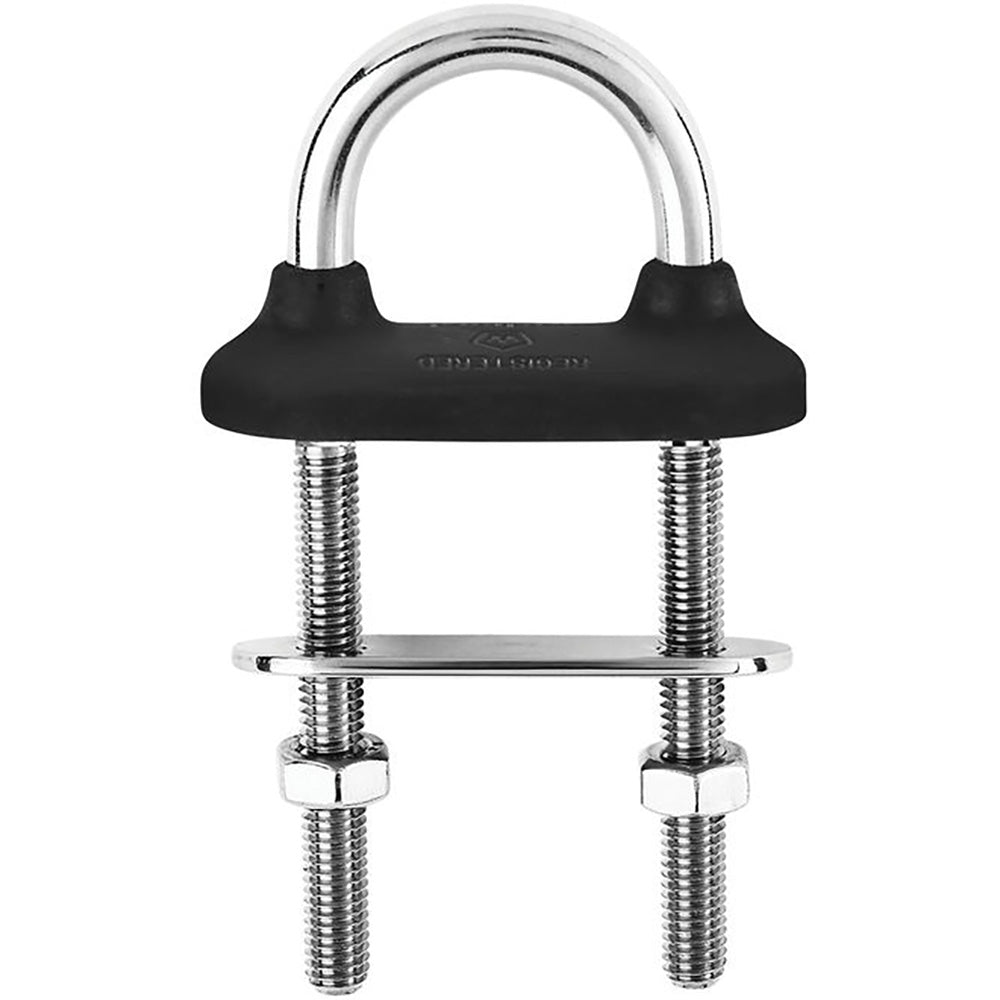

Black Watertight U-Bolt - 12mm Diameter - 15/32" - 110mm Length - 4 21/64"
Features:
- Fully dropforged product with high quality stainless steel
- Outstanding working and breaking loads
- Complete water-tightness thanks to the resistant rubber collar (black color)
- Easy installation (no need to use a waterproof sealant)
- Delivered with bolts and counter-plate
- Max tightening torque: 60 Nm
Applications:
- Various fastening applications: shrouds, lifelines, blocks…
Specifications:
- Materials; 316L stainless steel grade
- Color: Black
- Working load: (lb) 14100 / (kg) 6400
- Breaking load: (lb) 22040 / (kg) 10000
- Weight: (lb) 0.761 / (g) 345
Dimensions:
- Length: (inch) 4 21/64" / (mm) 110
- A: (inch) 1 47/64" / (mm) 44
- B: (inch) 1 1/16" / (mm) 27
- C: (inch) 1 31/32" / (mm) 50
- D diameter: (inch) 15/32" / (mm) 12
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Mfr. Part # 65361W
FEATURES
FEATURES
- Fully dropforged product with high quality stainless steel
- Outstanding working and breaking loads
- Complete water-tightness thanks to the resistant rubber collar (black color)
- Easy installation (no need to use a waterproof sealant)
- Delivered with bolts and counter-plate
- Max tightening torque: 60 Nm
TECHNICAL INFORMATION
TECHNICAL INFORMATION
| Specification | Value |
|---|---|
| Manufacturer | Wichard Marine |
| Manufacturer part number | 65361W |
| Max tightening torque | 60 Nm |
| Various fastening applications | shrouds, lifelines, blocks… |
| Color | Black |
| Working load | (lb) 14100 / (kg) 6400 |
| Breaking load | (lb) 22040 / (kg) 10000 |
| Weight | (lb) 0.761 / (g) 345 |
| Length | (inch) 4 21/64" / (mm) 110 |
| A | (inch) 1 47/64" / (mm) 44 |
| B | (inch) 1 1/16" / (mm) 27 |
| C | (inch) 1 31/32" / (mm) 50 |
| D diameter | (inch) 15/32" / (mm) 12 |
| Working Load (WL) | For nautical applications |
| Working Load Limit (WLL) | For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 |
| Supplier technical detail | Black Watertight U-Bolt - 12mm Diameter - 15/32" - 110mm Length - 4 21/64" |
| Supplier material detail | Fully dropforged product with high quality stainless steel |
| Supplier technical detail | Fully dropforged product with high quality stainless steel |
| Supplier material detail | Materials; 316L stainless steel grade |
| Supplier technical detail | Materials; 316L stainless steel grade |
| Supplier technical detail | Length: (inch) 4 21/64" / (mm) 110 |
| Supplier technical detail | A: (inch) 1 47/64" / (mm) 44 |
| Supplier technical detail | B: (inch) 1 1/16" / (mm) 27 |
| Supplier technical detail | C: (inch) 1 31/32" / (mm) 50 |
| Supplier technical detail | D diameter: (inch) 15/32" / (mm) 12 |
| Applications | Various fastening applications: shrouds, lifelines, blocks… |
| Size or rating stated in product name | 12mm |
| Size or rating stated in product name | 15/32" |
| Size or rating stated in product name | 110mm |
| Size or rating stated in product name | 4 21/64" |
| Product-name configuration | 12mm Diameter |
| Product-name configuration | 15/32" |
| Product-name configuration | 110mm Length |
| Product-name configuration | 4 21/64" |
