Wichard Double Folding Pad Eye - 6mm Diameter - 15/64"

SKU: wic6564w  |  Manuf. Code: 6564W
$152.90 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

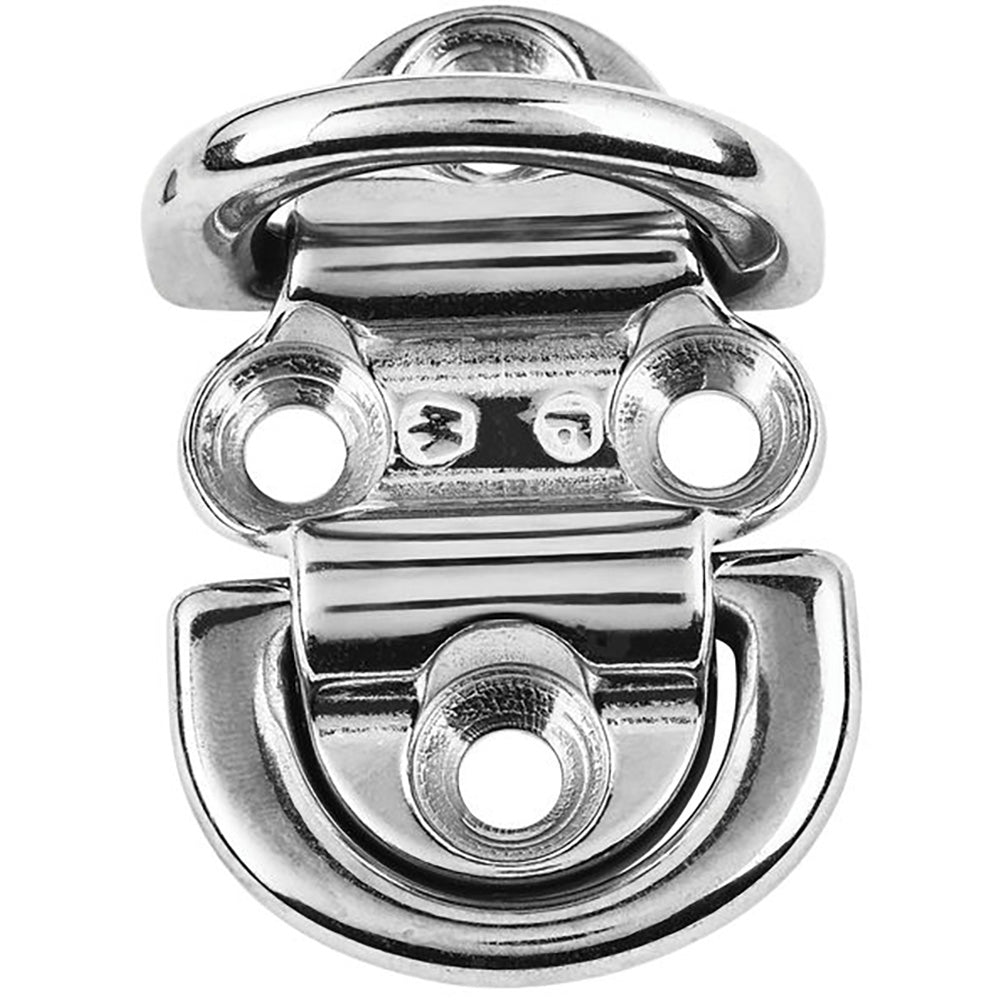

Double Folding Pad Eye - 6mm Diameter - 15/64"

Features:

  • Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load
  • Perfect solution attachment (stay, blocks, jib tack point)
  • Possibility to attach several stays
  • Modern and optimized design to suit the aesthetics of modern boats
  • They can be folded down to minimize the risk of injuries
  • The silicon pad eliminates noise and unpleasant vibrations

Applications:

  • For any fastening/attachment application
  • Allows to attach several shrouds

Specifications:

  • Materials: 316L stainless steel grade
  • Working load: (lb) 3170 / (kg) 1440
  • Breaking load; (lb) 5510 / (kg) 2500
  • Weight: (lb) 0.278 / (g) 126

Dimensions:

  • A: (inch) 1 49/64" / (mm) 45
  • B: (inch) 1 1/16" / (mm) 27
  • C: (inch) 35/64" / (mm) 14
  • d diameter: (inch) 1/4" / (mm) 6.4
  • D diameter: (inch) 15/64" / (mm) 6
  • E: (inch) 2 61/64" / (mm) 75
  • F: (inch) 2 21/64" / mm) 59

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Mfr. Part # 6564W

FEATURES

  • Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load
  • Perfect solution attachment (stay, blocks, jib tack point)
  • Possibility to attach several stays
  • Modern and optimized design to suit the aesthetics of modern boats
  • They can be folded down to minimize the risk of injuries
  • The silicon pad eliminates noise and unpleasant vibrations
  • For any fastening/attachment application

TECHNICAL INFORMATION

SpecificationValue
ManufacturerWichard Marine
Manufacturer part number6564W
Materials316L stainless steel grade
Working load(lb) 3170 / (kg) 1440
Weight(lb) 0.278 / (g) 126
A(inch) 1 49/64" / (mm) 45
B(inch) 1 1/16" / (mm) 27
C(inch) 35/64" / (mm) 14
d diameter(inch) 1/4" / (mm) 6.4
D diameter(inch) 15/64" / (mm) 6
E(inch) 2 61/64" / (mm) 75
F(inch) 2 21/64" / mm) 59
Working Load (WL)For nautical applications
Working Load Limit (WLL)For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
Supplier technical detailDouble Folding Pad Eye - 6mm Diameter - 15/64"
Supplier material detailMaterials: 316L stainless steel grade
Supplier technical detailMaterials: 316L stainless steel grade
Supplier technical detailA: (inch) 1 49/64" / (mm) 45
Supplier technical detailB: (inch) 1 1/16" / (mm) 27
Supplier technical detailC: (inch) 35/64" / (mm) 14
Supplier technical detaild diameter: (inch) 1/4" / (mm) 6.4
Supplier technical detailD diameter: (inch) 15/64" / (mm) 6
Supplier technical detailE: (inch) 2 61/64" / (mm) 75
Supplier technical detailF: (inch) 2 21/64" / mm) 59
ApplicationsFor any fastening/attachment application Allows to attach several shrouds
Size or rating stated in product name6mm
Size or rating stated in product name15/64"
Product-name configuration6mm Diameter
Product-name configuration15/64"
