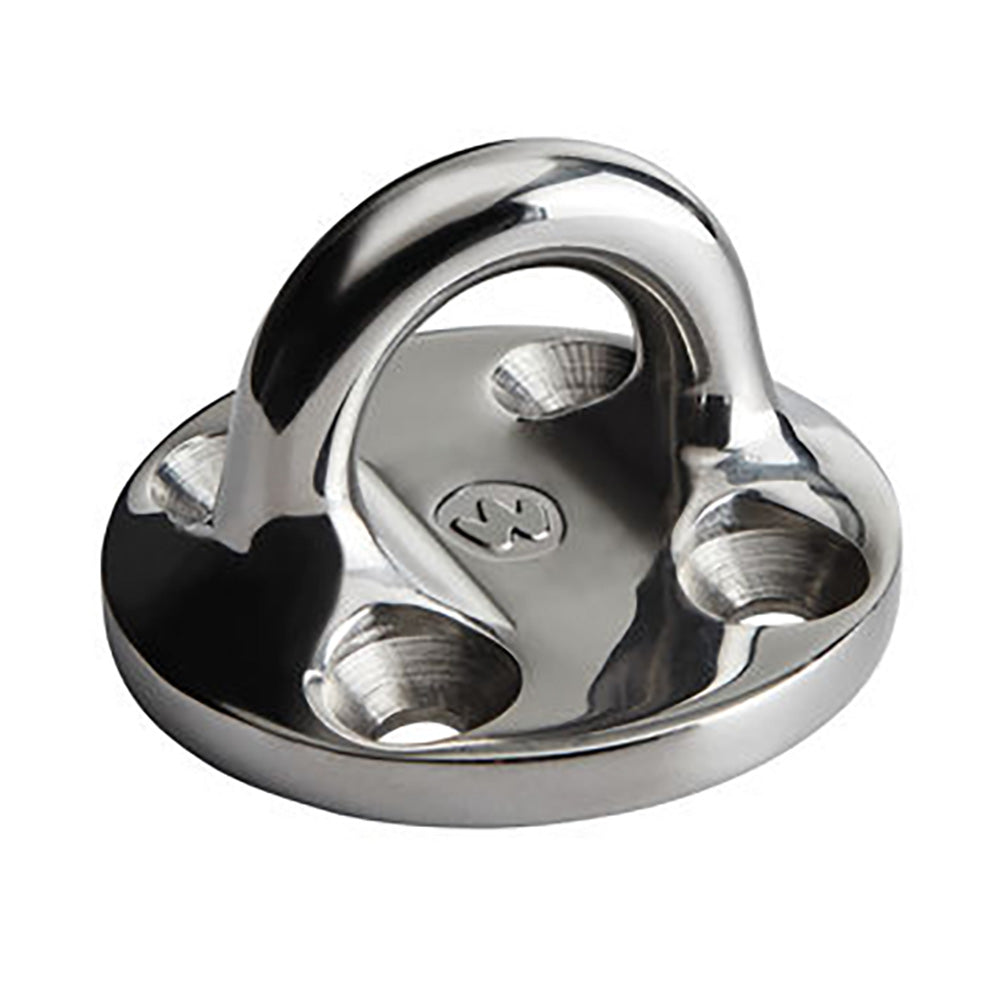

Wichard Round Pad Eye - 57mm Diameter (2-1/4") - Fixed

SKU: wic6635w  |  Manuf. Code: 6635W
$79.25 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Round Pad Eye - 57mm Diameter (2-1/4") - Fixed

This fixed rounded pad-eye completes the range of fixed pad eyes and thus it can suit any user scenario. For example, it can be used for reefing blocks and fastening points on bowsprits and blocks. Made from duplex stainless steel, it offers excellent mechanical strength for its corrosion resistance. For M6 screws.

Applications:

  • Reefing blocks
  • Fastening points on the bowsprit
  • Blocks fastening

Specifications:

  • Materials: Duplex stainless steel grade
  • Weight: (lb) 0.331 / (g) 150
  • W.L 1 (90 degrees): (lb) 5070.6 / (kg) 2300
  • W.L 2 (45 degrees): (lb) 4519.4 / kg 2050
  • W.L 3 (0 degrees): (lb) 4299 / kg 1950
  • B.L 1 (90 degrees): (lb) 10031 / kg 4550
  • B.L 2 (45 degrees): (lb) 9038.9 / kg 4100
  • B.L 3 (0 degrees): (lb) 8598 / kg 3900

Dimensions:

  • A: (inch) 2 1/4" / (mm) 57
  • B: (inch) 1 1/16" / (mm) 27
  • D: (inch) 1 3/16" / (mm) 30
  • E: (inch) 3/4" / (mm) 19
  • F: (inch) 55/64" / (mm) 22

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Mfr. Part # 6635W

FEATURES

  • Reefing blocks
  • Fastening points on the bowsprit
  • Blocks fastening
  • Materials: Duplex stainless steel grade
  • Weight: (lb) 0.331 / (g) 150
  • W.L 1 (90 degrees): (lb) 5070.6 / (kg) 2300
  • W.L 2 (45 degrees): (lb) 4519.4 / kg 2050

TECHNICAL INFORMATION

SpecificationValue
ManufacturerWichard Marine
Manufacturer part number6635W
MaterialsDuplex stainless steel grade
Weight(lb) 0.331 / (g) 150
W.L 1 (90 degrees)(lb) 5070.6 / (kg) 2300
W.L 2 (45 degrees)(lb) 4519.4 / kg 2050
W.L 3 (0 degrees)(lb) 4299 / kg 1950
B.L 1 (90 degrees)(lb) 10031 / kg 4550
B.L 2 (45 degrees)(lb) 9038.9 / kg 4100
B.L 3 (0 degrees)(lb) 8598 / kg 3900
A(inch) 2 1/4" / (mm) 57
B(inch) 1 1/16" / (mm) 27
D(inch) 1 3/16" / (mm) 30
E(inch) 3/4" / (mm) 19
F(inch) 55/64" / (mm) 22
Working Load (WL)For nautical applications
Working Load Limit (WLL)For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
Supplier technical detailRound Pad Eye - 57mm Diameter (2-1/4") - Fixed
Supplier application or construction detailThis fixed rounded pad-eye completes the range of fixed pad eyes and thus it can suit any user scenario. For example, it can be used for reefing blocks and fastening points on bowsprits and blocks. Made from duplex stainless steel, it offers excellent mechanical strength for its corrosion resistance. For M6 screws.
Supplier technical detailMade from duplex stainless steel, it offers excellent mechanical strength for its corrosion resistance.
Supplier material detailMaterials: Duplex stainless steel grade
Supplier technical detailMaterials: Duplex stainless steel grade
Supplier technical detailA: (inch) 2 1/4" / (mm) 57
Supplier technical detailB: (inch) 1 1/16" / (mm) 27
Supplier technical detailD: (inch) 1 3/16" / (mm) 30
Supplier technical detailE: (inch) 3/4" / (mm) 19
Supplier technical detailF: (inch) 55/64" / (mm) 22
ApplicationsReefing blocks Fastening points on the bowsprit Blocks fastening
Size or rating stated in product name57mm
Size or rating stated in product name2-1/4"
Product-name configuration57mm Diameter (2-1/4")
Product-name configurationFixed
