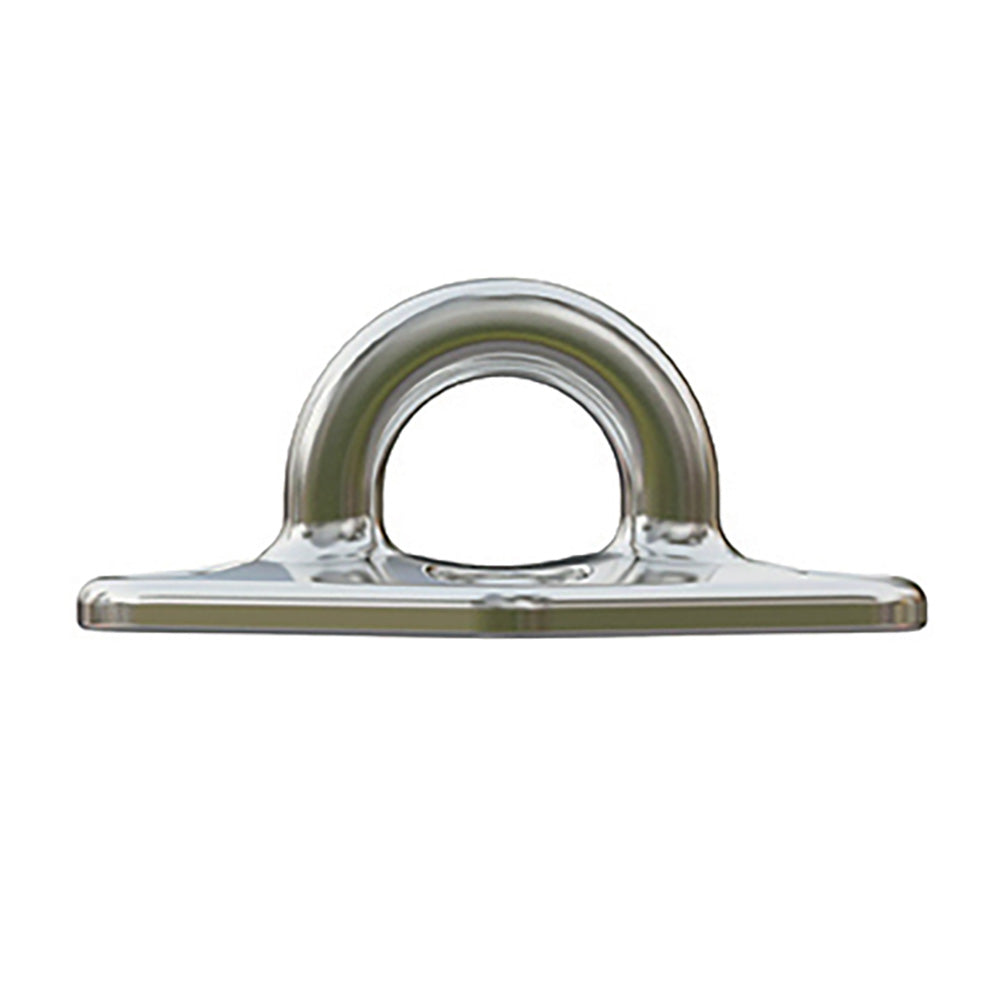

Wichard Diamond Pad Eye - Round - 79mm Length (3-7/64") - M6 Screw

SKU: wic6645w  |  Manuf. Code: 6645W
$41.28 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

Diamond Pad Eye - Round - 79mm Length (3-7/64") - M6 Screw

Features:

  • Mechanical resistance versus corrosion resistance ratio
  • Optimized dimensions
  • For M6 screw

Applications:

  • Mast foot blocks
  • Reefing blocks
  • Various fastenings

Specifications:

  • Materials: Duplex stainless steel grade
  • Working Load: (lb) 6393.4 / (kg) 2900
  • Breaking Load: (lb) 17196 / (kg) 7800
  • Weight: (lb) 0.315 / (g) 143
  • W.L 1 (90 degrees): (lb) 6393.4 / (kg) 2900
  • W.L 2 (45 degrees): (lb) 5732 / (kg) 2600
  • W.L 3 (0 degrees): (lb) 5291 / (kg) 2400
  • B.L 1 (90 degrees): (lb) 17196 / (kg) 7800
  • B.L 2 (45 degrees): (lb) 15211.9 / (kg) 6900
  • B.L 3 (0 degrees): (lb) 13889 / (kg) 6300

Dimensions:

  • A: (inch) 3 7/64" / (mm) 79
  • B: (inch) 2 23/64" / (mm) 60
  • C: (inch) 1 31/32" / (mm) 50
  • D: (inch) 1 17/64" / (mm) 32
  • E: (inch) 47/64" / (mm) 18.5
  • F: (inch) 55/64" / (mm) 22

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Mfr. Part # 6645W

FEATURES

  • Mechanical resistance versus corrosion resistance ratio
  • Optimized dimensions
  • For M6 screw
  • Mast foot blocks
  • Reefing blocks
  • Various fastenings
  • Materials: Duplex stainless steel grade

TECHNICAL INFORMATION

SpecificationValue
ManufacturerWichard Marine
Manufacturer part number6645W
MaterialsDuplex stainless steel grade
Working Load(lb) 6393.4 / (kg) 2900
Breaking Load(lb) 17196 / (kg) 7800
Weight(lb) 0.315 / (g) 143
W.L 1 (90 degrees)(lb) 6393.4 / (kg) 2900
W.L 2 (45 degrees)(lb) 5732 / (kg) 2600
W.L 3 (0 degrees)(lb) 5291 / (kg) 2400
B.L 1 (90 degrees)(lb) 17196 / (kg) 7800
B.L 2 (45 degrees)(lb) 15211.9 / (kg) 6900
B.L 3 (0 degrees)(lb) 13889 / (kg) 6300
A(inch) 3 7/64" / (mm) 79
B(inch) 2 23/64" / (mm) 60
C(inch) 1 31/32" / (mm) 50
D(inch) 1 17/64" / (mm) 32
E(inch) 47/64" / (mm) 18.5
F(inch) 55/64" / (mm) 22
Working Load (WL)For nautical applications
Working Load Limit (WLL)For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
Supplier technical detailDiamond Pad Eye - Round - 79mm Length (3-7/64") - M6 Screw
Supplier material detailMaterials: Duplex stainless steel grade
Supplier technical detailMaterials: Duplex stainless steel grade
Supplier technical detailA: (inch) 3 7/64" / (mm) 79
Supplier technical detailB: (inch) 2 23/64" / (mm) 60
Supplier technical detailC: (inch) 1 31/32" / (mm) 50
Supplier technical detailD: (inch) 1 17/64" / (mm) 32
Supplier technical detailE: (inch) 47/64" / (mm) 18.5
Supplier technical detailF: (inch) 55/64" / (mm) 22
ApplicationsMast foot blocks Reefing blocks Various fastenings
Size or rating stated in product name79mm
Size or rating stated in product name3-7/64"
Product-name configurationRound
Product-name configuration79mm Length (3-7/64")
Product-name configurationM6 Screw
