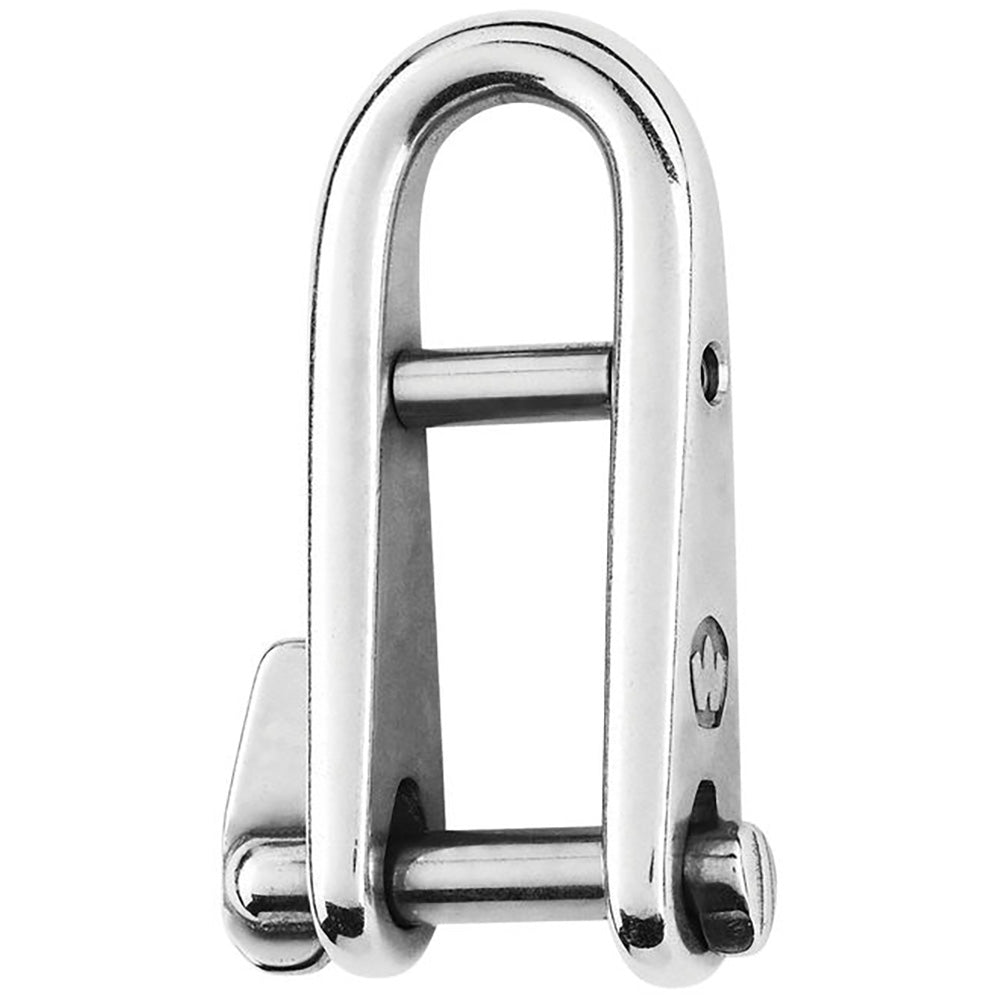

Wichard HR Key Pin Shackle With Bar - 6mm Pin Diameter

SKU: wic91433w  |  Manuf. Code: 91433W
$74.53 USD
Chat with our Tech Team Questions? Chat with our Tech Team
Backed by MAURIPRO Support Backed by MAURIPRO Support.
Simple 30-Day Returns Simple 30-Day Returns.
Simple 30-Day Returns

We offer returns within 30 days of delivery for your peace of mind.

  • 0–15 days: Free returns or exchanges
  • 16–30 days: Returns accepted with a 20% restocking fee
  • Returns after 30 days are not accepted.
  • Request a Return Authorization (RA#) prior to shipping.
  • Return shipping is the customer’s responsibility.
Price Match Guarantee Price Match Guarantee
Our Best Price Guarantee
  • We Price Match against authorized dealers only, based on the total order cost (product + shipping).
  • No auction sites
  • No unauthorized sellers
  • Item must be identical, new, and in stock

Found it cheaper? Chat with us to request a Price Match.

DESCRIPTION

HR Key Pin Shackle With Bar - 6mm Pin Diameter

Features:

  • Forged D shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Applications requesting high loads
  • Perfect product for halyards or applications requiring opening/closing the shackle often
  • Do not use it for mooring applications

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 1320 / (kg) 600
  • Breaking load: (lb) 4850 / (kg) 2200
  • Weight: (lb) 0.117 / (g) 53

Dimensions:

  • A: (inch) 1 49/64" / (mm) 45
  • B: (inch) 5/8" / (mm) 16
  • C: (inch) 15/64" / (mm) 6
  • D: (inch) 33/64" / (mm) 13
  • E: (inch) 5/32" / (mm) 4
  • F: (inch) 2 23/64" / (mm) 60
  • G: (inch) 1 29/64" / (mm) 37
  • L: (inch) 19/32" / (mm) 15

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual

Mfr. Part # 91433W

FEATURES

  • Forged D shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

TECHNICAL INFORMATION

SpecificationValue
ManufacturerWichard Marine
Manufacturer part number91433W
WLLonly for industrial applications (lifting i.e…)
MaterialsHR 17.4 PH stainless steel grade
Working load(lb) 1320 / (kg) 600
Breaking load(lb) 4850 / (kg) 2200
Weight(lb) 0.117 / (g) 53
A(inch) 1 49/64" / (mm) 45
B(inch) 5/8" / (mm) 16
C(inch) 15/64" / (mm) 6
D(inch) 33/64" / (mm) 13
E(inch) 5/32" / (mm) 4
F(inch) 2 23/64" / (mm) 60
G(inch) 1 29/64" / (mm) 37
L(inch) 19/32" / (mm) 15
Working Load (WL)For nautical applications
Working Load Limit (WLL)For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
Supplier technical detailHR Key Pin Shackle With Bar - 6mm Pin Diameter
Supplier material detailForged D shackle in HR stainless steel grade (17,4 PH)
Supplier technical detailForged D shackle in HR stainless steel grade (17,4 PH)
Supplier material detailAn HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
Supplier technical detailAn HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
Supplier material detailMaterials: HR 17.4 PH stainless steel grade
Supplier technical detailMaterials: HR 17.4 PH stainless steel grade
Supplier technical detailA: (inch) 1 49/64" / (mm) 45
Supplier technical detailB: (inch) 5/8" / (mm) 16
Supplier technical detailC: (inch) 15/64" / (mm) 6
Supplier technical detailD: (inch) 33/64" / (mm) 13
Supplier technical detailE: (inch) 5/32" / (mm) 4
Supplier technical detailF: (inch) 2 23/64" / (mm) 60
Supplier technical detailG: (inch) 1 29/64" / (mm) 37
Supplier technical detailL: (inch) 19/32" / (mm) 15
ApplicationsApplications requesting high loads Perfect product for halyards or applications requiring opening/closing the shackle often Do not use it for mooring applications
Size or rating stated in product name6mm
Product-name configuration6mm Pin Diameter
