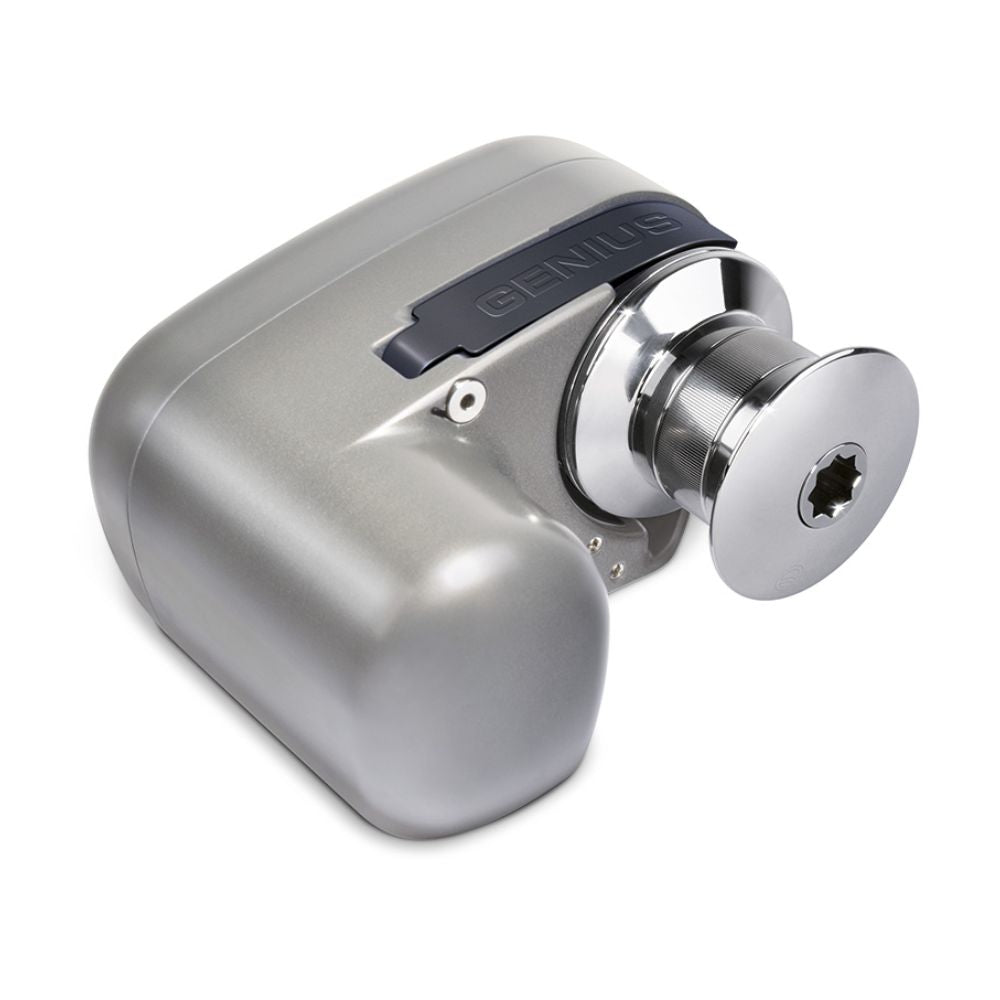

Quick Windlass - Genius GP2 800W Horizontal Electric 12V Gypsy + Drum 8mm - DIN 766

To select the right Lewmar windlass, match the model to your boat's length overall (LOA) and displacement: horizontal and compact vertical models cover boats from about 20 to 80 feet, while Lewmar's large vertical windlasses (V8–V16) serve yachts from 67 up to 225 feet. Beyond boat length, you also need to confirm that the gypsy on the windlass matches your anchor chain and rope, so this guide covers both model selection and rode compatibility.

Lewmar windlass ranges at a glance

Range Mounting style Boat length (LOA) Example models
Horizontal windlasses Motor and gearbox above deck; chain runs horizontally over the gypsy 20–80 ft Pro-Sport 500, Pro-Series/Fish 700 & 1000, HX1, H2, H3, S900/S2000 (stern)
Vertical windlasses Motor and gearbox below deck; low-profile gypsy on deck 20–80 ft V700, VX1–VX3, CPX0–CPX3, V1–V6
Large vertical windlasses Below-deck drive for superyachts and large motor yachts 67–225 ft V8, V9, V10, V12, V14, V15, V16

How do I choose the right size Lewmar windlass?

Boat length is the starting point, but several parameters must be considered when selecting a windlass: displacement, windage, anchor weight, and the type of anchor rode you carry. The boat lengths in the charts below correspond to vessels of average displacement. For heavy-displacement vessels, consider a larger windlass model — and whenever you are in doubt between two sizes, opt for the next size up. An oversized windlass works at lower load and lasts longer; an undersized one strains its motor every time you weigh anchor.

Which Lewmar horizontal windlass fits my boat?

Horizontal windlasses keep the motor and gearbox above deck, which makes them easier to install where below-deck space is limited. Models marked “Special Order” are available through our Customer Care Team.

Model Boat length (ft) Availability
Pro-Sport 500 20–30 Online
CRW 400 20–30 Special order
RX2 20–38 Special order
S900 Stern Windlass 20–38 Special order
S2000 Stern Windlass 20–45 Special order
HX1 (300W / 800W) 24–40 Special order
Pro-Series/Fish 700 20–38 Online
Pro-Series/Fish 1000 20–38 Online
RX2+ 28–45 Special order
H2 35–50 Online
H3 35–50 Online
RX3 35–50 Special order

Which Lewmar vertical windlass fits my boat?

Vertical windlasses put the motor and gearbox below deck, leaving a clean, low-profile installation on the foredeck and giving the chain roughly 180 degrees of wrap around the gypsy for a secure grip. This is Lewmar's largest range, from the compact V700 up to the V6.

Lewmar V4 / C4 12V motor and gearbox assembly for vertical windlasses
Lewmar V4 / C4 12V Motor / Gear Box — the below-deck drive unit used by Lewmar V4 and C4 vertical windlasses.
Model Boat length (ft) Availability
VX1 300W 20–30 Online
V700 20–35 Online
VX1 500W 20–38 Online
VX1L (500W / 800W) 20–38 Online
CPX0 (500W / 700W) 24–40 Special order
VX2 24–40 Online
CPX1 28–45 Online
CPX2 28–45 Online
V1 28–45 Online
V2 28–45 Online
VX2+ 28–45 Online
CPX3 35–50 Online
V3 35–50 Online
VX3 35–50 Online
V4 47–80 Online
V5 47–80 Online
V6 47–80 Online

For yachts beyond 80 feet, Lewmar's large vertical windlasses take over. All are special-order items through our Customer Care Team:

Model Boat length (ft)
V8 2500W 67–107
V8 Hi-Power 67–107
V9 90–160
V10 90–160
V12 90–160
V14 115–225
V15 115–225
V16 115–225

Update (October 2026): V4 and V6 in detail — electric or hydraulic, and which deck unit

The V4 and V6 are Lewmar’s mid-size and heavy-duty vertical lines. This update adds how to size them, how electric and hydraulic drive differ, and how to choose the deck unit.

V4 and V6 at a glance

Series Drive Typical boat size Key traits
V4 (1600W) 12V electric 47–80 ft (from Lewmar’s sizing chart; see the vertical table above) Compact vertical unit; suits 35–75 lb anchors and chain-rope rodes; works with standard 12V house banks
V4 (2000W) 24V electric 47–80 ft (from Lewmar’s sizing chart; see the vertical table above) About 20% more pulling power than the 1600W unit; lower current draw and smaller wire gauge over long runs
V6 electric 24V electric Large yachts / heavy tackle Modular heavy-duty design; separate motor gearbox and deck unit; gypsy sold separately to match your chain
V6 hydraulic Hydraulic motor gearbox Large yachts / commercial Continuous duty without overheating; consistent pull regardless of battery state; needs onboard hydraulic power

How do I size a V4 or V6 for my boat?

Start with boat length, displacement, and the weight of your complete ground tackle (anchor plus chain and rope rode). For boats in the V4’s 47–80 foot range (per Lewmar’s sizing chart), the Lewmar V4 (1600W 12V or 2000W 24V) delivers ample pulling power for typical recreational anchoring, where anchors run roughly 35–75 pounds on mixed chain-rope rodes. Larger vessels, or any boat carrying heavier all-chain tackle, should step up to the V6 series, Lewmar's heavy-duty line engineered for anchor systems that can exceed 100 pounds.

Electrical capacity matters as much as motor wattage. Current draw on 12V Lewmar windlasses varies widely by model: the rated normal draw runs from about 20 amps on the smallest Pro-Series up to 125 amps on the V4 1600W (12V), and the V4 2000W (24V) is rated at 70 amps. Check the rated current draw and circuit-breaker size for your exact model, then make sure your battery bank, charging system, and conductor sizing support that draw. 24V systems pull fewer amps for the same power, which reduces voltage drop and allows smaller wire gauges over the long cable runs common on bigger boats.

Lewmar V4 / C4 24V motor and gearbox assembly for vertical windlasses
Lewmar V4 / C4 24V Motor / Gear Box — the sealed drive unit that powers V4-class vertical windlasses in the 47–80 foot range.

Should I choose an electric or hydraulic Lewmar windlass?

Electric windlasses (12V or 24V motor gearbox assemblies) are the straightforward choice for most cruising boats: installation and maintenance are simpler, and the sealed motor housings and corrosion-resistant components are designed for the marine environment. The V4 and V6 electric models cover the full recreational size range.

Hydraulic windlasses, such as the V6 with hydraulic motor gearbox, deliver a superior power-to-weight ratio and can run continuously under heavy load without overheating. They pull consistently regardless of battery state and avoid the very high current draw of large electric units. The trade-off: they require existing hydraulic infrastructure or a dedicated hydraulic power unit, which is why they are most common on large yachts and commercial vessels that already run hydraulics.

Lewmar V6 windlass 24V motor gearbox assembly for heavy-duty anchoring systems
Lewmar V6 Windlass 24V Motorgear Box Assembly — the replaceable electric drive module for Lewmar's heavy-duty V6 vertical windlass line.

Gypsy-only or gypsy-and-drum: which deck unit do I need?

The deck unit configuration should match your rode. A gypsy-only unit is built for all-chain rodes: the pocketed gypsy wheel engages standard chain sizes positively, giving maximum control and minimal slippage under load. A combined gypsy-and-drum unit adds a rope drum above the gypsy, handling mixed rodes where rope makes up most of the length and chain runs near the anchor.

Lewmar deck units are offered in left-hand (LH) and right-hand (RH) orientations, indicating the chain feed direction viewed from the operator position, so you can match the unit to your deck layout. On the modular V6 series the gypsy is sold separately, letting you pair the deck unit with the exact gypsy size and pitch for your chain — commonly 10mm, 12mm, or 14mm.

Lewmar V6 windlass gypsy assembly for 10mm chain
Lewmar V6 Windlass Gypsy Assembly (10mm) — the gypsy (chain wheel) must match your chain's size and pitch for proper engagement.

Update (October 2026): horizontal or vertical — gypsy wrap and locker fall

Before you pick a model, decide the format. These are the differences that decide it in practice.

Feature Horizontal windlass Vertical windlass
Mounting Entire unit above deck Motor and gearbox below deck; gypsy on deck
Installation Easier, all on-deck More complex, requires below-deck access
Gypsy wrap 90-degree wrap around the gypsy 180-degree wrap for greater rode security
Minimum locker fall 12" (304 mm) 18" (457 mm)
Best suited for Small or irregular anchor lockers; casual anchoring Larger anchor lockers; frequent or heavy-weather anchoring
Deck space Takes up more deck space Frees up deck space; cleaner foredeck

Why does the gypsy wrap angle matter?

The gypsy is the chainwheel that grips your anchor rode, and the amount of rode wrapped around it determines how much pulling force transfers without slipping. A horizontal windlass gives you a 90-degree wrap; a vertical windlass doubles that to 180 degrees. The larger wrap of a vertical unit is why it holds the rode more securely, making it the better choice for anchoring in severe weather or for boats that anchor frequently in demanding conditions.

Whichever style you choose, the gypsy must be correctly matched to your chain size and rope diameter; a mismatched gypsy will skip or jam regardless of how powerful the windlass is.

Which chain and rope work with my Lewmar windlass?

A windlass only hauls reliably when the gypsy matches the exact chain calibration — link diameter, pitch, and width. Ordering the correct gypsy for your chain is just as important as picking the right windlass size. The table below lists the chain calibrations and rope sizes each Lewmar model accepts.

Lewmar CPX 202 gypsy kit for matching windlass to anchor chain calibration
Lewmar CPX 202 Gypsy Kit — replacement gypsy that lets a CPX windlass be matched to a different chain calibration.
Windlass model Compatible chain Compatible rope
CRW 400 — 35 m (115 ft) of 6 mm (1/4”)
H2 5/16” BBB, 5/16” US G4 ISO, 8 mm DIN 766, 8 mm ISO 4565, 10 mm / 3/8” BBB 14–16 mm 3-strand; 8-plait (5/8” only)
H3 10 mm / 3/8” BBB, 10 mm DIN 766, Lewmar 9.5 mm G40 14–16 mm 3-strand; 8-plait (5/8” only)
HX1 (300W / 800W) 6 mm ISO 4565, 6 mm DIN 766, 7 mm ISO 4565, 7 mm DIN 766, 1/4” G40, 1/4” BBB, 8 mm ISO 4565, 8 mm DIN 766, 5/16” G40 12–16 mm (1/2”–5/8”) 3-strand and 8-plait
Pro-Series/Fish 700 & 1000, Pro-Sport 500 6 mm DIN 766, 7 mm DIN 766, 1/4” ISO G4, 1/4” BBB, 8 mm DIN 766, 8 mm ISO 4565, 5/16” BBB, 5/16” ISO G4 12 mm (1/2”) 3-strand and 8-plait; 14–16 mm (9/16”–5/8”) 3-strand and 8-plait (5/8” only)
RX2, RX2+, RX3 6 mm DIN 766, 7 mm ISO 4565, 7 mm DIN 766, 1/4” G40, 1/4” BBB, 8 mm ISO 4565, 5/16” G40, 8 mm DIN 766, Lewmar 9.5 mm G40, 5/16” Campbell S3, 3/8” Campbell S4, 10 mm DIN 766, 10 mm ISO 4565, 3/8” Campbell S3 —
S900 / S2000 Stern Windlass — 12–16 mm (1/2”–5/8”) 3-strand and 8-plait
CPX0 (500W / 700W) 6 mm DIN 766, 6 mm ISO 4565, 7 mm DIN 766, 7 mm ISO 4565, 1/4” ACCO ISO G43 (G4), 1/4” ACCO BBB (3B), 8 mm DIN 766, 8 mm ISO 4565, 5/16” ACCO ISO G43 (G4) 12–16 mm (1/2”–5/8”) 3-strand and 8-plait (5/8” only)
CPX1, CPX2, CPX3 6 mm ISO 4565, 1/4” ACCO G43, 1/4” BBB, 7 mm DIN 766, 8 mm DIN 766, 8 mm ISO 4565, 10 mm DIN 766, 3/8” Campbell S4, 5/16” G40, 10 mm ISO 4565, 3/8” Campbell S3, Lewmar 9.5 mm G30/G40 12–16 mm (1/2”–5/8”) 3-strand and 8-plait
V1, V2, V3 6 mm ISO 4565, 1/4” G40, 1/4” BBB, 7 mm ISO 4565, 8 mm DIN 766, 8 mm ISO 4565, 10 mm DIN 766, 3/8” Campbell S4, 5/16” G40, 10 mm ISO, 3/8” Campbell S3, Lewmar 9.5 mm G40 12–16 mm (1/2”–5/8”) 3-strand and 8-plait
V4, V5 8 mm DIN 766, 8 mm ISO 4565, 5/16” G40, 5/16” Campbell S4, 10 mm DIN 766, 5/16” Campbell S3, 3/8” Campbell S4, 9.5 mm G30, 10 mm ISO 4565, 3/8” Campbell S3, Lewmar 9.5 mm G40, 12 mm ISO 4565, 13 mm DIN 766 12–16 mm (1/2”–5/8”) 3-strand medium lay; 18–20 mm 3-strand medium lay
V6 10 mm DIN 766, 3/8” ISO G4, Lewmar 9.5 mm G40, 11 mm Short Link, Lewmar 12 mm G30/G40, 13 mm DIN 766, 7/16” G40, Lewmar 14 mm G30/G40, 14 mm DIN 766, 1/2” ISO G4, Lewmar 1/2” G30/G40 —
V700 6 mm DIN 766, 6 mm ISO 4565, 7 mm DIN 766, 1/4” ACCO ISO G43 (G4), 1/4” ACCO BBB (3B) 12 mm (1/2”) 3-strand and 8-plait
VX1 (300W / 500W), VX1L (500W / 800W) 6 mm DIN 766, 6 mm ISO 4565, 7 mm DIN 766, 7 mm ISO 4565, 1/4” ACCO ISO G43 (G4), 1/4” ACCO BBB (3B), 8 mm DIN 766, 8 mm ISO 4565, 5/16” ACCO ISO G43 (G4) 12–16 mm (1/2”–5/8”) 3-strand and 8-plait
VX2, VX2+, VX3 6 mm ISO 4565, 6 mm DIN 766, 7 mm ISO 4565, 7 mm DIN 766, 1/4” G40, 1/4” BBB, 8 mm ISO 4565, 5/16” G40, 8 mm DIN 766, Lewmar 9.5 mm G40, 5/16” Campbell S3, 3/8” Campbell S4, 10 mm DIN 766, 10 mm ISO 4565 12–16 mm (1/2”–5/8”) 3-strand and 8-plait
V8 2500W, V8 Hi-Power 11 mm DIN 766, 12 mm Short Link, 7/16” ISO G4, 13 mm DIN 766, 14 mm Short Link, 14 mm DIN 766, 16 mm Short Link, 16 mm DIN 766, 1/2” ACCO G4, 14 mm Studlink —
V9 14 mm Studlink, 16 mm Studlink, 16 mm Short Link, 16 mm DIN 766, 17.5 mm Studlink, 18 mm DIN 766 —

Not sure which calibration your existing chain is? Measure a link’s wire diameter (D), pitch (P, inside link length), and outside width (W) and match it against the standard calibrations:

Chain D (mm / in) P (mm / in) W (mm / in)
6 mm DIN 766 6.00 / 0.24 18.50 / 0.73 20.40 / 0.80
6 mm ISO 4565 6.00 / 0.24 18.00 / 0.71 21.60 / 0.85
1/4” ACCO ISO G43 (G4) 7.00 / 0.28 21.30 / 0.84 24.40 / 0.96
7 mm DIN 766 7.00 / 0.28 22.00 / 0.87 23.80 / 0.94
1/4” ACCO BBB (3B) 7.14 / 0.28 22.10 / 0.87 25.20 / 0.99
8 mm DIN 766 8.00 / 0.32 24.00 / 0.95 27.20 / 1.07
8 mm ISO 4565 8.00 / 0.32 24.00 / 0.95 28.80 / 1.13
5/16” ACCO ISO G43 (G4) 8.40 / 0.33 26.20 / 1.03 29.70 / 1.17
Lewmar 9.5 mm G40 9.50 / 0.37 31.50 / 1.24 31.60 / 1.24
3/8” Campbell S4 10.00 / 0.39 29.00 / 1.15 35.00 / 1.38
10 mm ISO 4565 10.00 / 0.39 30.00 / 1.18 36.00 / 1.42
3/8” Campbell S3 10.00 / 0.37 34.50 / 1.36 33.30 / 1.31
10 mm DIN 766 10.00 / 0.39 28.00 / 1.10 36.00 / 1.42
3/8” ACCO ISO G43 (G4) 10.00 / 0.39 31.00 / 1.22 35.00 / 1.38
11 mm Short Link 11.00 / 0.43 33.00 / 1.30 39.00 / 1.54
11 mm DIN 766 11.00 / 0.43 31.00 / 1.22 40.00 / 1.58
7/16” ACCO ISO G43 (G4) 11.80 / 0.46 35.50 / 1.40 40.10 / 1.58
Lewmar 12 mm G30/G40, 12 mm Short Link (G4) 12.00 / 0.47 36.00 / 1.42 40.50 / 1.59
13 mm DIN 766 13.00 / 0.51 36.00 / 1.42 47.00 / 1.85
1/2” ACCO ISO G43 (G4) 13.20 / 0.52 40.40 / 1.59 45.70 / 1.80
Lewmar 14 mm G30/G40, 14 mm Short Link 14.00 / 0.55 42.00 / 1.65 49.00 / 1.93
14 mm DIN 766 14.00 / 0.55 41.00 / 1.61 50.00 / 1.97
14 mm Studlink 14.00 / 0.55 56.00 / 2.21 50.40 / 1.98
16 mm Short Link 16.00 / 0.63 48.00 / 1.89 56.00 / 2.21
16 mm DIN 766 16.00 / 0.63 45.00 / 1.77 58.00 / 2.28

Campbell sells both 3/8” chains as “10 mm”, but the actual wire measures 0.37 in (9.4 mm) in System 3 and 0.39 in in System 4, and the pitch differs (1.36 in vs 1.15 in), so check both before ordering a gypsy.

How do I keep a Lewmar windlass running reliably?

Lewmar's modular design is a real ownership advantage: motor gearboxes, bearing/seal kits, control arms, fastener kits, and chain-counter sensors are all available as individual spares, so a worn component can be replaced without buying a new windlass. Bearing and seal kits (for the V700 through V4/V5 models) refresh the watertight integrity of the below-deck drive; complete 12V and 24V motor gearboxes are stocked for the V4/C4, V5/C5, and V6, and a sensor-and-magnet kit restores chain-counter function.

Plan periodic inspection of electrical connections, seals, and mechanical components, and make sure the installation leaves service access to the motor gearbox below deck. Because the windlass transmits substantial loads into the deck, backing plates and structural reinforcement should be checked as part of routine maintenance.

Can I get spare parts for my Lewmar windlass?

Yes. Lewmar supports its windlass range with a deep spare-parts catalog, so a worn windlass can usually be rebuilt instead of replaced. Common service items include bearing and seal kits, replacement motor/gearbox assemblies (12V and 24V), gypsy kits, fastener kits, control arm kits, and chain-counter sensor and magnet kits — all available in our Lewmar Windlasses collection.

Lewmar V700 windlass bearing and seal service kit
Lewmar V700 Bearing / Seal Kit — service kit for keeping a V700 vertical windlass sealed and turning freely.

Frequently asked questions

Should I choose a horizontal or a vertical windlass?

Vertical models hide the motor below deck and give the chain more wrap around the gypsy; horizontal models keep everything above deck for easier installation where below-deck space is tight. Both Lewmar ranges cover boats from about 20 to 80 feet.

What size windlass do I need for a heavy-displacement boat?

The boat-length charts assume average displacement, so for a heavy-displacement vessel choose a larger model. When in doubt between two sizes, always take the next size up.

How do I know which chain my Lewmar gypsy accepts?

Match your chain's calibration — wire diameter, pitch, and width — against the compatibility table for your windlass model. Measure a link and compare it to the dimension chart if you are unsure what calibration you have.

Can a Lewmar windlass handle both rope and chain?

Most horizontal and vertical models up to the V5 accept a combination rope/chain rode. The V6 is built as a modular deck unit offered in both gypsy-only and gypsy-and-drum versions (gypsy sold separately), so it can be set up for all-chain or for a rope/chain rode. The RX series and the large V8–V16 windlasses are special-order models: the compatibility table lists chain calibrations but no rope size for them, so confirm rope capability with our Customer Care Team before ordering.

What does “Special Order” availability mean?

Special-order models such as the HX1, RX series, CPX0, and the large vertical windlasses are not stocked online; contact our Customer Care Team and they will arrange the order for you.

Which Lewmar windlasses fit yachts over 80 feet?

The large vertical range: V8 (67–107 ft), V9/V10/V12 (90–160 ft), and V14/V15/V16 (115–225 ft), all supplied as special orders.

What is the difference between the Lewmar V4 and V6 windlass series?

The V4 is a compact vertical electric windlass offered as integrated 1600W (12V) or 2000W (24V) units for mid-size boats, while the V6 is the heavy-duty modular line with separate motor gearbox and deck unit, higher pulling capacity, and electric or hydraulic drive options.

Should I choose 12V or 24V for my Lewmar windlass?

Match the windlass to your boat's electrical system: 12V (V4 1600W) suits most recreational boats, while 24V (V4 2000W and V6) gives about 20% more pull, lower current draw, and less voltage drop on larger vessels with 24V house systems.

Can I buy just the motor gearbox for my existing Lewmar windlass?

Yes — standalone 12V and 24V motor gearbox assemblies are available for the V4/C4, V5/C5, and V6, plus units for 3000/3500-series windlasses, so a failed motor can be replaced without buying a complete new windlass.

What does "gypsy sold separately" mean on Lewmar V6 deck units?

The V6 uses a modular design where the chain wheel (gypsy) is a separate part, so you buy the gypsy that exactly matches your chain size and pitch — 10mm, 12mm, or 14mm — along with the LH or RH deck unit.

When does a hydraulic windlass make sense over electric?

Choose hydraulic when the boat already runs hydraulic systems and anchors frequently under heavy load: hydraulic V6 units run continuously without overheating and pull consistently regardless of battery charge, but they need onboard hydraulic power.

How much current does an electric windlass draw?

Normal current draw on 12V Lewmar windlasses ranges from about 20 amps on the smallest Pro-Series up to 125 amps on the V4 1600W, so the battery bank, charging capacity, and wire gauge must be sized to your model’s rating; 24V systems draw roughly half the amps for the same power (the V4 2000W 24V is rated at 70 amps).

How much fall does a windlass need in the anchor locker?

Lewmar recommends a minimum fall of 12" (304 mm) for horizontal windlasses and 18" (457 mm) for vertical windlasses so gravity can self-tail the rode into the locker.

Are vertical windlasses better for heavy weather?

Yes. The 180-degree wrap around the gypsy grips the anchor rode more securely, which makes vertical windlasses better suited to frequent anchoring and severe weather conditions.

Why won't my anchor rode feed into the locker properly?

The most common cause is insufficient fall below the windlass — lightweight nylon rode in particular needs the recommended drop so gravity can pull it into the locker as the gypsy self-tails.
