To choose the right Maxwell windlass, match the model to your boat’s length overall and displacement, and make sure its maximum pulling capacity is at least three times the total weight of your ground tackle (anchor, chain, and rode). This guide walks through Maxwell’s sizing chart by boat length, vertical versus horizontal configurations, and the controls and load-management gear that complete a safe anchoring system.
Maxwell windlasses at a glance
| Maxwell series | Boat length overall (ft) | Notes |
|---|---|---|
| RC6 | 15–25 | Vertical rope/chain windlass; Maxwell lists 4.5–7.5 m (15–25 ft) |
| RC8 (RC8-6, RC8-8) | Not published by Maxwell | Size it by chain and rope diameter instead |
| RC10 (RC10-8, RC10-10) | 30–48 | Maxwell lists 9 m (30 ft) to 14 m (48 ft) for the whole RC10 range |
| RC12 (RC12-10, RC12-12) | 30–65 | Maxwell lists 10 m (30 ft) to 20 m (65 ft) for the whole RC12 range |
| AnchorMax | Up to 33 | Maxwell states a maximum boat LOA of 10 m (33 ft), not a range |
| HRC series (HRC-6–HRC10-10) | Not published by Maxwell | Horizontal rope/chain; size by chain diameter and maximum pull |
| VC / VW / VWC / HWC (500–3500) | Not published by Maxwell | Chain windlasses, gypsy-only or gypsy + drum, 12V and 24V; size by chain and pull |
How do I choose the right Maxwell windlass for my boat?
Selecting the correct anchor winch is essential for safe, smooth, and reliable anchoring. Start with your boat’s size, displacement, and overall design. Heavier vessels and boats with higher windage place more strain on the ground tackle, so they need a larger, more powerful windlass to operate efficiently. A light cruising sailboat, a heavy trawler, and a performance yacht all have very different demands, and your anchoring system should match those real-world conditions.
Your anchoring environment matters just as much. If you regularly anchor in strong currents, deep water, rocky bottoms, or high-wind locations, choose a windlass with higher pulling power and increased durability. A properly matched system means smoother retrieval, less strain on your equipment, and a safer experience on deck.
Which Maxwell windlass fits my boat length?
The chart below is Maxwell’s starting point for matching a windlass model to boat length overall (LOA). Every boat is different, so treat it as a baseline and size up if your boat is heavy for its length or you anchor in demanding conditions.
| Windlass model | Boat length overall (ft), as Maxwell publishes it |
|---|---|
| RC6 | 15–25 |
| RC8-6, RC8-8 | Maxwell publishes no boat length for the RC8 |
| RC10-8, RC10-10 | 30–48 (one range for the RC10 family) |
| RC12-10, RC12-12 | 30–65 (one range for the RC12 family) |
| AnchorMax | Up to 33 (maximum LOA) |
| HRC-6, HRC-8, HRC10-8, HRC10-10 | Maxwell publishes no boat length for the HRC series |
| VC/VW/VWC/HWC 500–3500 | Maxwell publishes no boat length for these |
Maxwell calls its own windlass selection guidance a rough guide only, and says the choice also depends on the boat's size and displacement, its windage, the anchor and rode you carry, locker space, how you use the boat, the conditions you anchor in and your power system. Where Maxwell publishes no boat length — the RC8, the HRC series and the VC, VW, VWC and HWC chain windlasses — size the windlass from the chain diameter you already carry and from its maximum pull against the weight of your ground tackle, not from a length band.
Should I choose a vertical or horizontal Maxwell windlass?
Vertical models (such as the VC, VW, and VWC series) mount the motor and gearbox below deck, which keeps deck clutter low and gives the chain roughly 180 degrees of wrap around the gypsy for a secure grip. They need adequate chain-locker depth below the deck. Horizontal models (such as the HRC and HWC series) keep the whole unit above deck, which simplifies installation on boats with shallow lockers or limited access below.
Within the larger vertical series you can also choose between gypsy-only and gypsy + drum configurations: the gypsy handles the chain, while an added drum (capstan) lets you handle rope for warping, docklines, or a secondary rode.
How much pulling power does my windlass need?
As a general rule, the maximum pulling capacity of your windlass should be at least three times the total weight of your ground tackle — anchor, chain, and rode combined. That margin covers not just the static weight but the extra loads from waves, wind, and boat movement during retrieval.
Every anchor winch system also assumes you will use a chain stopper, chain snubber, or mooring cleat to take the load off the windlass once the anchor is set or needs breaking loose. These components protect the windlass from stress it was never designed to carry and significantly extend its service life.
What controls and accessories complete a Maxwell installation?
A complete system typically includes a deck-mounted up/down foot or rocker switch, and many owners add a handheld remote such as the Maxwell AA320 for control from anywhere on the foredeck. Sensor and magnet kits enable chain counters so you know exactly how much rode is deployed. Maxwell also supports its windlasses with replacement parts — motor brush kits, gearbox seal kits, and replacement motors — so units stay serviceable for the long haul.
Frequently asked questions
What size Maxwell windlass do I need for my boat?
Match the model to your boat’s length overall using Maxwell’s chart — for example, Maxwell lists the RC6 for 15–25 ft boats and the RC10 for 30–48 ft — then size up if your boat is heavy or high-windage for its length.
How powerful should my windlass be compared to my ground tackle?
The windlass’s maximum pulling capacity should be at least three times the combined weight of your anchor, chain, and rode to handle wave, wind, and boat-movement loads.
Do I need a chain stopper or snubber with a windlass?
Yes. Once the anchor is set, a chain stopper, snubber, or mooring cleat should take the load — the windlass is designed to raise and lower the anchor, not to hold the boat at anchor.
What is the difference between gypsy-only and gypsy-plus-drum windlasses?
The gypsy is the chain wheel that grips and feeds the anchor chain; adding a drum (capstan) lets you also handle rope for warping, docklines, or a secondary rode.
Are Maxwell windlasses available in 12V and 24V?

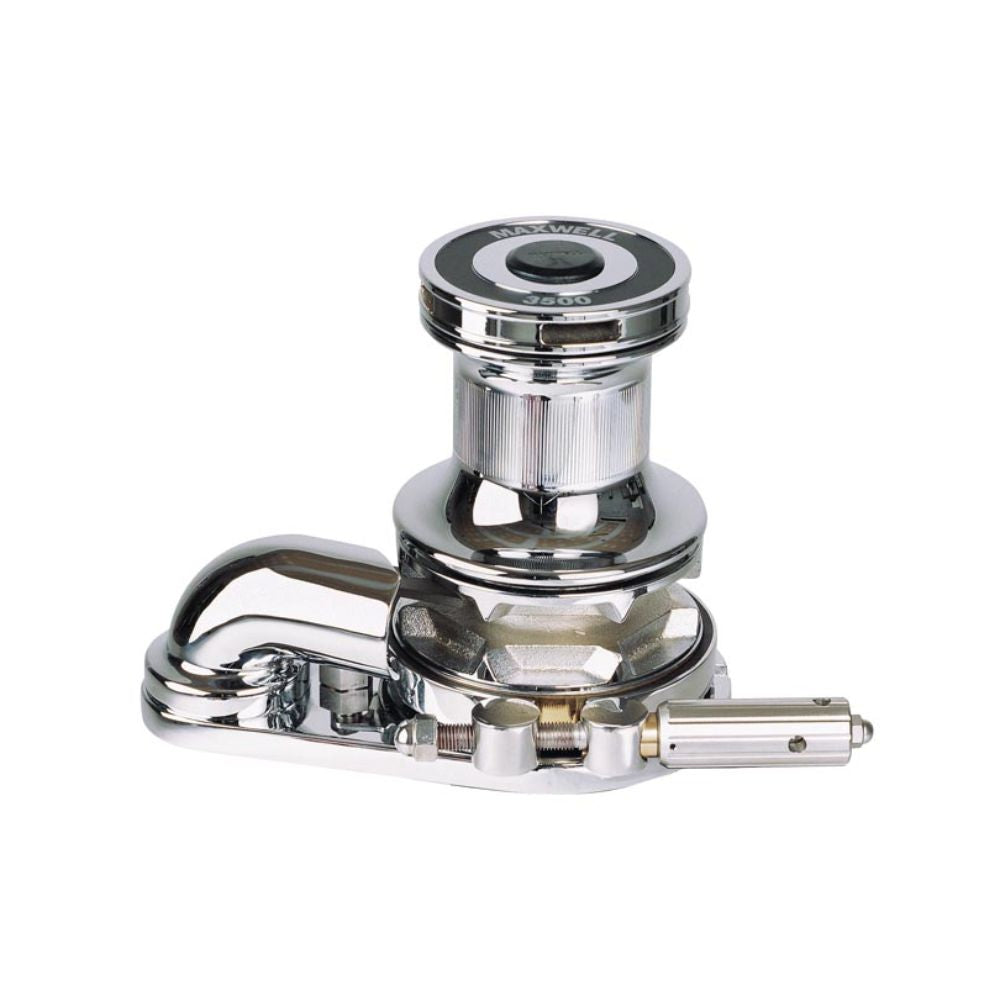

Yes. Larger models such as the VWC 3500 (1200W) are offered in both 12V and 24V versions, so you can match the windlass to your boat’s electrical system.
Does anchoring environment affect which windlass I should buy?
Absolutely — if you regularly anchor in strong currents, deep water, rocky bottoms, or high-wind areas, choose a windlass with higher pulling power and greater durability than the minimum for your boat length.
