How to Choose Sailboat Blocks

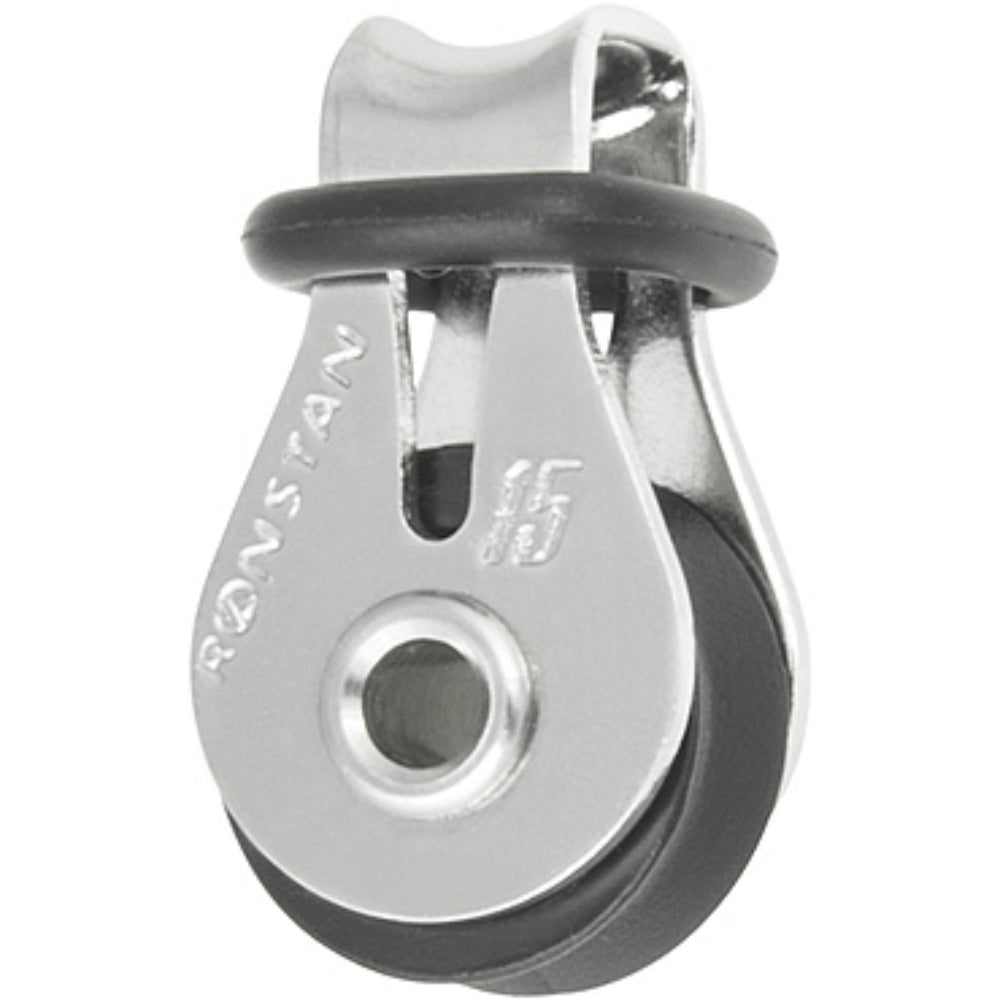

Ronstan Series 15 ball-bearing single sailboat block

Sailboat blocks are pulleys that redirect running rigging around corners and multiply mechanical advantage so a crew of any size can trim and control sails under load. Choosing the right block comes down to three numbers—Working Load Limit, sheave diameter, and bearing type—matched to the line size and load at each position on your boat.

Sailboat blocks at a glance

Block type Sheaves Primary use Typical WLL range
Single 1 Turning / lead blocks, purchase termination 500–5,000+ kg
Double 2 Mainsheets, vangs (2:1 with a single) 1,000–4,000 kg
Triple / Fiddle 3 / 2 stacked Vangs, backstays, cascades, control lines 400–3,000 kg
Ratchet / Snatch 1 Sheet holding effort / mid-line attachment Application-specific

What is a sailboat block and what does it do?

A block is a mechanical device built around one or more rotating sheaves. It performs two essential jobs: redirecting lines around corners and through complex routing paths, and multiplying mechanical advantage so sail handling stays manageable. Whether you are trimming a mainsheet on a 25-foot daysailer or managing a backstay cascade on a 60-foot offshore racer, the blocks you choose directly affect how efficiently you control sails and how much safety margin you carry under load.

Every block's performance is governed by three interrelated factors: the Working Load Limit (WLL) that defines the maximum safe operating load, the sheave diameter that influences line wear and friction, and the bearing system that determines rotation efficiency under both light and heavy loads. Modern blocks have moved well beyond simple wooden shells with bronze sheaves, now using anodized aluminum frames, composite housings, Torlon bearings, and high-molecular-weight polyethylene sheaves to cut weight aloft and reduce friction losses.

Ronstan Series 15 ball-bearing single block with loop top
Ronstan Series 15 BB Block, Single Loop Top — a compact ball-bearing single block suited to control lines and light-load leads on small to mid-size boats.

How do I choose the right Working Load Limit?

Working Load Limit represents the maximum load a block should see in normal operation, typically calculated as 40–50% of the block's ultimate breaking strength. That safety factor absorbs dynamic loading, shock loads from waves, and cumulative wear over the block's service life. Calculate your expected loads from sail area, wind pressure, and purchase-system ratios, then select blocks whose WLL exceeds your calculated maximum by at least 25%.

For mainsheets on boats under 30 feet, blocks rated 500–1,200 kg WLL generally give adequate capacity with appropriate margin. Mid-size cruisers from 30–45 feet typically need mainsheet blocks in the 1,200–2,500 kg range, while larger yachts and performance boats may demand 4,000 kg WLL or higher. Because the boom-end block sees full sail load while cockpit blocks see progressively less, you can optimize weight and cost by specifying appropriate ratings for each position rather than oversizing everything.

Update (October 2026): rating the loaded side and when to step up

Work out the peak load the block will actually see at that point, then choose a block whose rated working load covers it with margin. Rate to the loaded side of any tackle, not the light hauling end, because the block near the load carries far more than the line you pull. When your load lands between two sizes, step up to the larger block rather than run a block near its limit; the heavier block runs cooler, lasts longer, and gives you headroom for gusts and shock loading.

Weight aloft matters on a performance-cruiser, but never drop below the working load the point actually sees. If two sizes both cover the load, the lighter one is a fair choice.

How does sheave diameter affect line wear?

Sheave diameter directly drives both line wear and friction. The fundamental rule is that sheave diameter should be at least eight times the diameter of the line it carries—so a 12 mm line wants a minimum 96 mm sheave. Exceeding that ratio reduces line fatigue and friction, and high-performance systems often run 10:1 or 12:1 for critical applications. Lines forced around undersized sheaves suffer accelerated core fatigue, premature cover wear, and much higher friction.

Groove profile matters too. Modern Dyneema-core lines run best on relatively flat grooves that spread load across the line's width, while traditional three-strand and double-braid lines prefer deeper V-grooves that center the line. Racing sailors sometimes push diameter limits to save weight aloft and accept faster wear; cruisers prioritizing longevity should err toward larger sheaves, especially for hard-working halyards.

Update (October 2026): matching the sheave to your actual line

Size the sheave to the line the block will carry, using the line-diameter range stated on the product page. Pick the block whose stated line range brackets your actual line diameter, and if you plan to upsize the line later, size for the larger line now. If your line sits at the top of one block’s range and the bottom of the next, prefer the larger sheave: the gentler bend radius reduces friction and line wear. Never force a line above a block’s stated maximum diameter.

Which bearing system should I choose?

Ball-bearing blocks run captured stainless or ceramic balls in machined races, delivering the lowest friction under moderate to heavy loads—ideal for mainsheets, halyards, and multi-part purchases where friction compounds through the cascade. They reward fine trim sensitivity but need periodic service. Plain bushing blocks use Delrin or Torlon rotating on a stainless or aluminum axle; they trade a little friction for excellent durability and minimal maintenance, and they often feel smoother than balls under very light loads. Roller-bearing blocks sit in between, resisting contamination better than balls while keeping friction low.

Karver KBO1 double block for mainsheet and vang purchases
Karver KBO1 Double Block — two sheaves in parallel for building 2:1 purchase in mainsheet and vang systems.

Update (October 2026): match the bearing to the duty of each point

Ball-bearing blocks pay off on dynamic, frequently adjusted controls such as mainsheets, travelers and jib sheets, where you trim constantly. Plain-bearing (bushing) blocks tolerate high static load better, so they suit leads and turning points that sit loaded for long periods without moving, such as halyard leads and reefing lines. Match the bearing to the duty of each specific point rather than fitting one type across the boat.

Ronstan Series 20 BB Orbit ball-bearing block with becket
Ronstan Series 20 BB Orbit Block, Single with Becket — a ball-bearing block for smooth, low-friction trimming.

Which block type fits each job?

Single blocks redirect a line without adding purchase, serving as turning blocks, lead blocks, and termination points; swivel heads let them track line angle and beckets anchor standing ends. Double blocks add a second parallel sheave to build 2:1 with a matching single, the workhorse of mainsheets and vangs. Triple blocks extend to 3:1 for vangs, backstays, and heavy mainsheets. Fiddle blocks stack two different-diameter sheaves vertically for a compact footprint and cleaner cascades in tight cockpits. Ratchet blocks use a one-way clutch that lets the sheave spin free one way and lock under load, cutting holding effort on sheets. Snatch blocks open on one side for mid-line attachment without threading a line end—convenient but rated lower than equivalent fixed blocks.

Frame material follows the same logic: stainless steel for maximum durability on bluewater cruisers, aluminum for the best all-round balance of strength, weight, and cost, and composite or carbon for the lightest racing hardware. Match the head configuration—swivel, fixed, universal, or becket—to the mounting point and loading direction at each position.

Update (October 2026): how attachment style changes the choice

The head fitting has to suit both the load and the mounting point. Swivel heads let the block align itself with the load and suit sheets and leads that change angle. Loop-top and soft-loop blocks self-align the same way, keeping the sheave square to the line. Fixed heads hold a set orientation for a consistent lead. Cheek and mast-base blocks bolt flat to a surface, cabin top or mast base to turn a line close to the deck where a hanging block would foul. Snatch heads open to take the line at the bight for gear you rig and clear quickly. Choose the head that matches the geometry of the job, then confirm the block’s working load still covers the point.

Harken Cruising ESP aluminium 75mm single swivel block
A single swivel block: one sheave to turn or redirect a line, with a swivel head that lets the block align to the load. Confirm the sheave and line range and the working load on the product page before choosing.
Ronstan Series 29 loop-top sailboat block
Ronstan Series 29 Block, Loop Top — a loop-top block that self-aligns to the load for a clean line lead.

Start from the job, not the brand: identify the control (mainsheet, vang, traveler, halyard lead, sheet turning point), estimate the peak load there, and note the line diameter. Then pick the block whose stated line range brackets your line and whose working load covers your peak with margin.

Frequently asked questions

What is the difference between Working Load Limit and breaking strength?

WLL is the maximum load a block should see in normal use; breaking strength is the load at which it fails catastrophically. WLL is typically 40–50% of breaking strength, and you should always size to WLL—exceeding your calculated maximum by at least 25%—never to breaking strength.

How do I estimate the load on my mainsheet blocks?

For a rough estimate, multiply mainsail area in square feet by 0.004 times wind speed in knots squared—a 300 sq ft main in 25 knots is about 750 lb at the boom. Divide by your purchase ratio for cleat load, add roughly 50% for dynamic shock loading, and remember the boom-end block sees the full sail load while cockpit blocks see less.

Should I choose ball-bearing or plain-bearing blocks?

Ball bearings give the lowest friction under moderate to heavy loads and suit mainsheets, halyards, and multi-part purchases. Plain (bushing) bearings are more durable, need less maintenance, resist grit and salt contamination, and often feel smoother under very light loads—a strong choice for reliability-focused cruising.

How often should I service my blocks?

Inspect all blocks at least twice a year and rinse with fresh water after saltwater sailing. Check sheaves for scoring and spin them to feel for roughness or play. Ball-bearing blocks typically want annual disassembly, cleaning, and light marine-grade lubrication; plain-bearing blocks usually need only occasional flushing unless contaminated.

What is the advantage of a fiddle block over a standard double?

A fiddle block stacks two sheaves vertically instead of side by side, giving a compact footprint and cleaner leads in tight spaces. The larger lower sheave carries the loaded part while the smaller upper sheave handles the fall, reducing tangling in vangs, cunninghams, and other control cascades.

Can a ratchet block be switched off?

Yes. Quality ratchet blocks include an engagement switch that disables the ratchet for free-running operation—useful in light air, when flaking sails, or when the lockup interferes with trim. The mechanism adds slight friction even when disengaged, so light-air racers sometimes prefer standard blocks.

Can I use a smaller, lighter block to save weight aloft?

Only within its rating. Weight aloft matters on a performance-cruiser, but never drop below the working load the point actually sees. If two sizes both cover the load, the lighter one is a fair choice; if you are near the limit, step up.

Do I need ball bearings everywhere?

No. Ball bearings pay off where you trim and adjust constantly, because they cut friction under motion. On leads and turning points that sit loaded and rarely move, a plain-bearing block often lasts longer and handles the static load better. Match the bearing to the duty of each specific point rather than fitting one type across the boat.

My line is between two sheave sizes — which way do I go?

Go to the block whose stated line range brackets your line. If your line sits at the top of one block's range and the bottom of the next, prefer the larger sheave: the gentler bend radius reduces friction and line wear. Never force a line above a block's stated maximum diameter.
