A single block is a sailboat pulley with one sheave, used to redirect a line or provide simple mechanical advantage in your running rigging. Choosing the right one comes down to matching sheave diameter to your line size, picking the correct attachment (swivel or fixed), and rating the block well above your working loads.
Single blocks at a glance
| Attribute | What to look for | Why it matters |
|---|---|---|
| Sheave diameter | 6–10× your line diameter | Larger sheaves reduce friction and extend rope life |
| Attachment | Swivel vs. fixed head | Swivel self-aligns to changing loads; fixed suits steady angles |
| Material | Aluminum vs. stainless steel | Aluminum saves weight and cost; stainless maximizes durability |
| Load rating | Working load with 4:1 safety factor | Blocks must be rated well above your expected peak loads |
What is a single block and what is it used for?
A single block houses one sheave inside a shell and is the most common pulley on a sailboat. On its own it redirects a line around a corner — a turning block for a jib sheet, a lead for a control line, or a masthead halyard block. Paired with other blocks it becomes part of a purchase system that multiplies your pulling power. Because it does so much work, matching the block to the line and load is the single most important decision.
How do I choose the right sheave size?
The sheave diameter should be roughly 6–10 times the diameter of your line. Undersized sheaves crush the rope, add friction, and shorten its life, while a generously sized sheave lets the line run smoothly under load. For example, 12mm running rigging pairs well with a 75mm-and-up sheave. Larger blocks handle thicker lines and higher loads — heavy-duty applications on bigger boats step up to 125mm, 155mm, and 175mm sheaves.
Swivel or fixed head — which attachment should I choose?

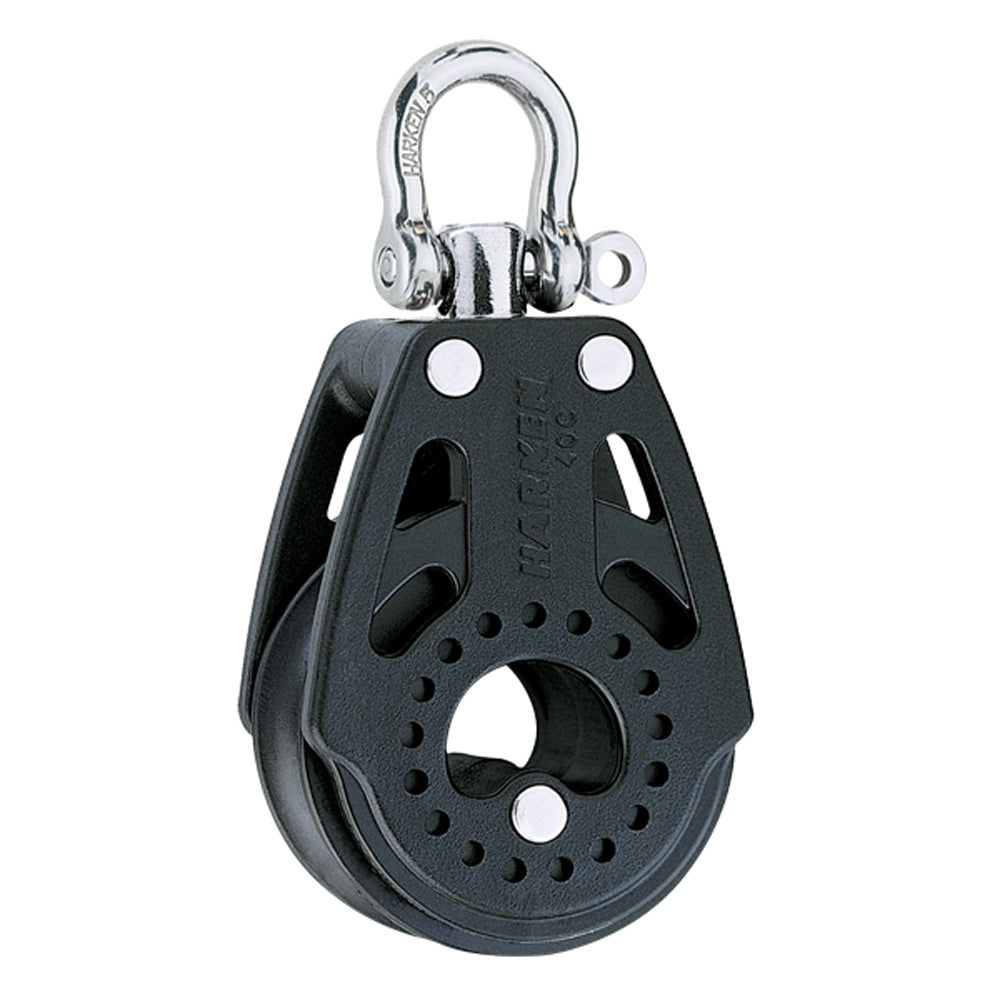

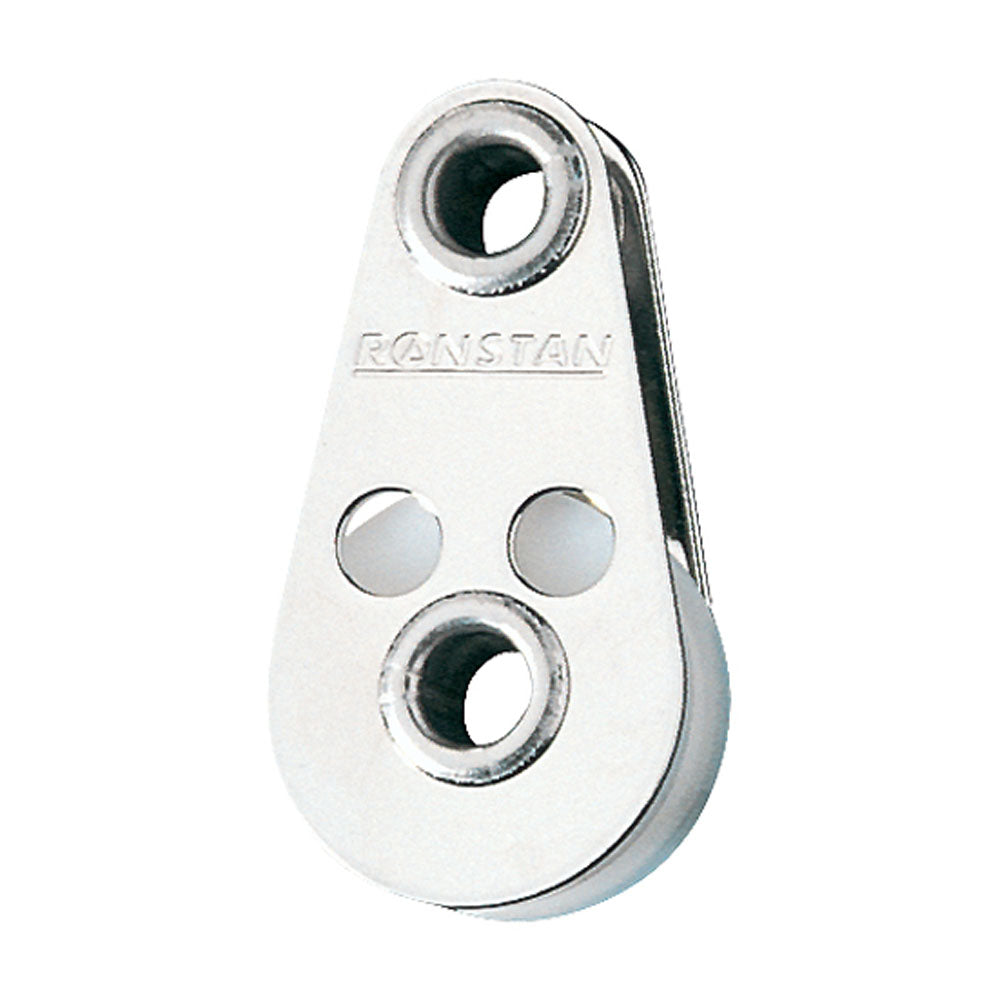

Swivel blocks rotate at the attachment point so the sheave automatically lines up with the load, which reduces side-loading and wear on frequently adjusted lines like jib sheets and halyards. Fixed-head (teardrop) blocks lock the sheave in one orientation, giving a lower-profile, lighter unit that is perfect for set-and-forget positions where the load angle never changes, such as a boom vang or a fixed lead. When in doubt, choose swivel for lines that move and fixed for lines that stay put.
Aluminum or stainless steel — which material is best?
Aluminum blocks deliver an excellent strength-to-weight ratio at a lower price, which makes them the go-to for racing and for masthead locations where weight aloft matters. Stainless steel blocks trade some weight and cost for maximum corrosion resistance and higher load ratings, making them the choice for primary systems and demanding offshore or saltwater conditions. Many sailors mix both — aluminum where weight counts, stainless where longevity and load are critical.
How much load can a single block handle?
Working load limits scale with sheave size and material. Smaller 75mm blocks typically handle around 1,000–2,000 lbs working load, while large 175mm megayacht blocks manage several thousand pounds and up. Quality single blocks are engineered with safety factors of 4:1 or higher, so always confirm the manufacturer's rated working load and select a block comfortably above your expected peak loads.
Frequently asked questions
What is a single block on a sailboat?
A single block is a pulley containing one sheave. It redirects a line around a corner or, combined with other blocks, forms part of a purchase system that multiplies pulling power.
How do I size the sheave for my line?
Choose a sheave diameter about 6–10 times your line diameter. For 12mm line, look for a 75mm or larger sheave; bigger sheaves cut friction and extend rope life.
When should I use a swivel block instead of a fixed head?
Use a swivel block for lines whose load angle changes, such as jib sheets and halyards, so the sheave self-aligns. Use a fixed head for steady-angle, set-and-forget positions.
Are aluminum blocks strong enough for offshore use?
Aluminum blocks perform well for most applications and save weight, but for primary systems and harsh saltwater conditions stainless steel offers greater corrosion resistance and higher load ratings.
What working load should I plan for?
Smaller 75mm blocks handle roughly 1,000–2,000 lbs working load and larger megayacht blocks far more. With typical 4:1 safety factors, always pick a block rated well above your expected peak load.
