A rope clutch holds a loaded sailboat line — sheet, halyard, or reef line — in place with a spring-loaded, toothed cam that bites down on the rope when you close the lever, yet still lets you release the line smoothly even under full load. MAURIPRO stocks Spinlock, Lewmar, and Antal rope clutches sized to your line's diameter and load, so several lines can share one winch.
Rope clutches at a glance
| Clutch | Line range | Rated load | Best for |
|---|---|---|---|
| Spinlock XAS Single | 6–12 mm (1/4–1/2 in) | 575 kg (1,270 lb) | Small-to-mid cruisers, control lines |
| Lewmar DC1 Single | 10–12 mm (3/8–1/2 in) | 500 kg (1,100 lb) WLL | Halyards and reef lines, 30–40 ft boats |
| Antal V-Grip 10 Single | 8–12 mm (5/16–1/2 in) | 1,000 kg MWL | Higher-load halyards, spinnaker gear |
| Spinlock XTS Double | 8–14 mm (5/16–9/16 in) | 1,000 kg WLL* | Two lines sharing one winch |
*Working load limit is rope-dependent — per Spinlock, the typical failure mode on an overloaded clutch is rope slip or rope damage, not a broken clutch body.
Example clutches referenced in this guide (all active MAURIPRO stock):
| SKU | Part | Price |
|---|---|---|
| XAS0612/1 | Spinlock Rope Clutch, Single XAS, 6–12 mm | $100.95 |
| 29101112BK | Lewmar Rope Clutch, Single DC1, 10–12 mm | $93.95 |
| 507.111 | Antal Rope Clutch, Single V-Grip 10, 8–12 mm | $164.00 |
| XTS0814/2 | Spinlock Rope Clutch, Double XTS, 8–14 mm | $308.95 |
On a 30–45 ft cruiser, rope clutches are the reason you don't need a dedicated winch for every line on deck. They're simple devices, but sizing the wrong one — too small for the line, or rated for a load it can't actually hold — is a common and avoidable mistake.
This guide covers what a rope clutch does, how the cam mechanism actually grips and releases a loaded line, how it differs from a jammer or a cam cleat, and how to size and mount one correctly. MAURIPRO stocks single, double, and triple clutch banks from Lewmar, and single through quadruple clutch banks from Spinlock and Antal.
What does a rope clutch actually do on a sailboat?
A rope clutch locks a line in place under load without needing a winch, cleat hitch, or a crew member holding it. Once a halyard, sheet, or reefing line is loaded onto a winch and tensioned, closing the clutch takes over holding that load — freeing the winch to work the next line.
This is what lets a shorthanded cockpit run six or eight control lines through two winches instead of needing a winch for every single line: each line gets its own clutch, and the clutches share a bank of winches behind them.
How does the clutch mechanism grip and release a loaded line?
Inside the clutch body is a toothed cam (sometimes called a jaw or a "domino" cluster, depending on the brand) hinged to a handle. With the handle open, the line runs through freely. Closing the handle drops the cam onto the rope; line tension itself helps drive the cam's teeth into the rope's cover, and the more load on the line, the harder the cam bites.
That self-energizing action is also what makes a rope clutch safe to release under load — pulling the handle back lifts the cam clear of the rope in a controlled way, rather than letting it snap free all at once. Multiple manufacturer and rigging-reference sources describe this same basic behavior: the line can still be trimmed in through a closed clutch, but it won't run back out until the handle is opened.
Rope clutch vs. jammer vs. cam cleat — what's the difference?
All three hold a line, but they behave differently under load. A cam cleat grips with two spring-loaded, toothed cams squeezing the line from both sides; it's fast to load and release but isn't rated for the same working loads as a clutch, and it's meant for lighter control lines, not halyards.
A jammer is closer to a rope clutch in that it locks a line under real load, but the classic distinction is release: a true rope clutch is designed to release cleanly with the line still under tension, while some jammer designs are harder to open under full load and are better suited to lines you rarely ease while loaded (see MAURIPRO's Jammers vs. Clutches guide for the deeper breakdown). For halyards and reef lines you need to ease in a hurry, a rope clutch rated for release-under-load is the safer choice.
How do you size a rope clutch to your line diameter and load?
Every clutch is built around a rope-diameter window, and that window is the first filter — a clutch rated for 8–12 mm line won't grip a 6 mm control line reliably, and forcing an oversized line into an undersized clutch strains the cam and the line cover both. Match the clutch's stated range to the actual line you're running, not the line you think you'll eventually upgrade to.
Rated load is the second filter. The Antal V-Grip 10, for example, carries a manufacturer-stated maximum working load (MWL) of 1,000 kg for an 8–12 mm line, weighs 0.55 kg, and measures 132 × 34 × 68 mm — specs worth checking against your halyard or sheet's expected working load, not just its breaking strength. As a rule of thumb, size the clutch to the line's working load with margin, not to the boat's length alone.
How many lines can share one rope clutch bank, and why do it?
Clutches come in single, double, triple, and quadruple banks — each additional barrel adds one more line that can be locked off independently while still routing to a shared winch behind the bank. This is the standard way cruisers consolidate halyards, reef lines, and control lines at the mast base or companionway without adding a winch for each one.
The tradeoff is deck space and cost: a quadruple bank is wider and pricier than four single clutches mounted separately, but it keeps the lines organized in one footprint and usually feeds a single pair of winches. Pick the bank size based on how many lines you actually need to lock off at that station, not the maximum the deck could fit.
How is a rope clutch mounted on deck?
Clutches mount with through-bolts or self-tapping screws into a solid base — the Antal V-Grip 10, for instance, uses two 6 mm fixing screws. On cored decks, that base needs solid backing (a backing plate or solid laminate) under the fasteners; mounting straight into balsa or foam core without backing is a common way clutches work loose under repeated load cycles.
Line up the clutch so the rope enters as close to straight as possible — a sharp entry angle into the cam adds friction and uneven wear. Most cruisers mount the bank just forward of the winches it feeds, angled so the line runs fair from the deck organizer through the clutch to the winch drum without a kink.
Common mistakes sailors make with rope clutches
- Undersizing for the line. A clutch rated for a smaller diameter than your actual line won't grip consistently and accelerates cover wear.
- Skipping the backing plate. Fasteners into unsupported cored deck are the most common reason a clutch works loose.
- Loading the clutch instead of the winch. Clutches hold static load; they're not meant to be the primary tensioning point — tension on the winch first, then close the clutch.
- Ignoring line entry angle. A line that enters the cam at a sharp angle wears unevenly and can bind on release.
- Mixing clutch and rope construction blindly. A worn or glazed rope cover can slip in a clutch that grips a fresh line of the same diameter fine — check the rope's condition, not just its size, if a clutch starts slipping.
Expert notes
From our rigging bench: the single most common clutch complaint we hear isn't a failed cam — it's a clutch that was bolted straight into cored deck with no backing plate, and it works loose within a season.
From our rigging bench: when a customer tells us a clutch is "slipping," the rope's cover is glazed or worn smooth more often than the clutch is actually undersized — we check the line before we recommend a bigger clutch.
From our rigging bench: for a cruising boat adding a clutch bank at the mast, we default to one size up from the minimum line diameter you're running today — halyards tend to get swapped for slightly heavier line at the next re-rig, not lighter.
Frequently asked questions
Can I release a rope clutch while it's under full load?
Yes — that's the defining feature of a true rope clutch versus some jammer designs. Pulling the handle back lifts the cam off the rope in a controlled way, so the line can be eased even at or near its working load.
What line size do I need for my rope clutch?
Match your actual line's diameter to the clutch's stated range — for example, the Antal V-Grip 10 covers 8–12 mm line, while the Spinlock XAS single covers 6–12 mm depending on the model. Check the diameter stamped on your existing line or its spec sheet before ordering.
Do I need a clutch for every line, or can lines share one?
Lines don't need individual winches, but each line generally gets its own clutch barrel within a bank so it can be locked and released independently; the winch behind the bank is what's shared.
Is a rope clutch strong enough for a spinnaker halyard?
Many are — the Antal V-Grip 10 is rated to 1,000 kg MWL, well within range for most spinnaker halyard loads on a mid-size cruiser — but always check the clutch's stated rating against your halyard's actual working load, not just its breaking strength.
How is a rope clutch different from a cam cleat?
A cam cleat uses two opposing spring-loaded cams and is built for lighter control lines with fast in-and-out handling; a rope clutch uses a single hinged cam rated for higher, sustained loads like halyards and reef lines, and is designed to release cleanly even at full load.
Recommended rope clutches from MAURIPRO
A short list of active, in-catalog picks spanning the common line-diameter ranges on a mid-size cruiser:

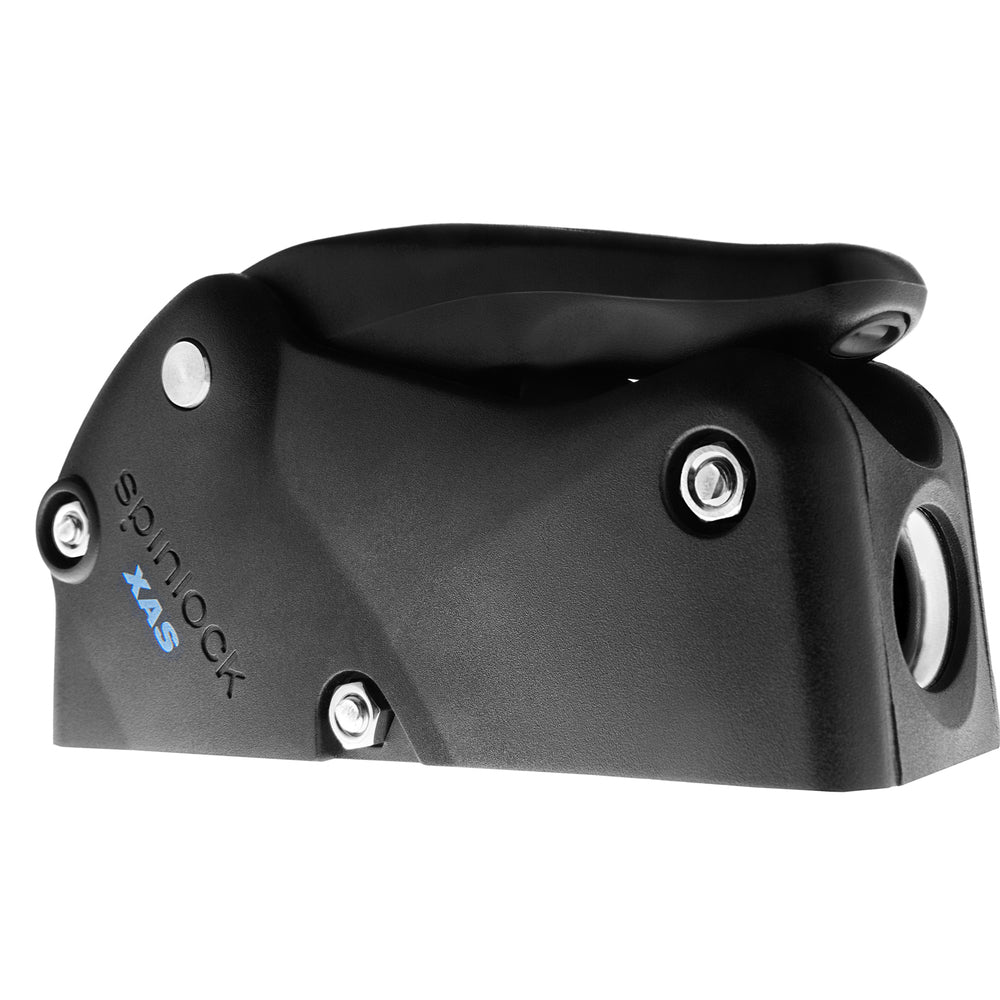

- Spinlock Rope Clutch, Single XAS (6–12 mm) — a compact single clutch rated to 575 kg, sized for control lines and smaller halyards.
- Lewmar Rope Clutch, Single DC1 (10–12 mm) — Lewmar's wide-surface "Domino Cluster" cam, rated to 500 kg WLL.
- Antal Rope Clutch, Single V-Grip 10 (8–12 mm) — 1,000 kg MWL, a strong option for higher-load halyards.
- Spinlock Rope Clutch, Double XTS (8–14 mm) — two barrels sharing one footprint, for lines that need to lock off independently at one station.
