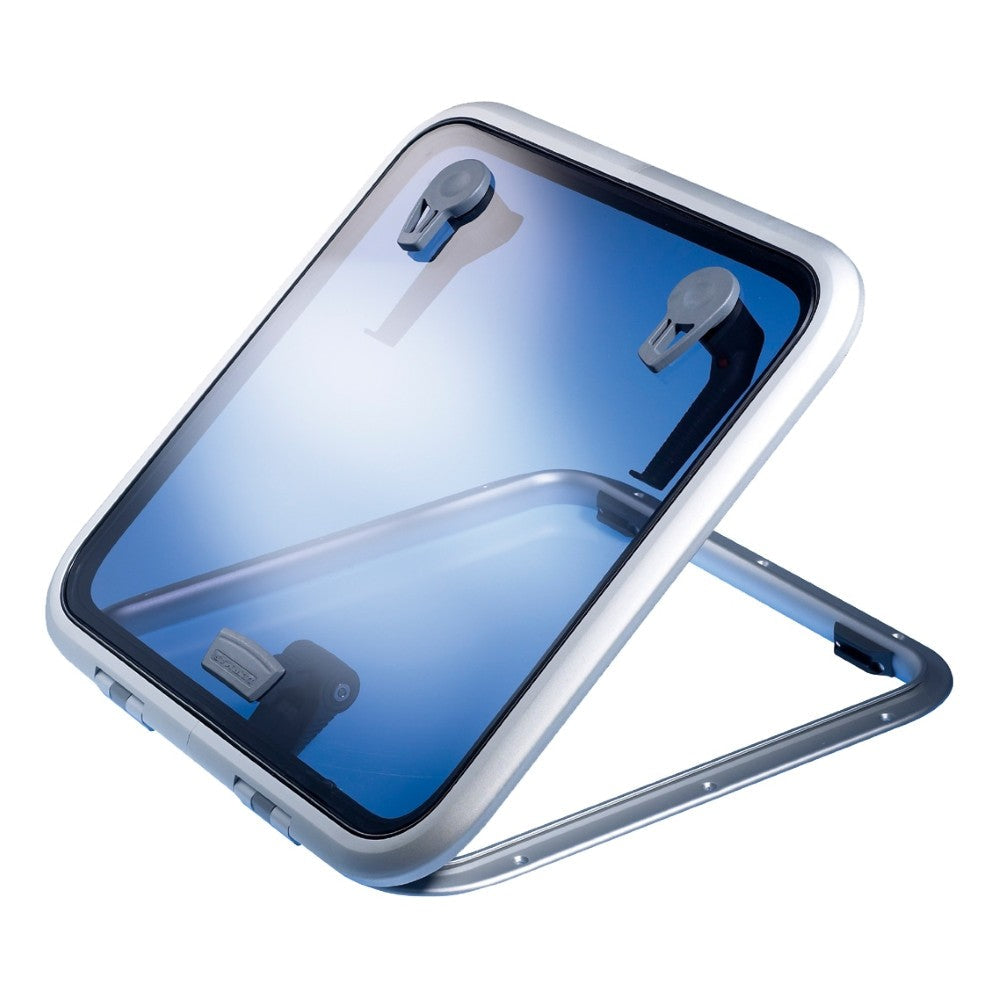

A Lewmar Low Profile hatch is built from seven main parts: the acrylic lid, a rubber seal, inside and outside handles, a friction hinge kit, joining inserts and screws, upper and lower anodized-aluminum frames, and a friction leveler. Understanding how these pieces fit together makes it far easier to service a hatch or order the correct replacement part instead of a whole new unit.
Lewmar Low Profile hatch parts at a glance
| Part | Material / type | Function |
|---|---|---|
| Acrylic lid | Grey, smoke or green acrylic | Weight-bearing window; the most important structural part |
| Seal | Rubber | Holds the acrylic and seals the lid; includes an air hole |
| Handles | Inside & outside pair | Open and close the hatch from both sides |
| Hinge kit (friction) | Caps, pins & spacer | Joins upper and lower lid; sets opening friction |
| Inserts & screws | 2 inserts + 8 screws per lid | Hold the two-part frame and hinge kit together |
| Upper & lower frames | Anodized aluminum | Give the lid its 22 mm low-profile thickness |
| Friction leveler | Adjustable stay | Holds the hatch open at an angle |
What is a Lewmar Low Profile hatch?
Almost every mono- and multi-hull sailboat carries hatches, and the Lewmar Low Profile is one of the most common designs on cruising and racing boats. It provides ventilation and access from the deck to storage or living space below while sitting only about 22 mm proud of the deck. Most sailors have several aboard but rarely know exactly how they are put together — knowledge that becomes critical the moment a part fails or a general inspection is due.
How is the lid assembled?
The acrylic is the heart of the hatch: it is strong enough to support a sailor's weight and comes in grey, smoke and green. It is held by a rubber seal that runs around its edge. When replacing that seal, locate the small air hole — it sits at the handle end of the acrylic, so when the hatch closes the trapped air escapes toward the hinge end and out through the last possible point. The two halves of the lid frame are locked together by joining inserts (two on each side) and screws — four per side, eight in total — which also keep the hinge kit in position.
What does the hinge kit do?
The friction hinge kit is what holds the upper and lower parts of the hatch together and controls how the lid stays open. Its key components are the hinge caps that cover the whole assembly, the hinge pins that join the upper and lower sections, and the black cap (also called the spacer). These parts must be removed whenever you replace the lid. Working alongside the hinge, the friction leveler keeps the hatch held open at an angle so it does not slam shut.
Which parts should I check during maintenance?
Start with the handles: the outside handles are smaller than the inside pair and, when the hatch is unlocked, let you open it from on deck. Then inspect the seal for hardening or cracks, confirm the air hole is clear, and check the upper and lower frames — made of anodized aluminum for corrosion resistance — for pitting or damage. Finally, test the hinge kit and friction leveler so the lid opens smoothly and stays put. Ordering the specific part you need is almost always cheaper than replacing the entire hatch.
Frequently asked questions
What are the main parts of a Lewmar Low Profile hatch?
The acrylic lid, rubber seal, inside and outside handles, friction hinge kit, joining inserts and screws, upper and lower aluminum frames, and a friction leveler.
What is the acrylic made of and what colors are available?
The lid is acrylic strong enough to bear a sailor's weight, and it is offered in grey, smoke and green.
Where is the air hole on the seal?
It sits at the handle end of the acrylic, so when the hatch closes the air escapes toward the hinge end and out through the last possible point.
How many screws hold the hatch frame together?
There are four screws on each side of the lid — eight in total — plus two joining inserts on each side, which also keep the hinge kit in position.
What makes it a "low profile" hatch?
The upper and lower anodized-aluminum frames give the lid a slim thickness of about 22 mm, so it sits low above the deck.
Can I replace individual parts instead of the whole hatch?
Yes. The seal, handles, hinge kit, inserts, screws and friction leveler are all serviceable parts, so a worn component can be replaced without buying a complete new hatch.
