Boomkicker Boom Vangs: Which Model Fits Your Boat, and Where to Find Kits and Spares
A Boomkicker is a rigid boom vang built on spring rods: the rods hold the boom up when the sail is down, which is why the range is sold as a replacement for the topping lift, and they pull the boom down to shape the mainsail when the sheet is eased. Choosing one comes down to the model for your boat length, whether your boat has a matched kit, and the fittings your mast and boom need. This page is the entry to the Boomkicker range; each part of it has its own collection below.
Boomkicker Models by Boat Size
- K0312, 14 to 16 ft (4.3 to 4.9 m): for small daysailers. It uses 5/16 in spring rods and a webbing sling at the boom instead of a track fitting, so it needs no drilling or tapping and rigs and de-rigs quickly for trailering.
- K0400, 16 to 19 ft (4.9 to 5.8 m), and K0500, 16 to 20 ft (4.9 to 6.1 m): the next step up. The two bands overlap, so read the product page for your boat.
- K0750, 20 to 25 ft (6.1 to 7.6 m): 1/2 in spring rods, a mast fitting with a round luff-groove slide, a boom fitting track assembly and a fastener pack with screws, drill, tap and hex wrench. See the K0750.
- K0800, 25 to 27 ft (7.6 to 8.2 m), and K1000, 27 to 30 ft (8.2 to 9.1 m): for mid-size cruisers, with fittings included. They share a mast fitting assembly, a mast bracket and a boom track slider. See the K0800 and the K1000.
- K1250, 30 to 34 ft (9.1 to 10.4 m), and K1500, 34 to 38 ft (10.4 to 11.6 m): the K1500 uses coated solid fibreglass spring rods, a custom extruded boom track that fits round and flat-bottom booms, and an adjustable clevis pin for setting the boom height; its mast fitting uses a round slide in the luff groove, so there is no drilling into the mast. The K1250 shares its fittings and spares with the K1500. See the K1500.
- K2000: a heavy-duty assembly with two solid fibreglass spring rods and universal mast and boom fittings. The listing gives no boat-length band, so confirm the fit for your boat before ordering the K2000.
Boat-Specific Boomkicker Kits
Some boats have a vang already matched to the boom and mast. The catalog lists Boomkicker kits with fittings for the Catalina 22, 25, 27, 30 and C250, the Capri 22, the MacGregor 26M and 26X, the Shark 24 and the J/30, with Selden-rig versions for the Catalina 22, Catalina C250 and Capri 22. The Catalina 27 kit lists an initial pin-to-pin of 114.3 cm (45 in), a maximum pin-to-pin of 101.6 cm (40 in) and a maximum force of 1,780 N (400 lb); the Catalina 30 kit has a track with an adjustable clevis pin that sets the maximum boom lift. Start from the Catalina 22 kit or the Catalina 30 kit.
Where to Find Each Part of the Range
- Boomkicker rigid boom vangs: the K-models above and the boat-specific kits.
- Boomkicker model range and boat-specific kits: the models from K0312 to K1500, K2000 and the Catalina, Capri, MacGregor, Shark and J/30 kits.

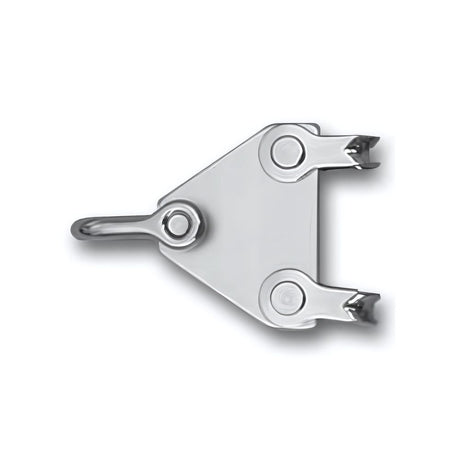

- Boomkicker vang purchase plates: double-purchase 2:1 plates rated 3,500 lb and 6,000 lb, and a heavy-duty plate.
- Boomkicker spares: spring rods in several diameters and lengths, mast fittings and brackets, mast and gooseneck slides, boom tracks and sliders, jaw extensions, webbing slings and fastener packs, each listed for the model it fits.
- Comparing brands: the boom vangs overview covers rigid, block-and-tackle and hydraulic vangs from every maker.
Choosing the Right Model
- Start from the boat-length band. The models follow the boat length, and only the K0400 and K0500 bands overlap (16 to 19 ft and 16 to 20 ft). Do not step up a size for safety: a larger model than the boat needs puts more force through the vang and makes the vang and mainsheet harder to pull on.
- Check the mast slide. The mast fitting rides in the luff groove. For the K1250, K1500 and K2000 the spares collection lists a round slide (11 mm x 73 mm) and flat slides in 16, 22 and 25 mm widths, so match the slide to your groove.
- Fittings are included. The rigid vangs are listed as including their fittings, and the boat kits are matched to a named boat, so a complete vang does not need separate mast and boom fittings.
- Purchase plates. Vang purchase plates (double purchase 2:1) are sold separately as spares, rated 3,500 lb and 6,000 lb, plus heavy-duty plates, one of them listed for boats up to 38 ft.
Our guide to choosing and sizing a boom vang works through the decision.
Who It's For
Owners of 14 to 38 ft boats replacing a topping lift, trailer-sailors who want a vang that rigs and de-rigs quickly, Catalina, Capri, MacGregor, Shark and J/30 owners looking for a vang matched to their boat, and anyone replacing a worn spring rod, slide or fitting.
Frequently Asked Questions
What size Boomkicker do I need?
Match the model to your boat length: K0312 for 14 to 16 ft, K0400 for 16 to 19 ft, K0500 for 16 to 20 ft, K0750 for 20 to 25 ft, K0800 for 25 to 27 ft, K1000 for 27 to 30 ft, K1250 for 30 to 34 ft and K1500 for 34 to 38 ft. Where bands overlap, use the product page; do not step up a size, since that raises the force on the vang.
Can a Boomkicker replace my topping lift?
Yes. The spring rods hold the boom up when the sail is down, which is what lets a Boomkicker replace a topping lift. See also our boom vang sizing guide.
Do I need to drill the mast?
Not on the models that use a luff-groove mast fitting: the K0312, K0750 and K1500 listings describe a slide in the mast's luff groove, and the K0312 needs no drilling or tapping at all. The K0750 and K1500 listings include a fastener pack with a drill, tap and hex wrench. Check the product page for your model.
Does my boat have a ready-made Boomkicker kit?
The catalog lists kits for the Catalina 22, 25, 27, 30 and C250, Capri 22, MacGregor 26M and 26X, Shark 24 and J/30, including Selden-rig versions of the Catalina 22, C250 and Capri 22. If your boat is not listed, choose the model by length.
Where do I find replacement spring rods and fittings?
In the Boomkicker spares collection. Spring rods are listed in several diameters and lengths, and mast fittings, slides, brackets and fastener packs name the model they fit, so match the part to your K-number.
