IMXFractional Sloop2000-2004

IMX 40 Parts

Lines here are cut for this rig

Rig
Fractional Sloop
I
52.52 ft
J
14.76 ft
P
49.88 ft
E
18.08 ft
Full specifications
Different version? Compare 3 related rigs
ModelIJPE
IMX 40 this page52.5214.7649.8818.08
IMX 3850.8814.4343.816.07
IMX 4559.520.4262.8324.67
IMX 45 SD59.0616.5355.9419.68

Feet, from MAURIPRO Sailboat Data. If your mast or boom differs from every row, send us your measurements before ordering.

Line type
Grade
Compare grades

Halyards 12

  • Cruising

    Mainsail Halyard

    Diameter
    12 mm (1/2 in)
    Length
    117 ft (35.7 m)
    Hardware
    Shackle
    List Price:  $412.42 USD
    $306.00 USD

    Available to order · 5 options

  • Performance Cruise

    Mainsail Halyard

    Diameter
    12 mm (1/2 in)
    Length
    117 ft (35.7 m)
    Hardware
    Shackle
    List Price:  $994.53 USD
    $738.00 USD

    Available to order · 4 options

  • Club Racing

    Mainsail Halyard

    Diameter
    10 mm (3/8 in)
    Length
    117 ft (35.7 m)
    Hardware
    Shackle
    List Price:  $867.74 USD
    $644.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Mainsail Halyard

    Diameter
    10 mm (3/8 in)
    Length
    117 ft (35.7 m)
    Hardware
    Shackle
    List Price:  $1,096.81 USD
    $814.00 USD

    Available to order · 10 options

  • Cruising

    Genoa Halyard

    Diameter
    12 mm (1/2 in)
    Length
    117 ft (35.7 m)
    Hardware
    Shackle
    List Price:  $611.55 USD
    $454.00 USD

    Available to order · 5 options

  • Performance Cruise

    Genoa Halyard

    Diameter
    12 mm (1/2 in)
    Length
    117 ft (35.7 m)
    Hardware
    Shackle
    List Price:  $829.43 USD
    $615.00 USD

    Available to order · 4 options

  • Club Racing

    Genoa Halyard

    Diameter
    10 mm (3/8 in)
    Length
    117 ft (35.7 m)
    Hardware
    Shackle
    List Price:  $1,031.78 USD
    $766.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Genoa Halyard

    Diameter
    10 mm (3/8 in)
    Length
    117 ft (35.7 m)
    Hardware
    Shackle
    List Price:  $1,260.84 USD
    $936.00 USD

    Available to order · 10 options

  • Cruising

    Spinnaker Halyard

    Diameter
    12 mm (1/2 in)
    Length
    126 ft (38.4 m)
    Hardware
    Shackle
    List Price:  $630.36 USD
    $467.00 USD

    Available to order · 5 options

  • Performance Cruise

    Spinnaker Halyard

    Diameter
    12 mm (1/2 in)
    Length
    126 ft (38.4 m)
    Hardware
    Shackle
    List Price:  $874.74 USD
    $649.00 USD

    Available to order · 4 options

  • Club Racing

    Spinnaker Halyard

    Diameter
    10 mm (3/8 in)
    Length
    126 ft (38.4 m)
    Hardware
    Shackle
    List Price:  $1,070.90 USD
    $795.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Spinnaker Halyard

    Diameter
    10 mm (3/8 in)
    Length
    126 ft (38.4 m)
    Hardware
    Shackle
    List Price:  $1,317.31 USD
    $978.00 USD

    Available to order · 10 options

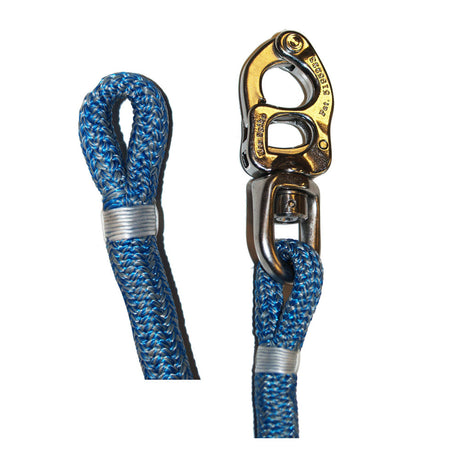

  • View moreAll IMX 40 halyards & sheets

Made up to the lengths computed from the IMX 40's rig dimensions above. Colour and taper are chosen when you add to cart.

Sheets & guys 15

  • Cruising

    Genoa Sheet

    Diameter
    12 mm (1/2 in)
    Length
    60 ft (183 m)
    Hardware
    None listed
    List Price:  $154.33 USD
    $114.00 USD

    Available to order · 5 options

  • Performance Cruise

    Genoa Sheet

    Diameter
    12 mm (1/2 in)
    Length
    60 ft (18.3 m)
    Hardware
    Soft shackle
    List Price:  $360.58 USD
    $256.00 USD

    Available to order · 4 options

  • Club Racing

    Genoa Sheet

    Diameter
    12 mm (1/2 in)
    Length
    60 ft (18.3 m)
    Hardware
    Soft shackle
    List Price:  $384.58 USD
    $274.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Genoa Sheet

    Diameter
    10 mm (3/8 in)
    Length
    60 ft (18.3 m)
    Hardware
    Soft shackle
    List Price:  $420.44 USD
    $307.00 USD

    Available to order · 8 options

  • Performance Cruise

    Asymmetrical Spinnaker Sheet

    Diameter
    10 mm (3/8 in)
    Length
    80 ft (24.4 m)
    Hardware
    Shackle
    List Price:  $828.14 USD
    $614.00 USD

    Available to order · 4 options

  • Club Racing

    Asymmetrical Spinnaker Sheet

    Diameter
    10 mm (3/8 in)
    Length
    80 ft (244 m)
    Hardware
    None listed
    List Price:  $370.79 USD
    $275.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Asymmetrical Spinnaker Sheet

    Diameter
    10 mm (3/8 in)
    Length
    80 ft (244 m)
    Hardware
    None listed
    List Price:  $528.63 USD
    $392.00 USD

    Available to order · 8 options

  • Cruising

    Symmetrical Spinnaker Sheet

    Diameter
    12 mm (1/2 in)
    Length
    80 ft (24.4 m)
    Hardware
    Shackle
    List Price:  $522.25 USD
    $387.00 USD

    Available to order · 5 options

  • Cruising

    Symmetrical Spinnaker Guy

    Diameter
    12 mm (1/2 in)
    Length
    60 ft (18.3 m)
    Hardware
    Shackle
    List Price:  $528.31 USD
    $392.00 USD

    Available to order · 5 options

  • Performance Cruise

    Symmetrical Spinnaker Sheet

    Diameter
    10 mm (3/8 in)
    Length
    80 ft (24.4 m)
    Hardware
    Shackle
    List Price:  $467.81 USD
    $347.00 USD

    Available to order · 4 options

  • Performance Cruise

    Symmetrical Spinnaker Guy

    Diameter
    12 mm (1/2 in)
    Length
    60 ft (18.3 m)
    Hardware
    Shackle
    List Price:  $647.44 USD
    $480.00 USD

    Available to order · 4 options

  • Club Racing

    Symmetrical Spinnaker Sheet

    Diameter
    10 mm (3/8 in)
    Length
    80 ft (24.4 m)
    Hardware
    Shackle
    List Price:  $903.82 USD
    $671.00 USD

    Available to order · 14 options

  • Club Racing

    Symmetrical Spinnaker Guy

    Diameter
    10 mm (3/8 in)
    Length
    60 ft (18.3 m)
    Hardware
    Shackle
    List Price:  $877.49 USD
    $651.00 USD

    Available to order · 14 options

  • Grand Prix Racing

    Symmetrical Spinnaker Sheet

    Diameter
    10 mm (3/8 in)
    Length
    80 ft (24.4 m)
    Hardware
    Shackle
    List Price:  $1,061.66 USD
    $788.00 USD

    Available to order · 8 options

  • Grand Prix Racing

    Symmetrical Spinnaker Guy

    Diameter
    10 mm (3/8 in)
    Length
    60 ft (18.3 m)
    Hardware
    Shackle
    List Price:  $996.85 USD
    $740.00 USD

    Available to order · 8 options

  • View moreAll IMX 40 halyards & sheets

Made up to the lengths computed from the IMX 40's rig dimensions above. Colour and taper are chosen when you add to cart.

Compare grades

GradeRope, as described on each productColoursTapered optionFromFilter
Cruising6 lines Cruiser XTS Polyester Double Braid Up to 5 No $114.00
Performance Cruise7 lines DX Performance SK38 with polyester cover Up to 4 No $256.00
Club Racing7 lines S Cup (Stirotec with polyester cover) Up to 7 Yes $274.00
Grand Prix Racing7 lines DX Cup Dyneema SK78 core with polyester coverTN Racing - Stirotex core / Technora Polyester cover Up to 5 Yes $307.00

Rope names are quoted from each product's own description; prices are the lowest option for the IMX 40. Not sure which grade suits your sailing? Ask us.

Winches 2

Spinnaker poles 1

Blocks 4

  • Harken Block

    Classic Midrange HexaRatchet 76mm Single

    Fiddle - 280 Cam-Matic / Becket

    Sized for this boat · Mainsheet block B (4:1 fiddle)

    List Price:  $589.05 USD
    $518.95 USD

    Available to order

  • Harken Block

    Wire High Strength 51mm

    Wire

    Sized for this boat · Boom vang cascade block (8:1)

    $119.95 USD

    Available to order

  • Harken Block

    Classic Midrange Standard 76mm Single

    Fiddle - 280 Cam-Matic / Becket

    Sized for this boat · Boom vang fiddle block with cam (8:1 cascade)

    List Price:  $481.35 USD
    $423.95 USD

    Available to order

  • View moreAll blocks

Traveler & genoa cars 4

  • Harken

    Harken Traveler Car 1 1/4 in (32.0 mm)

    Stand-Up Toggle - Purchase: 4:1

    Sized for this boat · Traveler car (Standard 4:1)

    List Price:  $561.95 USD
    $494.95 USD

    Available to order

  • Harken

    Harken ESP End Controls

    For Travelers: 6 1/4 in (32.0 mm) - Double Sheave and Cam Cleat (Pair)

    Sized for this boat · Traveler end controls

    List Price:  $649.85 USD
    $571.95 USD

    Available to order

  • Harken Genoa Car

    Slider Pinstop

    For Tracks: 1 1/4 in (32.0 mm)

    Sized for this boat · Genoa lead car (pinstop slider)

    List Price:  $1,378.50 USD
    $1,212.95 USD

    Available to order

  • Harken Block

    Cruising ESP Aluminum 100mm Single

    Footblock

    Sized for this boat · Genoa sheet footblock

    List Price:  $319.75 USD
    $230.00 USD

    Available to order

  • View moreAll travelers, tracks & genoa cars

Tracks are sold by length and are not included. Ask us for the track to suit your boat.

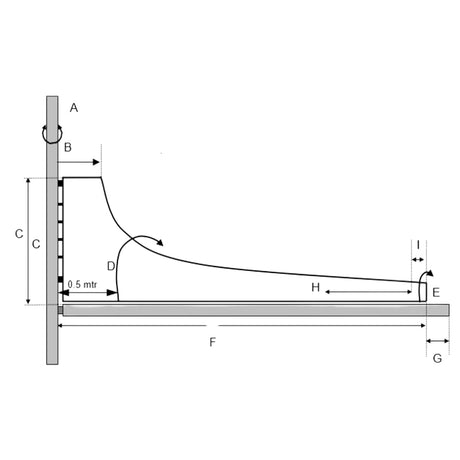

Mainsail covers 3

Parts marked "Sized for this boat" are chosen from the manufacturers' sizing guides (Harken, Forespar, Schaefer) using this boat's published dimensions. Check your boat's equipment before ordering.

Specifications

BuilderIMX
DesignerNiels Jeppesen
Years built2000-2004
Number built99
RigFractional Sloop
HullFin w/bulb & spade rudder
ConstructionFG w/Divinycell core
Length overall39.7 ft 12.1 m
Waterline length34.3 ft 10.5 m
Beam12.5 ft 3.8 m
Displacement14,991 lb 6,800 kg
Ballast5,291 lb 2,400 kg
I · foretriangle height52.52 ft 16.01 m
J · foretriangle base14.76 ft 4.5 m
P · mainsail luff49.88 ft 15.2 m
E · mainsail foot18.08 ft 5.51 m
Forestay length14.8 ft 4.5 m
100% jib area387.6 sq ft 36 m²
Mainsail area487 sq ft 45.2 m²
Jib + mainsail area874.6 sq ft 81.3 m²
Cruising spinnaker area658.9 sq ft 61.3 m²

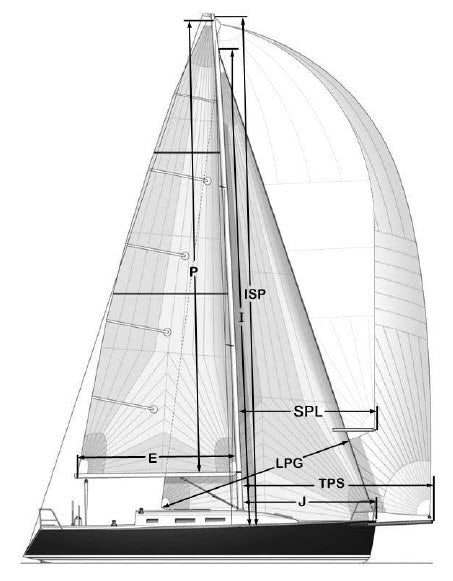

I 52.5 J 14.8 E 18.1 P 49.9
Sail plan drawn to scale from the rig dimensions above, in feet. Hull and keel are schematic.

Source: MAURIPRO Sailboat Data, updated 2026-07-01. Always confirm against your own boat.

More for the IMX 40

Other IMX models

Questions

What IMX 40 parts does MAURIPRO carry?

The IMX 40 page lists halyards and sheets made up to this boat's rig lengths, mainsail covers, sails, winches, blocks, travelers, genoa cars, boom vangs and spinnaker poles sized with manufacturer guides where the boat size allows. Prices and availability shown are live from our catalogue.

How do I know a part fits my IMX 40?

Halyards and sheets are made up to lengths computed from the IMX 40's published rig dimensions (I, J, P, E). Other parts are matched with manufacturer sizing guides and are labelled as sized for this boat. Fit can still depend on your boat's year, builder and rig, so check the product details or ask our technical team before you order.

Where can I find the IMX 40 rig dimensions?

Our IMX 40 Sailboat Data page lists the rig dimensions (I, J, P, E) and other published data we hold for this boat. Figures come from a sailboat database and may differ from your boat as built.
